74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

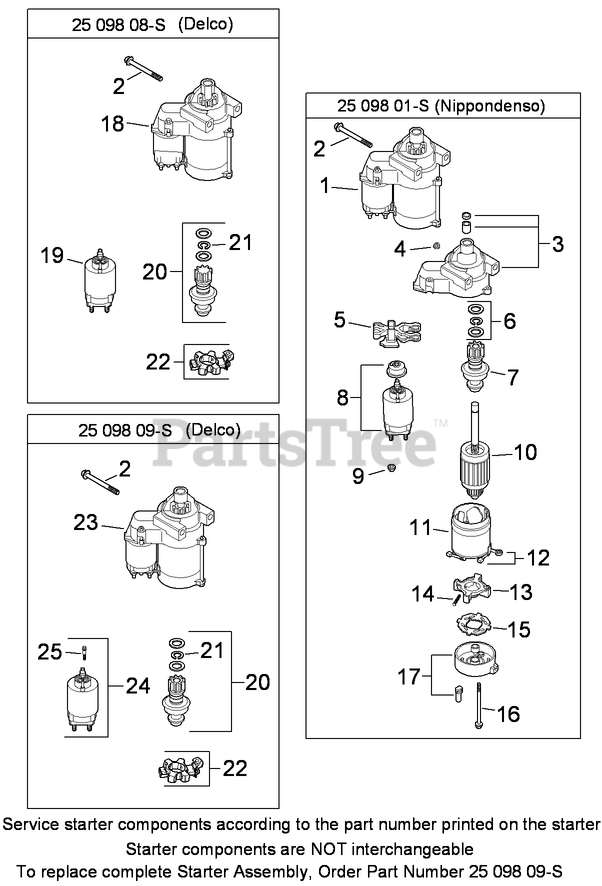

STARTER ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 098 01-S

STARTER ASM (SOLENOID SHIFT) (USE 25 098 08-S STARTER)
(Superseded to 25 098 09-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 11

0

3

Kohler 24 081 04-S

Cap-End, Drive

Note: Obtain parts from www.kohlerplus.com

$365.99

$

Usually ships in 2-5 days

0

4

Kohler 52 100 09-S

Nut

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

5

Kohler 12 090 10-S

LEVER-DRIVE, STARTER

Note: Obtain parts from www.kohlerplus.com

$73.99

$

Usually ships in 2-5 days

0

6

Kohler 24 755 84-S

STARTER REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$61.99

$

Usually ships in 2-5 days

0

7

Kohler 12 239 01-S

Drive-Pinion

Note: Obtain parts from www.kohlerplus.com

$291.99

$

Usually ships in 2-5 days

0

8

Kohler 52 435 02-S

Solenoid

Note: Obtain parts from www.kohlerplus.com

$565.99

$

Usually ships in 2-5 days

0

9

Kohler 52 100 10-S

Nut-Starter

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

10

Kohler 12 170 04-S

Armature-Starter

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 12 471 01-S

Frame w/Brushes ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 52 323 03-S

Holder-Brush

Note: Obtain parts from www.kohlerplus.com

$22.99

$

Usually ships in 2-5 days

0

13

Kohler 52 221 01-S

BRUSH AND SPRING KIT

Note: Obtain parts from www.kohlerplus.com

$130.99

$

Usually ships in 2-5 days

0

14

Kohler 52 089 09-S

Spring-Brush

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

15

Kohler 52 168 01-S

Insulator

Note: Obtain parts from www.kohlerplus.com

$35.99

$

Usually ships in 2-5 days

0

16

Kohler 52 211 05-S

Bolt-Thru

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

17

Kohler 24 301 01-S

Commutator-cap, end

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

18

Kohler 25 098 08-S

STARTER ASM (SOLENOID SHIFT) (USE 25 098 09-S STARTER)
(Superseded to 25 098 09-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Kohler 25 435 04-S

Solenoid Kit

Note: Obtain parts from www.kohlerplus.com

$144.99

$

In Stock, only 1 left!

0

20

Kohler 25 755 33-S

STARTER PINION DRIVE KIT (INCLUDES 21)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

21

Kohler 25 141 05-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

22

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Obtain parts from www.kohlerplus.com

$70.99

$

Usually ships in 2-5 days

0

23

Kohler 25 098 09-S

STARTER ASM (SOLENOID SHIFT) (INCLUDES 2, 20, 21, 22, 24, 25)
(Superseded to 25 098 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

24

Kohler 25 435 06-S

SOLENOID KIT (INCLUDES 25)

Note: Obtain parts from www.kohlerplus.com

$211.99

$

In Stock, only 1 left!

0

25

Kohler 25 086 113-S

SCREW-TORX HEAD, EXTERNAL

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0
