74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

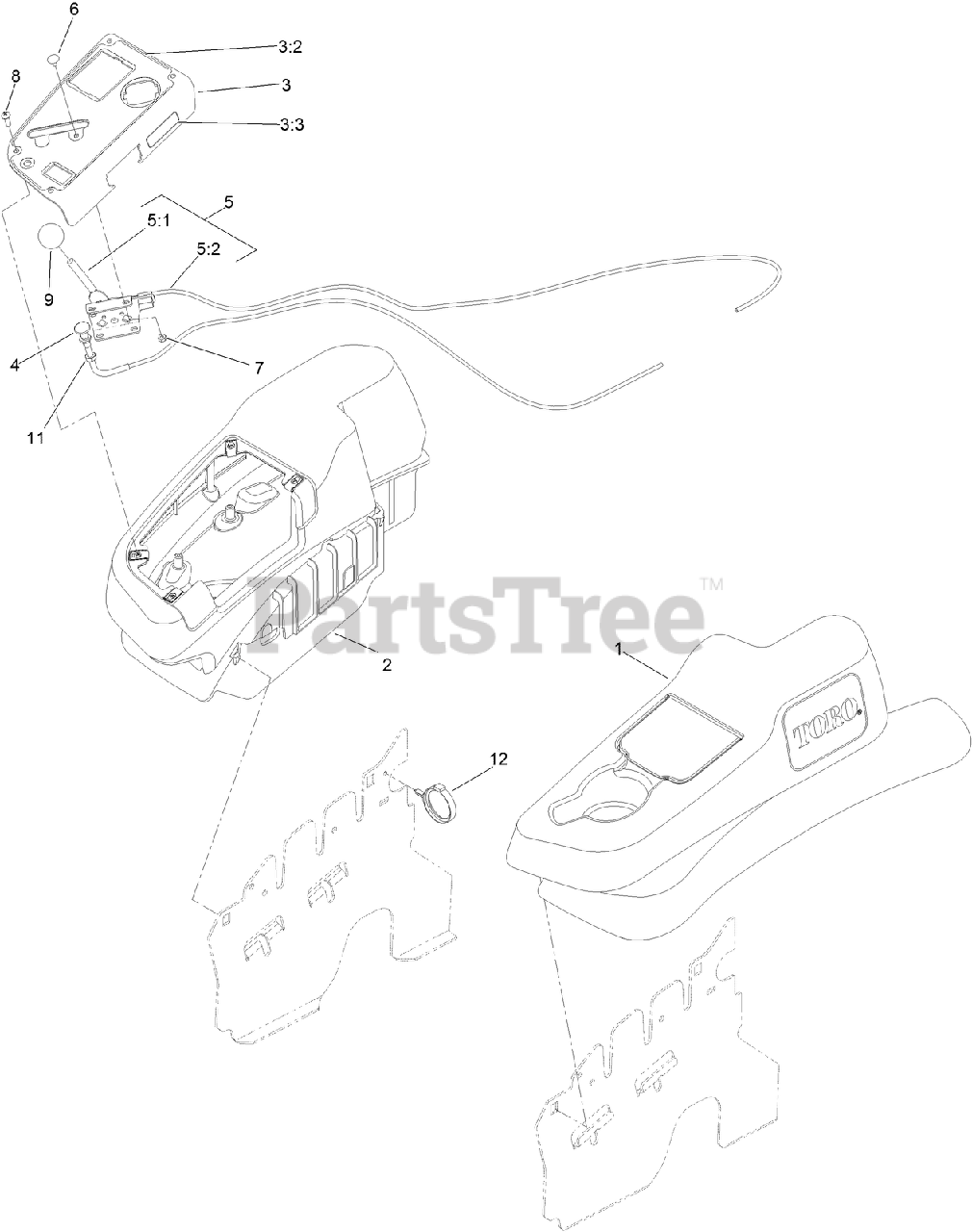

FENDER, CONSOLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-7403

LH NARROW FENDER/CONSOLE ASM

$316.99

$

Usually ships in 3-6 days

0

1

Toro 119-2602

CONSOLE-LH

$151.99

$

Usually ships in 3-6 days

0

2

Toro 115-7402

RH NARROW FENDER/CONSOLE ASM

$316.99

$

Usually ships in 3-6 days

0

3

Toro 114-9837

CONTROL PANEL ASM

$133.99

$

Usually ships in 3-6 days

0

3:2

Toro 120-5898

DECAL-CONTROL PANEL

$43.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4466

DECAL-FUSES

$6.99

$

Usually ships in 3-6 days

0

4

Toro 115-2753

CONTROL-CHOKE

$69.99

$

In Stock, Qty 9

0

5

Toro 110-5727

THROTTLE CONTROL ASM

$94.99

$

In Stock, only 2 left!

0

5:1

Toro 112-2334

LEVER-THROTTLE

$86.99

$

Usually ships in 3-6 days

0

5:2

Toro 110-5728

CABLE-THROTTLE
(Superseded to 110-5727)

$94.99

$

In Stock, only 2 left!

0

6

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, Qty 5

0

11

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

12

Toro 117-7817

CLAMP-HARNESS

$8.49

$

Usually ships in 3-6 days

0
