74903 CP - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

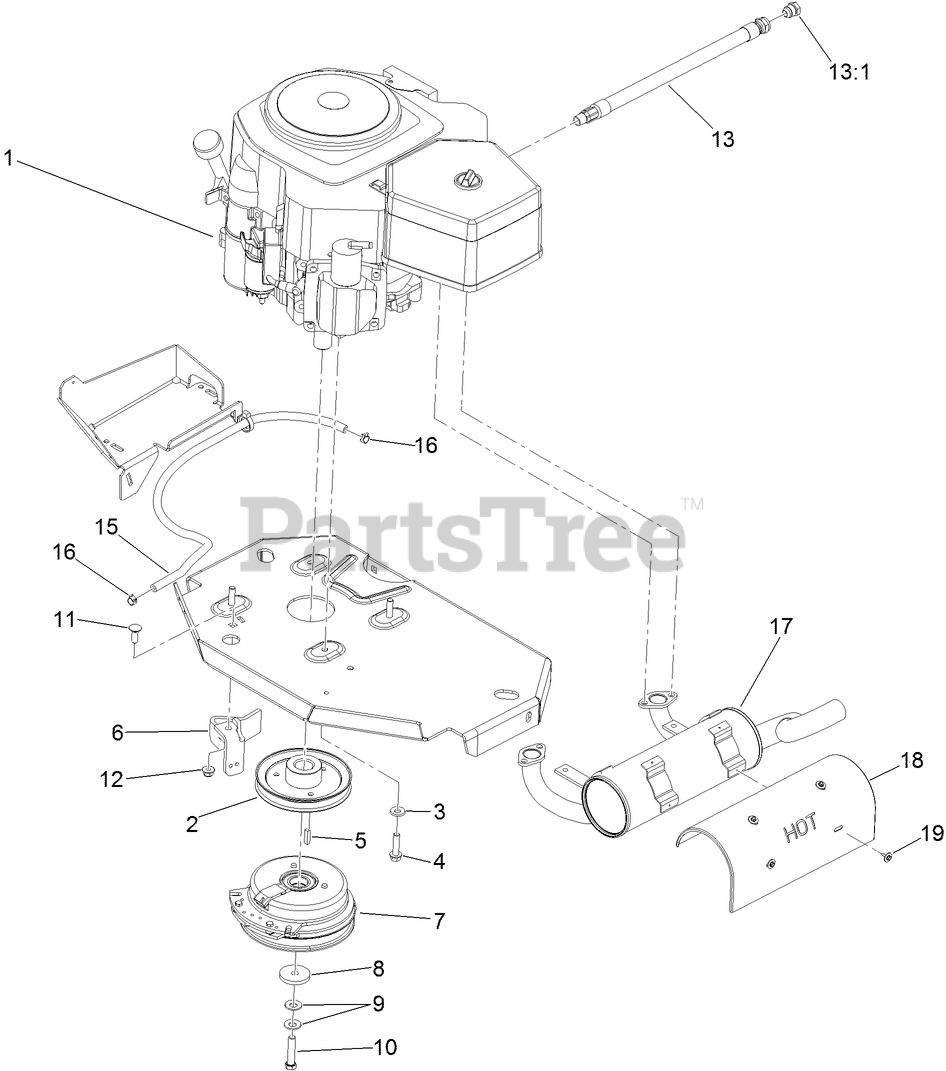

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, CV730-3123

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CV730-3123

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$53.99

$

In Stock, only 1 left!

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, Qty 13

0

6

Toro 116-2612-01

CLUTCH-ANCHOR

$54.99

$

In Stock, only 4 left!

0

7

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 16

0

8

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

10

Toro 109-9762

SCREW-HH W/LOCTITE

$5.49

$

In Stock, Qty 10

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-0013

OIL DRAIN HOSE ASM
(Superseded to 116-5316)

$53.99

$

In Stock, Qty 16

0

13:1

Toro 109-1012

PLUG

$7.99

$

In Stock, only 1 left!

0

15

Toro 109-0286

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 117-6151

MUFFLER

$361.99

$

Usually ships in 3-6 days

0

18

Toro 117-6152

GUARD-MUFFLER

$71.99

$

Usually ships in 3-6 days

0

19

Toro 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0
