74912 (ZX 4800) - Toro 48" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) 48 INCH DECK ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

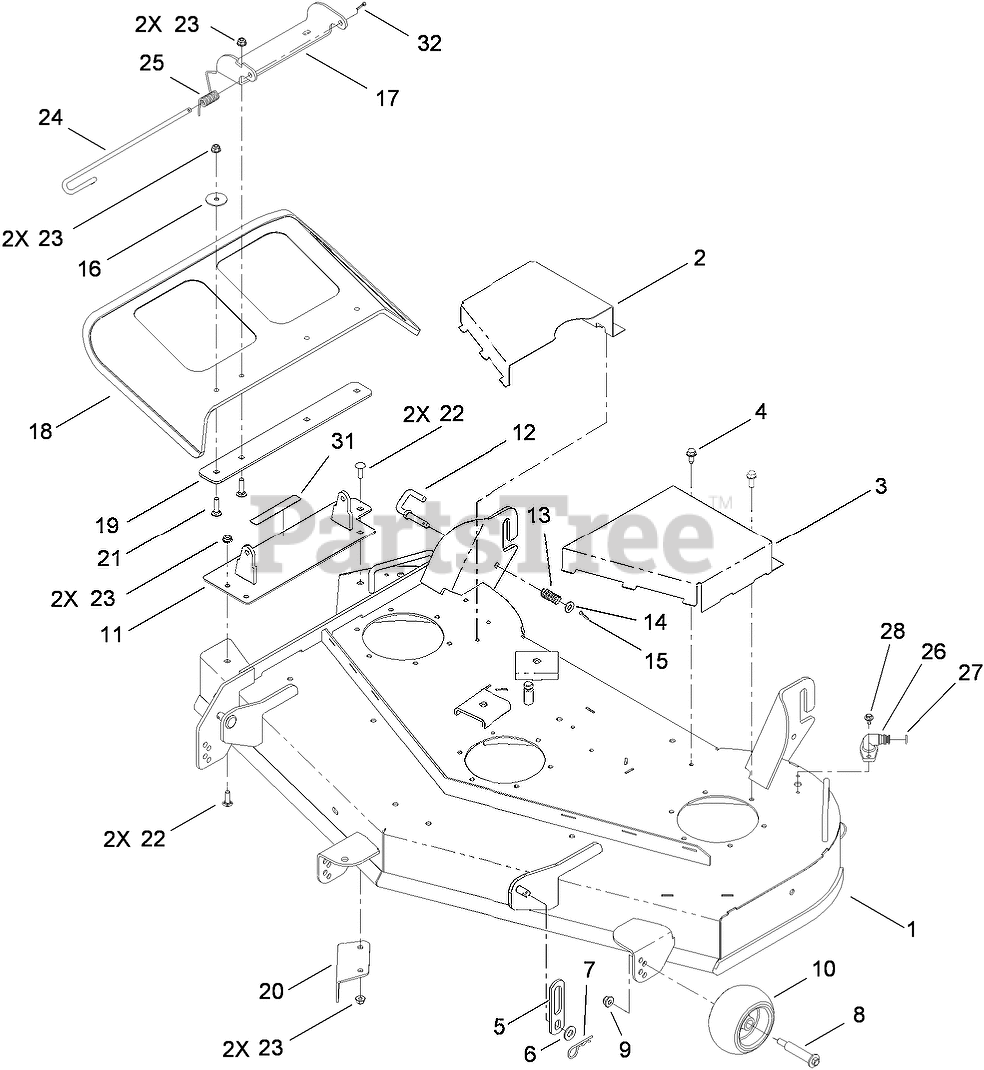

48 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3383

48 INCH DECK AND DECAL ASM

$2018.99

$

Usually ships in 3-6 days

0

2

Toro 117-7396-03

COVER-BELT, RH
(Superseded to 117-7396-05)

$46.99

$

Usually ships in 3-6 days

0

3

Toro 117-7397-03

COVER-BELT, LH
(Superseded to 117-7397-05)

$46.99

$

In Stock, only 1 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 115-2622

LINK-LIFT

$8.49

$

In Stock, only 2 left!

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

8

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

11

Toro 117-7367-03

PLATE

$79.99

$

Usually ships in 3-6 days

0

12

Toro 115-2470

PIN-LATCH

$15.99

$

Usually ships in 3-6 days

0

13

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 7

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

17

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$59.99

$

Usually ships in 3-6 days

0

18

Toro 117-1270

DEFLECTOR

$76.99

$

In Stock, only 1 left!

0

19

Toro 115-5048-03

PLATE-DEFLECTOR

$43.99

$

Usually ships in 3-6 days

0

20

Toro 117-7418-03

BAFFLE-CUTOFF

$21.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 109-8854

PIN-CHUTE

$15.99

$

In Stock, Qty 20+

0

25

Toro 115-9641

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

26

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 11

0

27

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 12

0

28

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

31

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, Qty 7

0

32

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
