74920 (ZX 4820) - Toro 48" Titan Zero-Turn Mower (SN: 311000001 - 311999999) (2011) ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

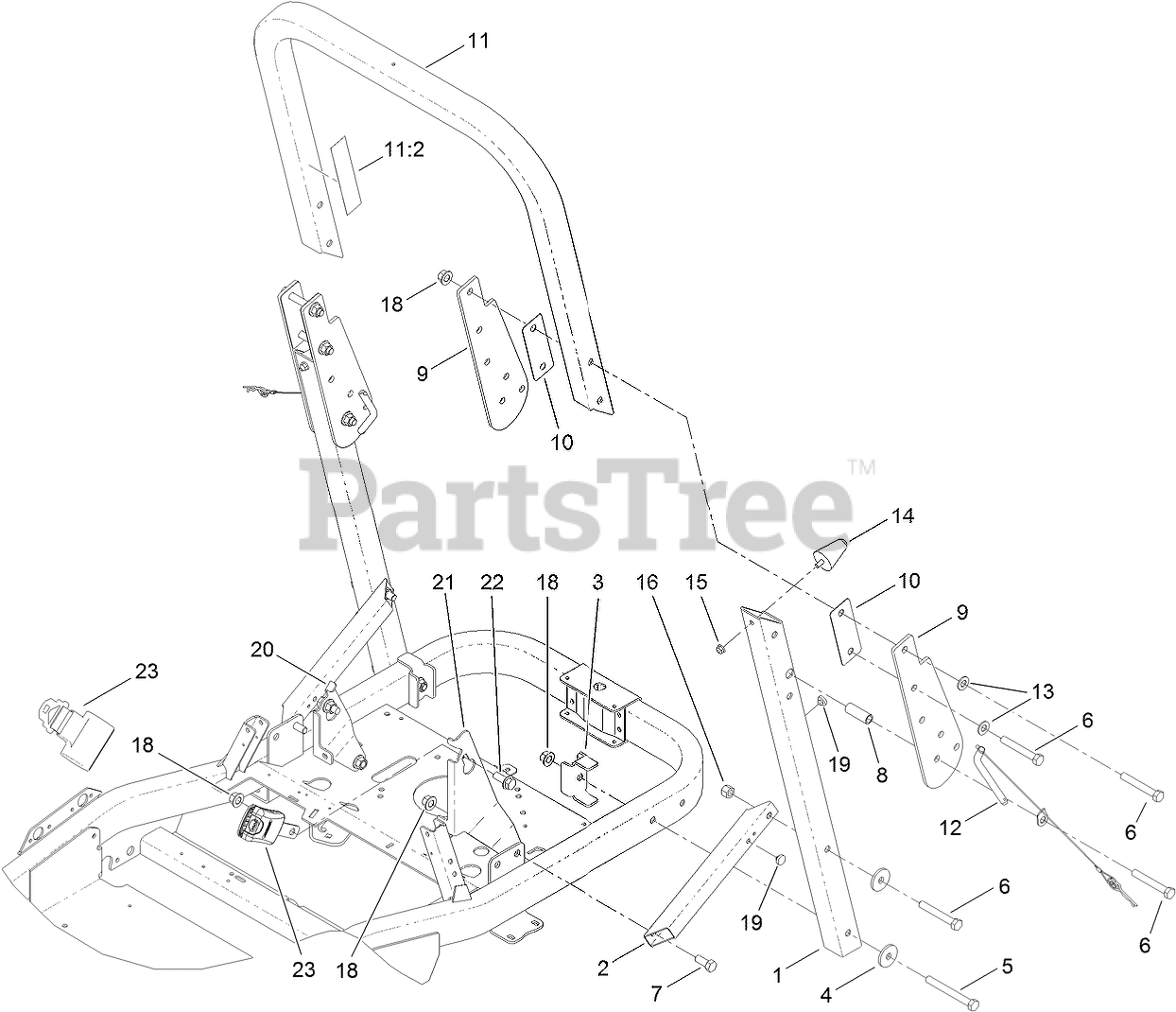

ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8906-03

TUBE-ROPS, LOWER

$

$

Not available

2

Toro 115-4962-03

TUBE-SUPPORT, ROPS

$50.99

$

Usually ships in 3-6 days

0

3

Toro 115-4963-03

BRACKET-REINFORCING

$20.99

$

Usually ships in 3-6 days

0

4

Toro 84-1560

WASHER-THRUST

$11.99

$

Usually ships in 3-6 days

0

5

Toro 325-18

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

7

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 109-6653

SPACER

$6.99

$

In Stock, only 2 left!

0

9

Toro 119-8911-03

BRACKET-PIVOT, ROPS

$45.99

$

Usually ships in 3-6 days

0

10

Toro 119-8926-03

SPACER-ROPS

$4.99

$

Usually ships in 3-6 days

0

11

Toro 119-8991

UPPER ROPS ASM

$

$

Not available

11:2

Toro 107-3069

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

12

Toro 119-8970

PIN-ROPS

$35.99

$

In Stock, only 2 left!

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-1925

BUMPER-RUBBER

$28.99

$

In Stock, Qty 11

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 1 left!

0

16

Toro 119-8969

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

18

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 13

0

19

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

20

Toro 115-5038-03

BRACKET-BELT, SEAT

$33.99

$

Usually ships in 3-6 days

0

21

Toro 115-5060-03

BRACKET-BELT, SEAT

$39.99

$

Usually ships in 3-6 days

0

22

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

23

Toro 109-9805

SEAT BELT KIT

$329.99

$

Usually ships in 3-6 days

0
