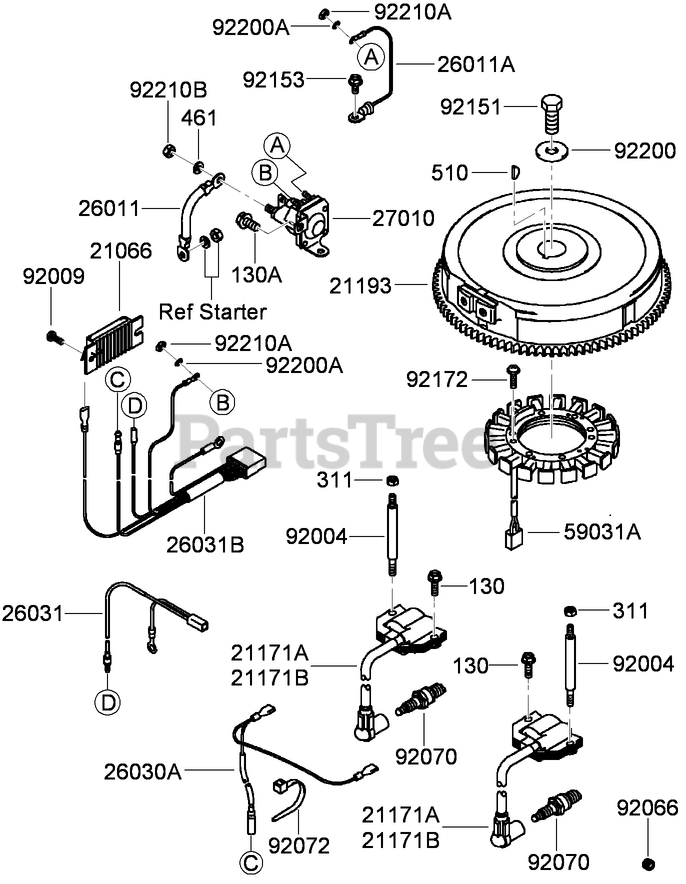

74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH680V-BS39 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH680V-BS39 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

311

Kawasaki 311AA0600

NUT-HEX (6MM)
(Superseded to 16011-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0600

WASHER-SPRING (6MM)
(Superseded to 92022-1580)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 9

0

21066

Kawasaki 21066-7011

Regulator-Voltage
(Superseded to 21066-7001)

Note: Obtain parts from www.kawpowerepc.com

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-7039

IGNITION COIL ASM (part can be used as substitute on the product and is supplied until stock is exhausted)
(Superseded to 21171-0745)

Note: Obtain parts from www.kawpowerepc.com

$106.99

$

In Stock, only 2 left!

0

21171B

Toro 21171-7049

IGNITION COIL ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21193

Toro 21193-7019

Flywheel ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

26011

Kawasaki 26011-7023

WIRE-LEAD
(Superseded to 26011-0911)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-7024

WIRE-LEAD (L=95)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0

26030A

Kawasaki 26030-7002

Harness

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 3 left!

0

26031

Kawasaki 26031-7003

HARNESS

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, Qty 7

0

26031B

Kawasaki 26031-7038

HARNESS

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-7003

SWITCH

Note: Obtain parts from www.kawpowerepc.com

$25.99

$

Usually ships in 2-5 days

0

59031A

Toro 59031-7014

COIL-CHARGING

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92004

Kawasaki 92004-7009

Stud
(Superseded to 92004-7026)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 16

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 11

0

92070

Kawasaki 92070-7004

SparkPlug (B P R4 E S (N G K) Solid)
(Superseded to BPR4ES)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 10

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92172

Kawasaki 92172-7018

SCREW (5X20)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 4 left!

0

92200A

Kawasaki 92200-7037

WASHER

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92210A

Kawasaki 92210-7030

NUT

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92210B

Kawasaki 92210-7034

NUT

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0
