74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

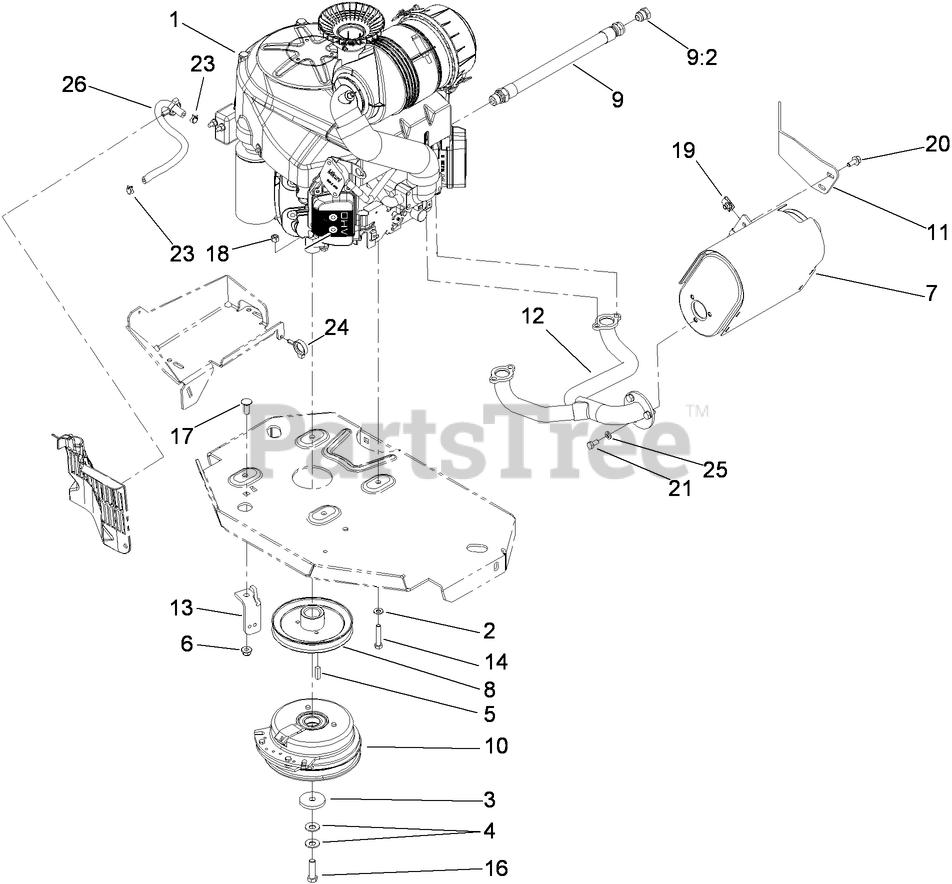

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Engine-Kawasaki, Fh680v-Bs39

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1

Engine-Kawasaki, Fh680v-Bs39

Note: Not serviced separately

$

$

Not available

2

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

3

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

4

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, Qty 12

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 109-9280

MUFFLER-ENGINE

$281.99

$

In Stock, only 1 left!

0

8

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$53.99

$

Usually ships in 3-6 days

0

9

Toro 109-4490

OIL DRAIN HOSE ASM
(Superseded to 116-4924)

$36.99

$

In Stock, Qty 9

0

9:2

Toro 109-1012

PLUG

$7.99

$

Usually ships in 3-6 days

0

10

Toro 109-9282

CLUTCH
(Superseded to 116-1620)

$359.99

$

In Stock, Qty 17

0

11

Toro 109-9254

BRACKET-MUFFLER
(Superseded to 116-1585)

$31.99

$

Usually ships in 3-6 days

0

12

Toro 109-9251

MANIFOLD-EXHAUST

$

$

Not available

13

Toro 109-8138-01

ANCHOR-CLUTCH

$47.99

$

Usually ships in 3-6 days

0

14

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

16

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 11

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 12

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

21

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0
