74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY (S/N UP TO FH680-C00797) KAWASAKI FH680V-BS39 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

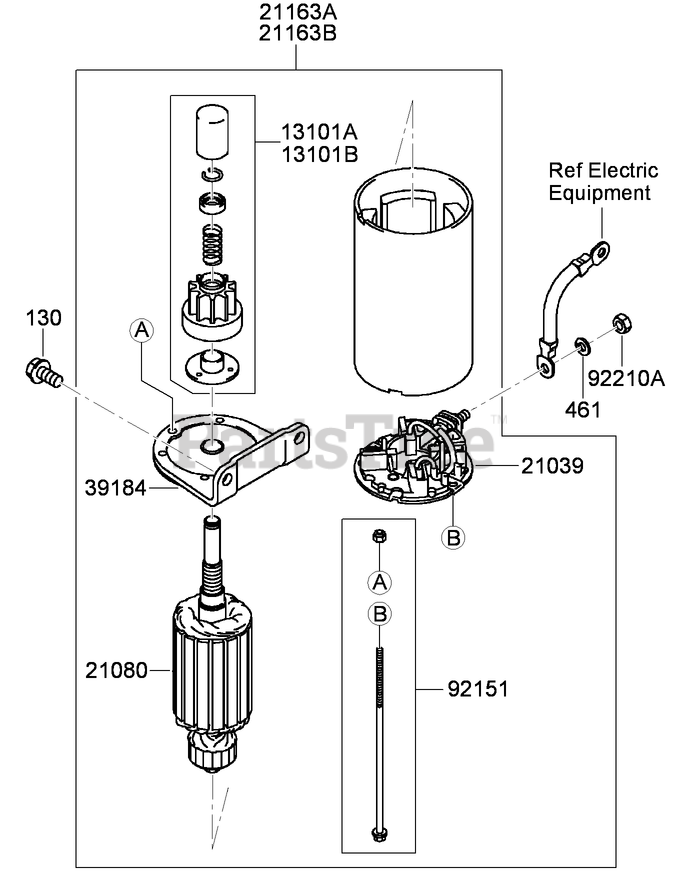

STARTER ASSEMBLY (S/N UP TO FH680-C00797) KAWASAKI FH680V-BS39 Parts Diagram

  • Title

130

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 7

0

461

Kawasaki 461DA0600

WASHER-SPRING (6MM)
(Superseded to 92022-1580)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0

13101A

Kawasaki 13101-7003

GEAR ASM (part can be used as substitute on the product and is supplied until stock is exhausted)
(Superseded to 13101-7001)

Note: Obtain parts from www.kawpowerepc.com

$118.99

$

In Stock, only 1 left!

0

13101B

Kawasaki 13101-7008

GEAR ASM
(Superseded to 99999-7080)

Note: Obtain parts from www.kawpowerepc.com

$258.99

$

In Stock, Qty 7

0

21039

Kawasaki 21039-7004

Brush
(Superseded to 99999-7080)

Note: Obtain parts from www.kawpowerepc.com

$258.99

$

In Stock, Qty 7

0

21080

Kawasaki 21080-7005

ARMATURE
(Superseded to 21080-7001)

Note: Obtain parts from www.kawpowerepc.com

$213.99

$

Usually ships in 2-5 days

0

21163A

Toro 21163-7022

STARTER-ELECTRIC (part can be used as substitute on the product and is supplied until stock is exhausted)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21163B

Toro 21163-7029

STARTER-ELECTRIC

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

39184

Kawasaki 39184-7004

BRACKET ASM
(Superseded to 39184-7001)

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-7013

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92210A

Kawasaki 92210-7034

NUT

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0
