74923 (6000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 999999999) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

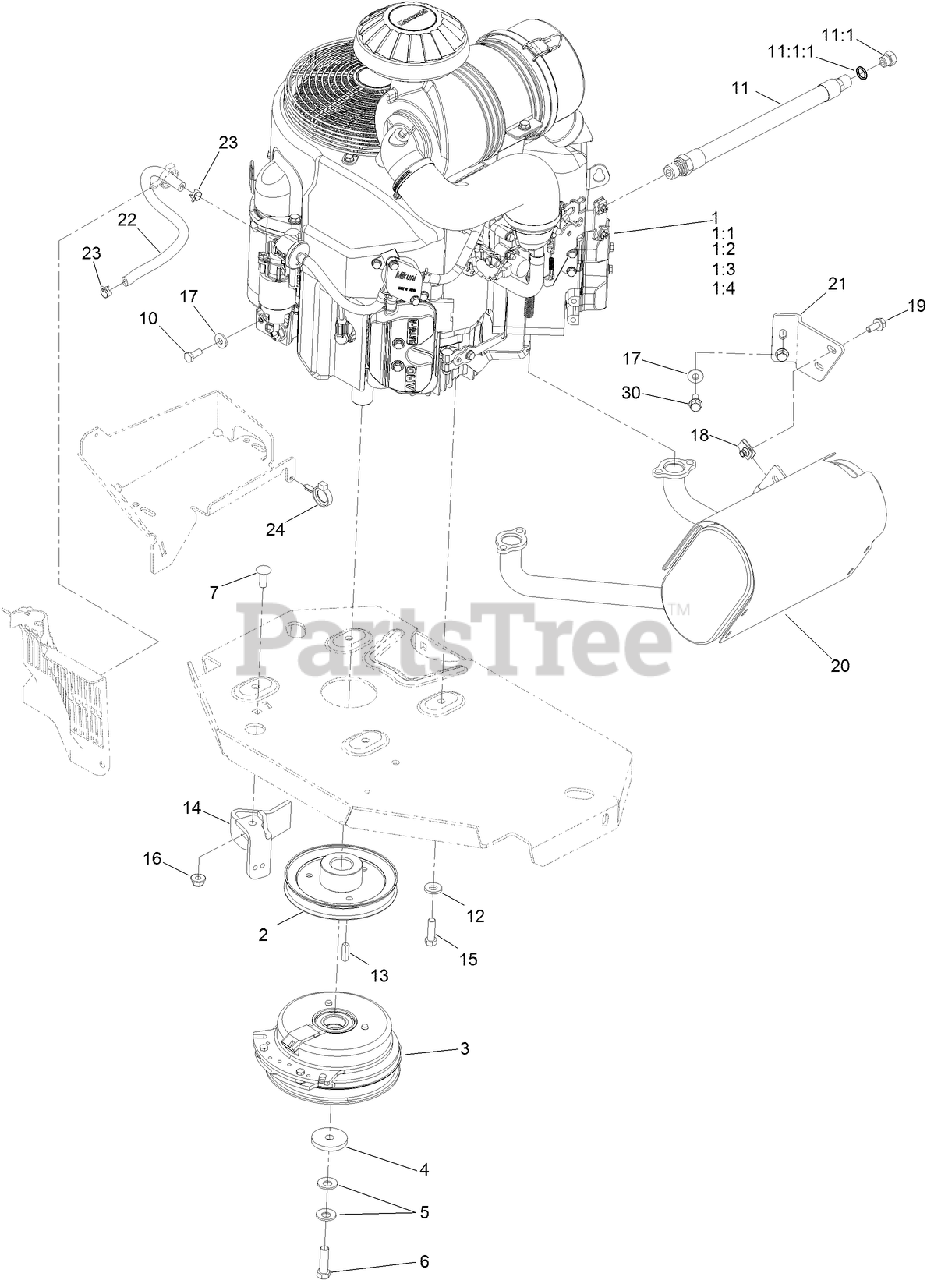

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX751V-S07-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX751V-S07-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

KAWASAKI 49065-2078 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:1

KAWASAKI 49065-2078 ENGINE OIL FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:2

KAWASAKI 49019-7001 FUEL FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:2

KAWASAKI 49019-7001 FUEL FILTER

Note: Not serviced separately

$

$

Not available

1:3

KAWASAKI 11013-7039 SAFETY FILTER

Note: Not serviced separately

$

$

Not available

1:3

KAWASAKI 11013-7039 SAFETY FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:4

KAWASAKI 11013-7038 AIR FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:4

KAWASAKI 11013-7038 AIR FILTER

Note: Not serviced separately

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$53.99

$

In Stock, only 1 left!

0

3

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 20+

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 18

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 3 left!

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

$36.99

$

In Stock, Qty 7

0

11:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

11:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 1-807259

KEY

$2.99

$

In Stock, Qty 16

0

14

Toro 116-2612-01

CLUTCH-ANCHOR

$54.99

$

In Stock, only 4 left!

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

18

Toro 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

0

19

Toro 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

20

Toro 116-1712

MUFFLER

$216.99

$

Usually ships in 3-6 days

0

21

Toro 116-0203

BRACKET-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

22

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

30

Toro 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0
