74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) BLOWER HOUSING ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

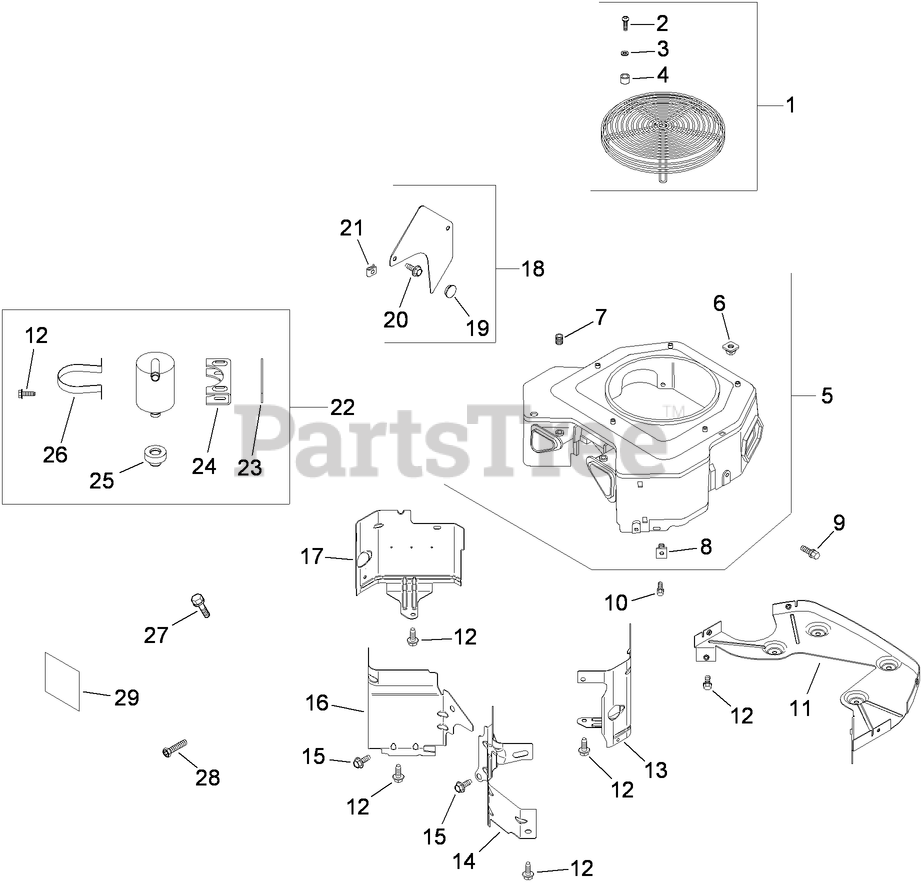

BLOWER HOUSING ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 24 755 94-S

Guard Kit (INCLUDES 2-4)

Note: Obtain parts from www.kohlerplus.com

$86.99

$

In Stock, only 2 left!

0

2

Kohler 25 086 160-S

SCREW-SEMS

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

3

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 4 left!

0

4

Kohler 24 112 09-S

Spacer
(Superseded to 25 112 30-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 4 left!

0

5

Kohler 24 027 125-S

BLOWER HOUSING ASM (INCLUDES 6-8)
(Superseded to 24 027 449-S)

Note: Obtain parts from www.kohlerplus.com

$78.99

$

Usually ships in 2-5 days

0

6

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

7

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

10

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

11

Kohler 24 146 55-S

PLATE-BACKING
(Superseded to 24 146 59-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 2 left!

0

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

13

Kohler 24 063 88-S

BAFFLE-BARREL, CYLINDER (No. 2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

In Stock, only 1 left!

0

14

Kohler 24 063 90-S

BAFFLE-VALLEY, CYLINDER (NO.2 SIDE)
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 2 left!

0

15

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 13

0

16

Kohler 24 063 89-S

BAFFLE-VALLEY, CYLINDER (NO.1 SIDE)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 4 left!

0

17

Kohler 24 063 85-S

BARREL-CYLINDER (No.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

18

Kohler 25 755 20-S

Access Cover Kit (INCLUDES 19-21)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

19

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

20

Kohler 25 086 158-S

SCREW-FLANGED, THREAD FORMING (M6X1.0X11)
(Superseded to 25 086 406-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

21

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

22

Kohler 24 755 57-S

BREATHER VALVE COVER KIT (INCLUDES 9, 12, 23-26)
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 5

0

23

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 5

0

24

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

25

Kohler 25 313 03-S

GROMMET-RUBBER

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 16

0

26

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 5

0

27

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

28

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

29

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, only 3 left!

0
