74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) FUEL SYSTEM ASSEMBLY KOHLER CV730-3118 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

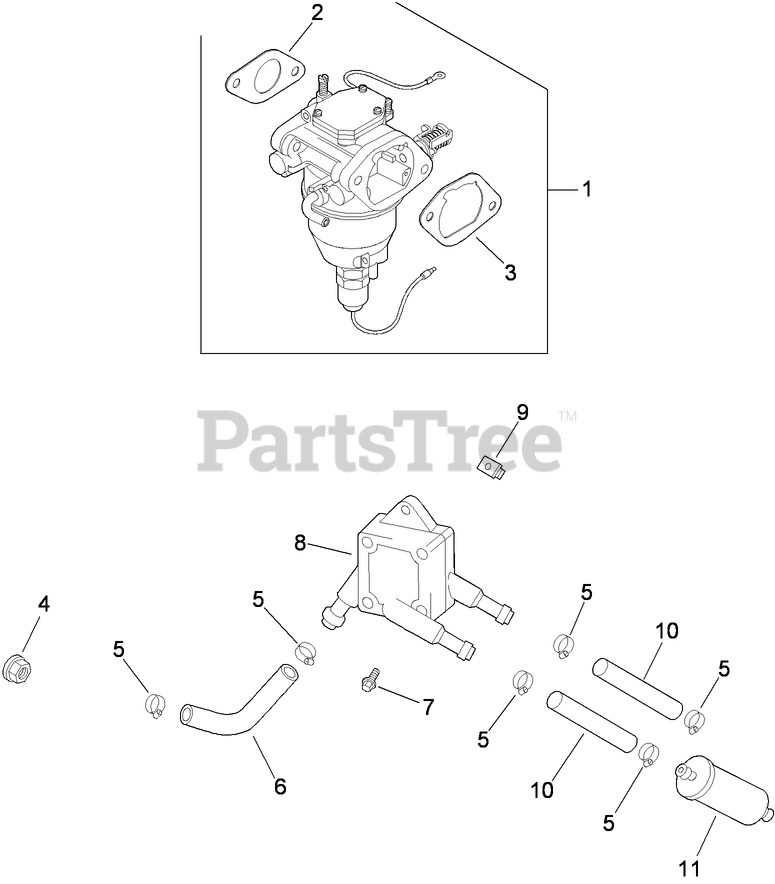

FUEL SYSTEM ASSEMBLY KOHLER CV730-3118 Parts Diagram

  • Title

1

Kohler 24 853 92-S

CARBURETOR w/GASKETS (INCLUDES 2, 3)
(Superseded to 24 853 317-S)

Note: Obtain parts from www.kohlerplus.com

$762.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 15

0

4

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 6

0

5

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

6

Kohler 24 353 12-S

LINE-FLEX (11.0 PUMP-PULSE) (AIR ONLY)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

10

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 9

0

11

Kohler 24 050 10-S

FILTER-FUEL
(Superseded to 24 050 13-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 20+

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$98.99

$

In Stock, only 2 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Not illustrated

$98.99

$

In Stock, only 2 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Not illustrated

$202.99

$

In Stock, only 1 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$202.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$71.99

$

In Stock, only 2 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Not illustrated

$71.99

$

In Stock, only 2 left!

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Not illustrated

$147.99

$

In Stock, Qty 5

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$147.99

$

In Stock, Qty 5

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Not illustrated

$250.99

$

In Stock, only 1 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$250.99

$

In Stock, only 1 left!

0

Kohler 24 234 02-S

Bowl-float

Note: Obtain parts from www.kohlerplus.com

$203.99

$

Usually ships in 2-5 days

0

Kohler 24 234 02-S

Bowl-float

Note: Not illustrated

$203.99

$

Usually ships in 2-5 days

0

Kohler 24 431 02-S

Sleeve-Insulating (14.0)

Note: Not illustrated

$6.49

$

In Stock, only 2 left!

0

Kohler 24 431 02-S

Sleeve-Insulating (14.0)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0
