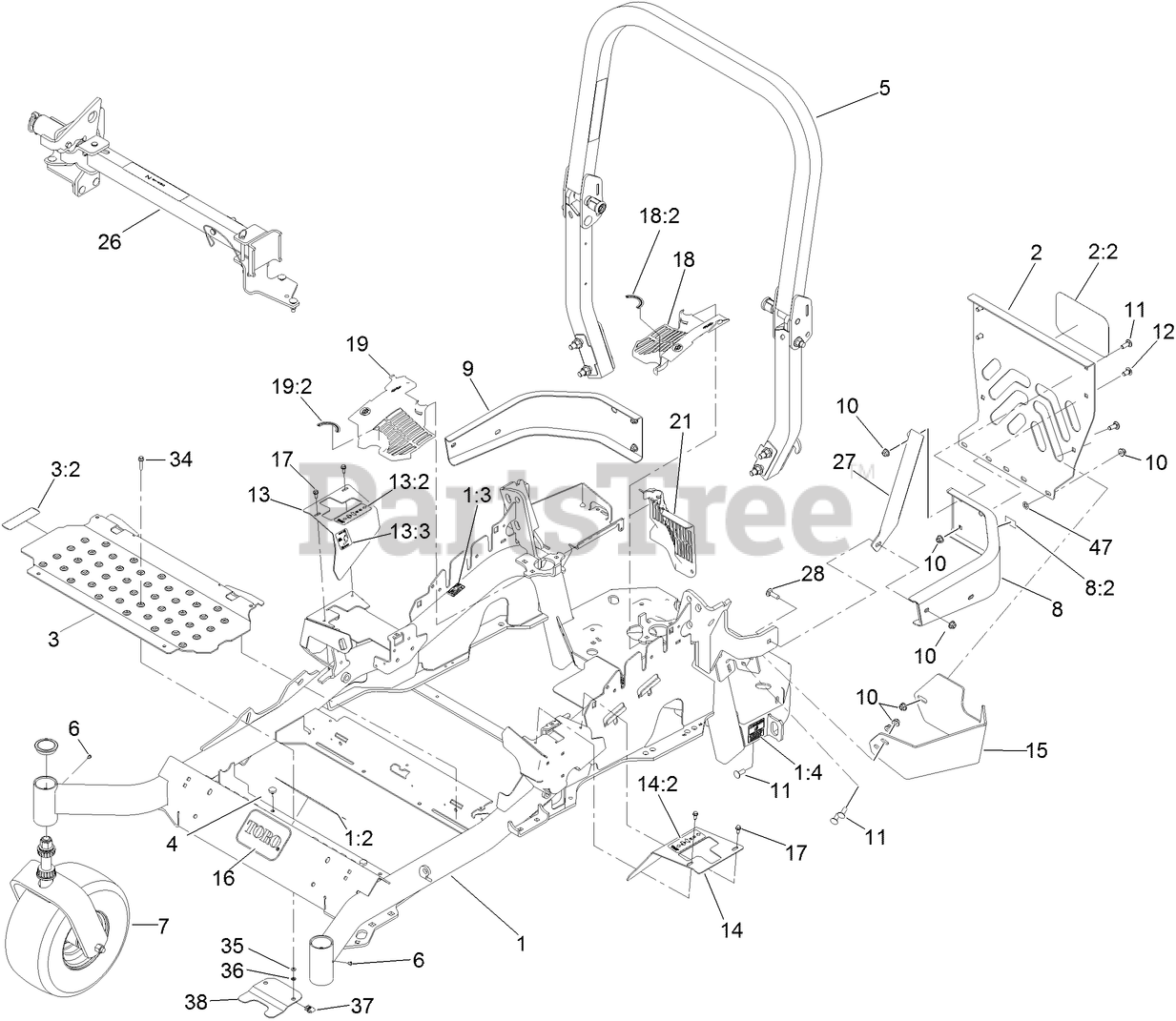

74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) FRAME, CASTER AND Z STAND ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

FRAME, CASTER AND Z STAND ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 116-6368

MAIN FRAME ASM
(Superseded to 131-7671)
Usually ships in 5 to 8 days

$

$2443.23

0

1:2

Toro Part# 117-3888

DECAL-DANGER SLOPE W/ROPS
Usually ships in 5 to 8 days

$

$2.76

0

1:3

Toro Part# 106-5517

DECAL-WARNING
Usually ships in 1 day

$

$2.55

0

1:4

Toro Part# 106-2655

DECAL-HAZARD, PINCHED FINGER
Usually ships in 5 to 8 days

$

$1.10

0

2

Toro Part# 115-7410

REAR GUARD ASM
Usually ships in 1 day

$

$137.36

0

2:2
Usually ships in 1 day

$

$27.50

0

3

Toro Part# 117-0915

FLOORPAN ASM
Usually ships in 5 to 8 days

$

$159.05

0

3:2

Toro Part# 112-9028

DECAL-MISSING, COVER
Usually ships in 5 to 8 days

$

$15.09

0

Usually ships in 1 day

$

$4.17

0

5
Usually ships in 5 to 8 days

$

$610.79

0

Usually ships in 1 day

$

$3.43

0

7

Part#

Caster Wheel ASM

Note: Not serviced separately

Usually ships same day

Not available

$

$

8

Toro Part# 117-3829

LH REAR BUMPER ASM
Usually ships in 5 to 8 days

$

$159.05

0

8:2

Toro Part# 106-5517

DECAL-WARNING
Usually ships in 1 day

$

$2.55

0

Usually ships in 5 to 8 days

$

$155.39

0

10

Toro Part# 104-8301

NUT-HF, NI
Usually ships in 1 day

$

$0.98

0

11

Toro Part# 3231-22

SCREW-CARR
Usually ships in 1 day

$

$2.72

0

12

Toro Part# 3231-21

SCREW-CARR
Usually ships in 1 day

$

$1.21

0

13

Toro Part# 116-5898

RH MOTION CONTROL COVER ASM
Usually ships in 5 to 8 days

$

$39.14

0

13:2

Toro Part# 99-8936

DECAL-CONTROL, MOTION
Usually ships in 1 day

$

$15.34

0

13:3

Toro Part# 116-5988

DECAL-PARK BRAKE, CE
Usually ships in 5 to 8 days

$

$9.54

0

14

Toro Part# 117-3831

LH MOTION CONTROL COVER ASM
Usually ships in 5 to 8 days

$

$52.60

0

14:2

Toro Part# 99-8936

DECAL-CONTROL, MOTION
Usually ships in 1 day

$

$15.34

0

15

Toro Part# 119-0396

MUFFLER-GUARD, ASM
Usually ships same day

Currently unavailable

$

$

15:2

Toro Part# 119-6651

FOIL-TAPE, GUARD

Note: Not illustrated

Usually ships in 5 to 8 days

$

$23.94

0

Usually ships in 1 day

$

$16.16

0

17
Usually ships in 1 day

$

$3.98

0

18

Toro Part# 117-3838

LH HYDRO GUARD ASM
Usually ships in 5 to 8 days

$

$64.16

0

18:2

Toro Part# 117-3811

DECAL-HYDRO OIL
Usually ships in 5 to 8 days

$

$11.77

0

19

Toro Part# 117-3839

RH HYDRO GUARD ASM
Usually ships in 5 to 8 days

$

$64.16

0

19:2

Toro Part# 117-3811

DECAL-HYDRO OIL
Usually ships in 5 to 8 days

$

$11.77

0

21

Toro Part# 109-9058

GUARD-HYDRO, REAR (RH)
Usually ships in 1 day

$

$18.35

0

26

Part#

Z STAND ASM

Note: Not serviced separately

Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$49.42

0

28

Toro Part# 3231-25

BOLT-CARR
Usually ships in 1 day

$

$1.12

0

34

Toro Part# 3234-21

SCREW-HHF
Usually ships in 5 to 8 days

$

$1.85

0

35

Toro Part# 3256-60

WASHER-FLAT
Usually ships in 5 to 8 days

$

$2.40

0

36

Toro Part# 106-8737

NUT-RETAINER
Usually ships in 1 day

$

$1.14

0

Usually ships in 1 day

$

$1.47

0

38

Toro Part# 119-0395-03

ADAPTER-CAPTIVE
Usually ships in 5 to 8 days

$

$15.89

0

47
Usually ships in 1 day

$

$0.91

0
