74923 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) SEAT MOUNTING ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

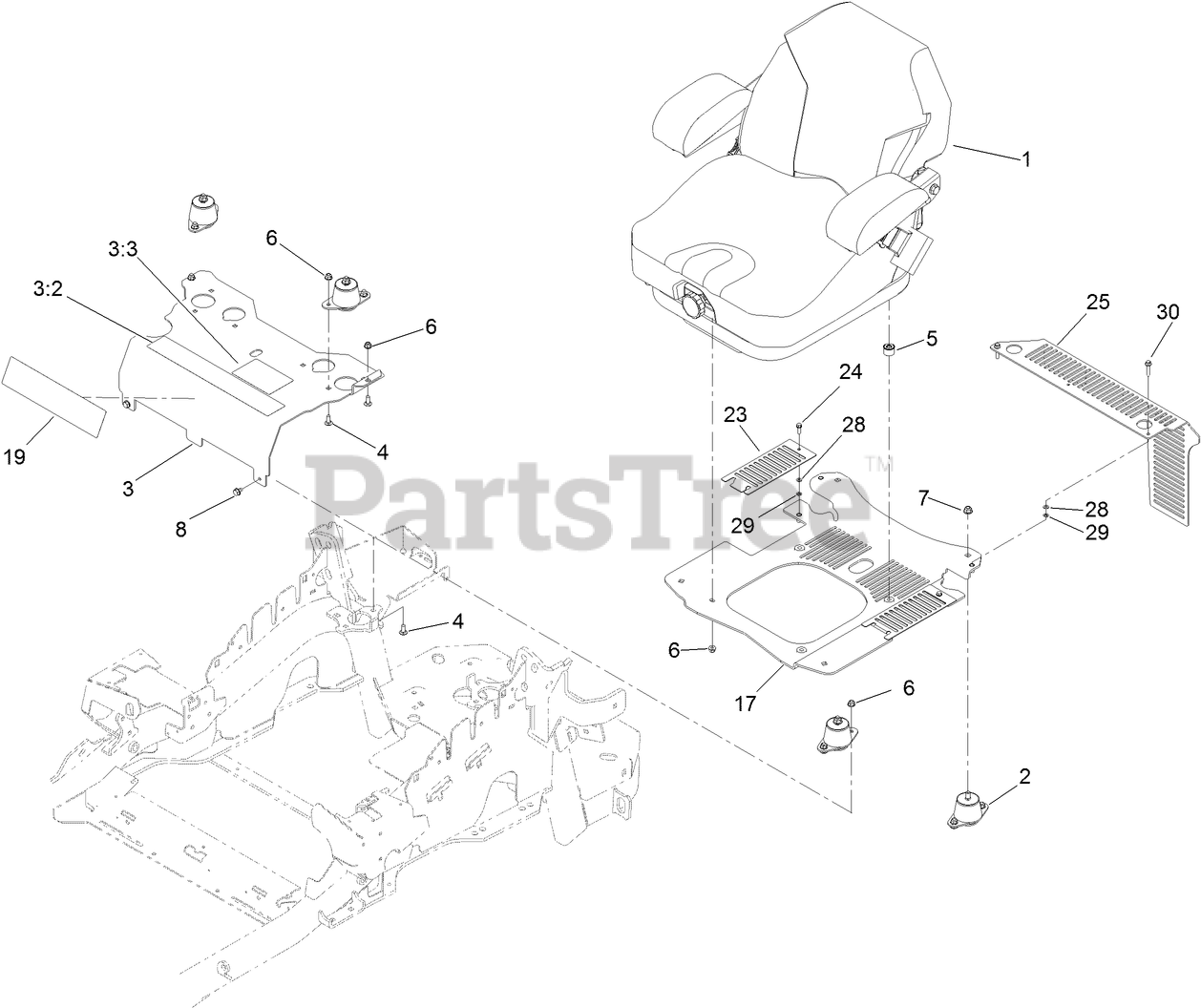

SEAT MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 125-3107

SUSPENSION SEAT ASM
(Superseded to 121-7595)

$1124.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$72.99

$

In Stock, only 2 left!

0

3

Toro 116-2324

MOUNT-SEAT

$361.99

$

Usually ships in 3-6 days

0

3:2

Toro 114-4468

DECAL-CONSOLE

$56.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4465

DECAL-SERVICE AID

$31.99

$

Usually ships in 3-6 days

0

4

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-9329

SPACER

$12.99

$

Usually ships in 3-6 days

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

17

Toro 117-0910

SEAT BASE ASM

$387.99

$

Usually ships in 3-6 days

0

19

Toro 120-5893

DECAL

$14.99

$

In Stock, only 2 left!

0

23

Toro 117-0901-03

COVER

$33.99

$

Usually ships in 3-6 days

0

24

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

25

Toro 117-0909-03

GUARD-CE

$

$

Not available

28

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

29

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

30

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
