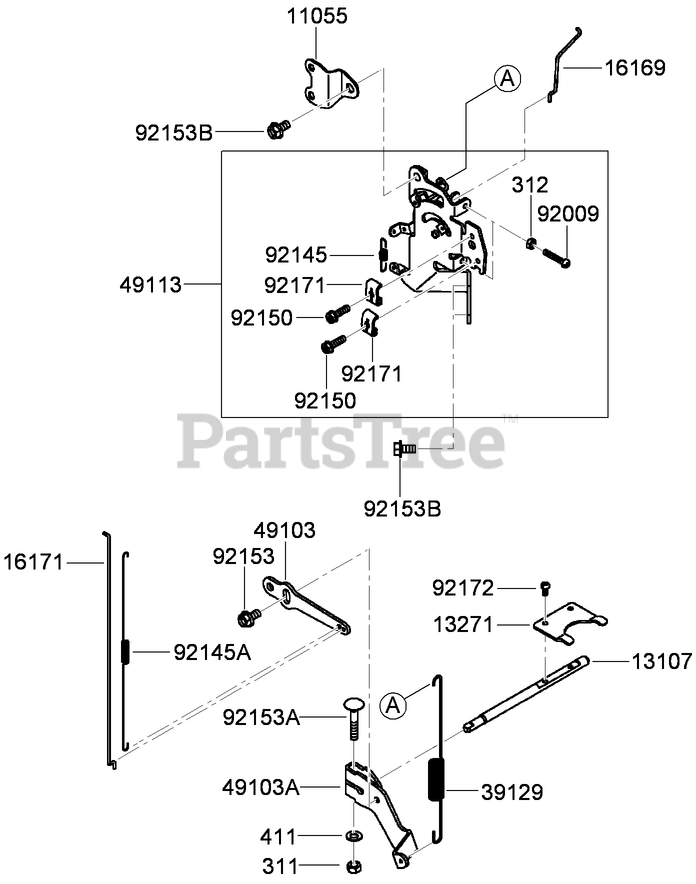

74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

  • Title

311

Kawasaki 311AA0600

NUT-HEX (6MM)
(Superseded to 16011-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

312

Kawasaki 312AA0500

NUT-HEX (5MM)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 8

0

411

Kawasaki 411AA0600

WASHER-PLAIN (6MM)
(Superseded to 411B0600)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

Usually ships in 2-5 days

0

11055

Kawasaki 11055-7001

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 1 left!

0

13107

Kawasaki 13107-7044

SHAFT-GOVERNOR
(Superseded to 13107-7047)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-7038

PLATE

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 5

0

16169

Kawasaki 16169-7019

LINK-CHOKE
(Superseded to 16169-7020)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

16171

Kawasaki 16171-7020

LINK
(Superseded to 16171-0032)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 10

0

39129

Kawasaki 39129-7020

SPRING-GOVERNOR
(Superseded to 49113-6015)

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

In Stock, only 1 left!

0

49103

Kawasaki 49103-7012

ARM-GOVERNOR

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 7

0

49103A

Kawasaki 49103-7013

ARM-GOVERNOR
(Superseded to 49103-7018)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 8

0

49113

Kawasaki 49113-7046

PANEL-CONTROL
(Superseded to 49113-7060)

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2381

Screw (5X30)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 5

0

92145

Kawasaki 92145-7044

SPRING

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 5

0

92145A

Kawasaki 92145-7055

SPRING
(Superseded to 92145-1647)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92150

Kawasaki 92150-2182

BOLT (5X18)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0009

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 4 left!

0

92153A

Kawasaki 92153-7033

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92171

Kawasaki 92171-7018

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7033

SCREW (4X8)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0
