74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

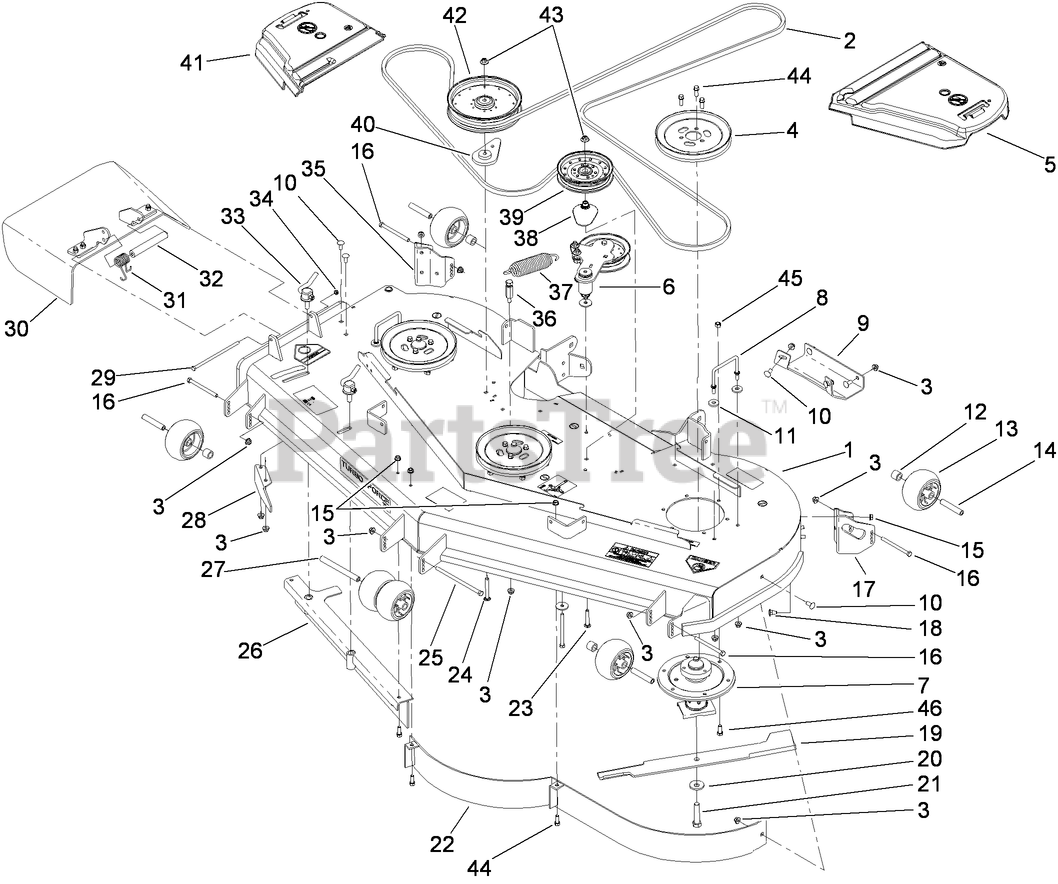

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-4195

DECK DECAL ASM
(Superseded to 136-8636)

$3020.99

$

Usually ships in 3-6 days

0

2

Toro 114-5859

BELT-V

$182.99

$

In Stock, only 4 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-7733

Pulley

$72.99

$

In Stock, only 2 left!

0

5

Toro 109-6938

COVER-BELT, LH

$94.99

$

In Stock, Qty 13

0

6

ARM-IDLER

Note: Not serviced separately

$

$

Not available

7

Toro 110-3933

SPINDLE ASM
(Superseded to 119-8598)

$891.99

$

Usually ships in 3-6 days

0

8

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 7

0

9

Toro 112-4230-01

PLATE-SKID

$80.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

11

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

14

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

15

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

17

Toro 106-7354-01

MOUNT-WHEEL, LH

$103.99

$

In Stock, only 2 left!

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 105-7784-03

BLADE-HI FLOW, 24.5 INCH

$45.99

$

In Stock, Qty 20+

0

20

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

21

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 20+

0

22

Toro 114-5843-01

BAFFLE

$269.99

$

In Stock, only 1 left!

0

23

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

24

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, Qty 20+

0

26

Toro 105-7669-01

BAFFLE

$264.99

$

In Stock, only 1 left!

0

27

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

28

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

29

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

30

Toro 108-2792

RUBBER DEFLECTOR ASM

$221.99

$

In Stock, only 1 left!

0

31

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, Qty 7

0

32

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

33

Toro 107-1664

LEVER ASM

$72.99

$

In Stock, only 4 left!

0

34

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

35

Toro 106-7355-01

MOUNT-WHEEL, RH

$103.99

$

Usually ships in 3-6 days

0

36

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

37

Toro 116-0133

EXTENSION-SPRING
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 20+

0

38

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

39

Toro 114-5895

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, Qty 14

0

40

Toro 109-9416

SPACER-IDLER

$67.99

$

In Stock, Qty 11

0

41

Toro 116-0094

COVER-BELT, RH

$84.99

$

In Stock, Qty 18

0

42

Toro 109-8590

PULLEY-IDLER

$188.99

$

In Stock, Qty 10

0

43

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

44

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

45

Toro 33025-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

46

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0
