74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

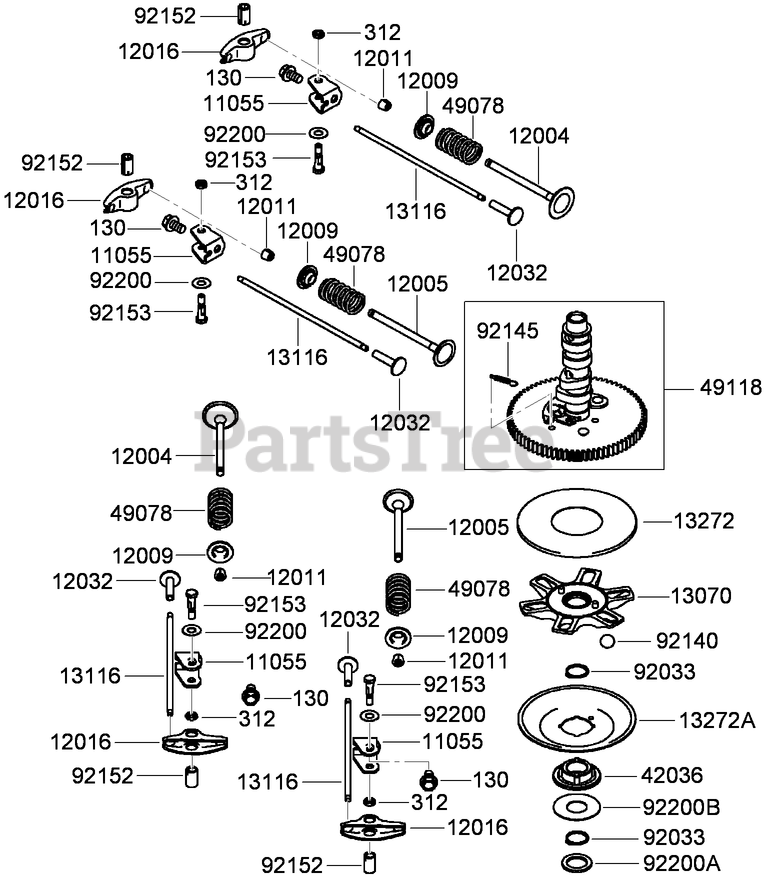

VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FX801V-AS04 Parts Diagram

  • Title

130

Kawasaki 130AA0814

BOLT-FLANGED (8X14)
(Superseded to 130B0814)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

312

Kawasaki 312AA0600

NUT-HEX (6MM)
(Superseded to 43032-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

11055

Kawasaki 11055-7009

BRACKET
(Superseded to 11054-7018)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 12

0

12004

Kawasaki 12004-7007

VALVE-INTAKE
(Superseded to 12004-7010)

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, only 2 left!

0

12005

Kawasaki 12005-7008

VALVE-EXHAUST
(Superseded to 12005-7011)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

12009

Kawasaki 12009-7002

RETAINER-SPRING, VALVE
(Superseded to 12009-7004)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 7

0

12011

Kawasaki 12011-2052

Collet

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 17

0

12016

Kawasaki 12016-7016

ARM-ROCKER
(Superseded to 12016-0037)

Note: Obtain parts from www.kawpowerepc.com

$16.99

$

In Stock, only 4 left!

0

12032

Kawasaki 12032-7001

Tappet

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 14

0

13070

Kawasaki 13070-7016

GUIDE
(Superseded to 13070-0758)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, only 1 left!

0

13116

Kawasaki 13116-7006

ROD-PUSH

Note: Obtain parts from www.kawpowerepc.com

$16.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7002

PLATE

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

Usually ships in 2-5 days

0

13272A

Kawasaki 13272-7003

PLATE-GOVERNOR

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, only 1 left!

0

42036

Kawasaki 42036-7019

SLEEVE
(Superseded to 42036-7018)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

Usually ships in 2-5 days

0

49078

Kawasaki 49078-7005

SPRING-VALVE, ENGINE
(Superseded to 49078-7008)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 3 left!

0

49118

Kawasaki 49118-7021

CAMSHAFT
(Superseded to 49118-7026)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92033

Kawasaki 92033-7012

RING-SNAP (DIA 18.5)
(Superseded to 92033-0728)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

Usually ships in 2-5 days

0

92140

Kawasaki 92140-7005

BALL

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 2 left!

0

92152

Kawasaki 92152-7012

COLLAR
(Superseded to 92152-7022)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 12

0

92153

Kawasaki 92153-7100

BOLT (6X29.5)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-2151

WASHER (8.1X18X0.5)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-7044

WASHER (20.3X29X2.28)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 4 left!

0

92200B

Kawasaki 92200-7045

WASHER (20X46X0.91)
(Superseded to 92200-0946)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

Usually ships in 2-5 days

0
