74927 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) FUEL TANK ASSEMBLY NO. 109-9357 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

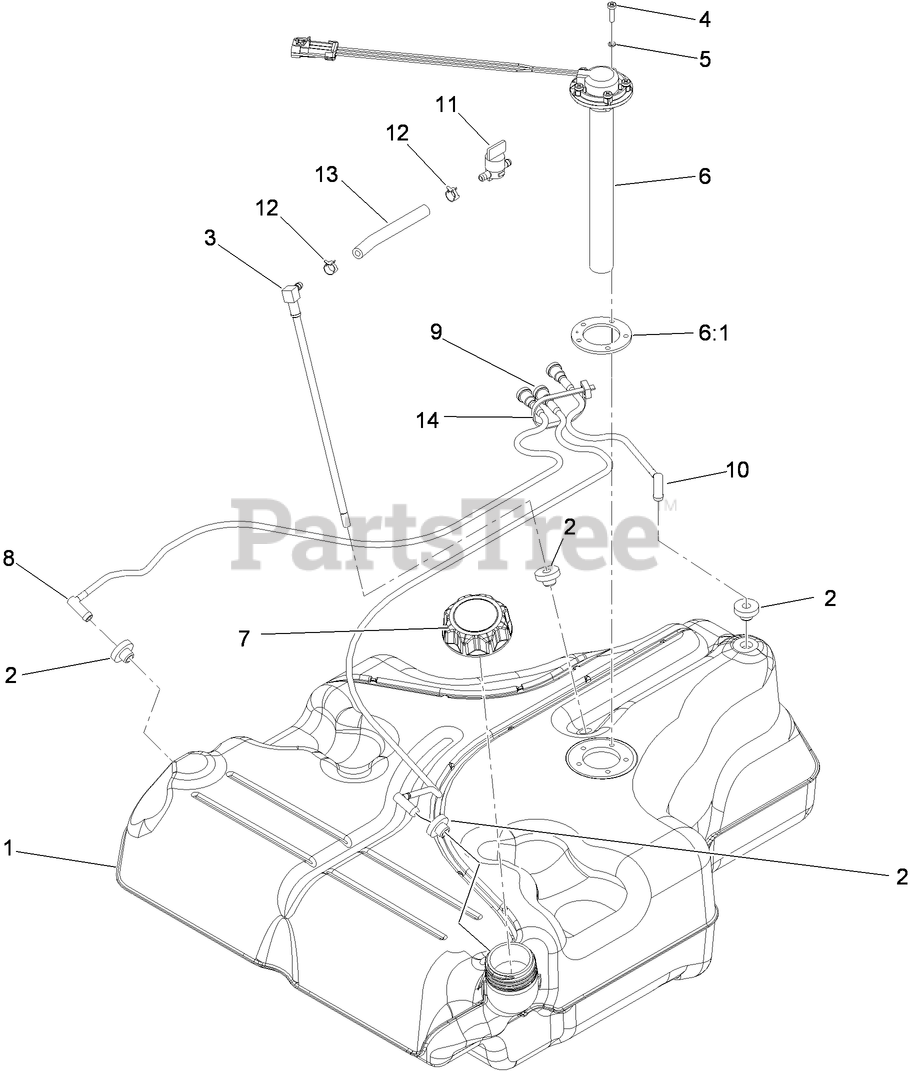

FUEL TANK ASSEMBLY NO. 109-9357 Parts Diagram

  • Title

1

TANK-FUEL, BELLY

Note: Not serviced separately

$

$

Not available

2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

3

Toro 116-2459

FUEL LINE KIT (WITH GROMMET)

$43.99

$

In Stock, only 4 left!

0

4

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

6

Toro 116-0003

SENDER-LEVEL, FUEL
(Superseded to 126-7728)

$178.99

$

In Stock, only 4 left!

0

6:1

Toro 109-9620

GASKET-SENDER, FUEL

$15.99

$

In Stock, only 1 left!

0

7

Toro 109-9619

CAP-FUEL

$72.99

$

Usually ships in 3-6 days

0

8

Toro 116-2460

RH VENT LINE KIT (WITH GROMMET)

$44.99

$

Usually ships in 3-6 days

0

9

Toro 116-2461

LH VENT LINE KIT (WITH GROMMET)

$44.99

$

Usually ships in 3-6 days

0

10

Toro 116-2462

REAR VENT LINE KIT (WITH GROMMET)

$29.99

$

Usually ships in 3-6 days

0

11

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

12

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

13

Toro 109-0650

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

14

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0
