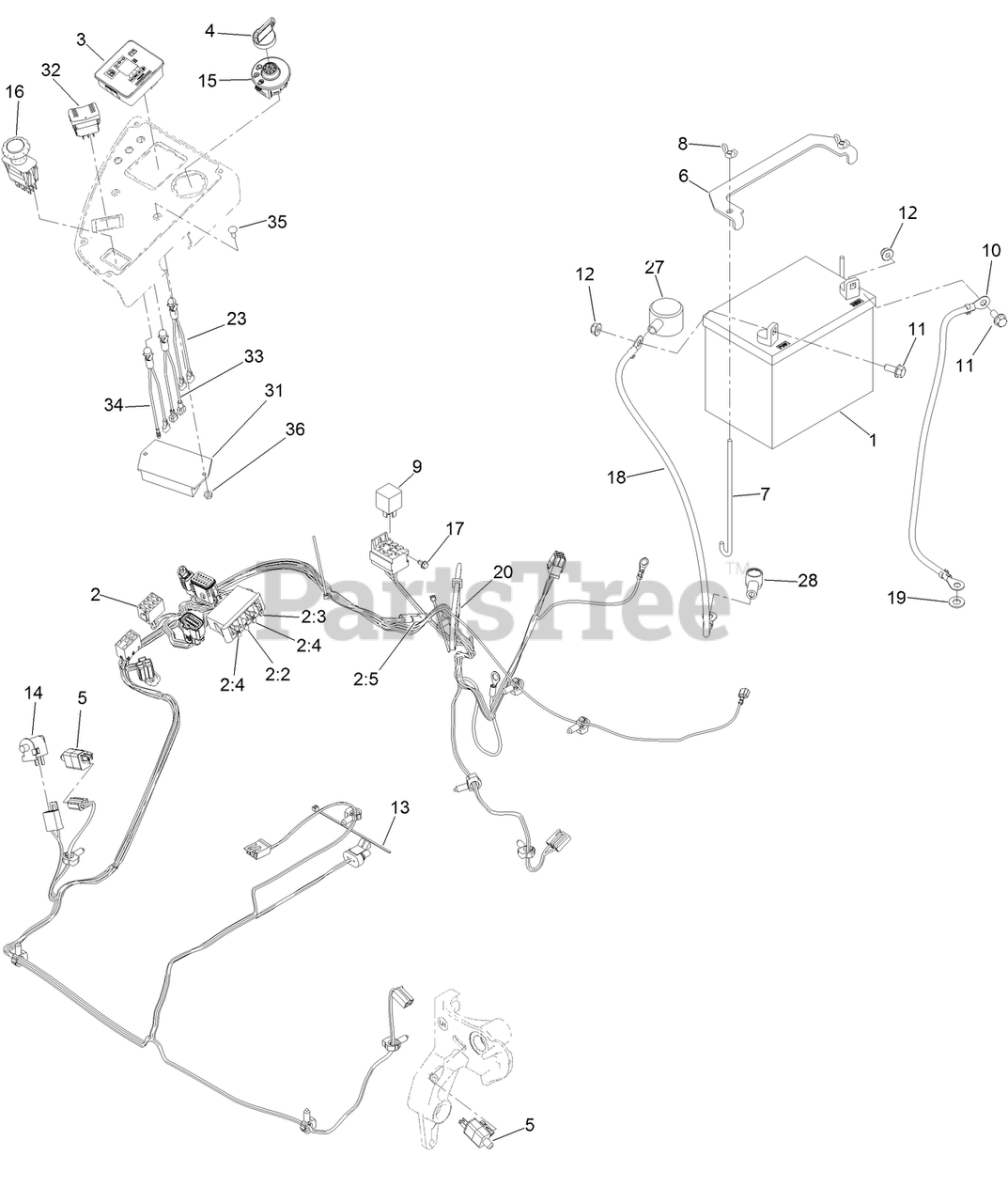

74947 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) ELECTRICAL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

BATTERY (340 CCA, WET)

Note: Not serviced separately

$

$

Not available

1

BATTERY (340 CCA, WET)

Note: Obtain locally.

$

$

Not available

2

Toro 126-1682

HARNESS-WIRE

$357.99

$

Usually ships in 3-6 days

0

2:2

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, Qty 6

0

2:3

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 8

0

2:4

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 10

0

2:5

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

3

Toro 117-3882

FUEL/HOUR METER ASM

$183.99

$

In Stock, Qty 10

0

4

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

5

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$23.99

$

In Stock, only 2 left!

0

7

Toro 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 11

0

8

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 6

0

9

Toro 1-643275

RELAY

$25.99

$

In Stock, Qty 20+

0

10

Toro 114-1218

CABLE-BATTERY, NEGATIVE

$25.99

$

In Stock, only 4 left!

0

11

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

15

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$29.99

$

In Stock, Qty 20+

0

16

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$72.99

$

In Stock, Qty 20+

0

17

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Toro 115-3864

CABLE-BATTERY, POSITIVE

$33.99

$

In Stock, Qty 7

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

23

Toro 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, Qty 5

0

27

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

28

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

31

Toro 126-2722

CONTROLLER-RED

$338.99

$

Usually ships in 3-6 days

0

32

Toro 116-9669

SWITCH-ROCKER

$35.99

$

In Stock, only 1 left!

0

33

Toro 116-9651

LIGHT-LED, RED

$25.99

$

Usually ships in 3-6 days

0

34

Toro 116-9652

LIGHT-LED, RED

$45.99

$

Usually ships in 3-6 days

0

35

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
