74967 CP - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) DECK LIFT ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

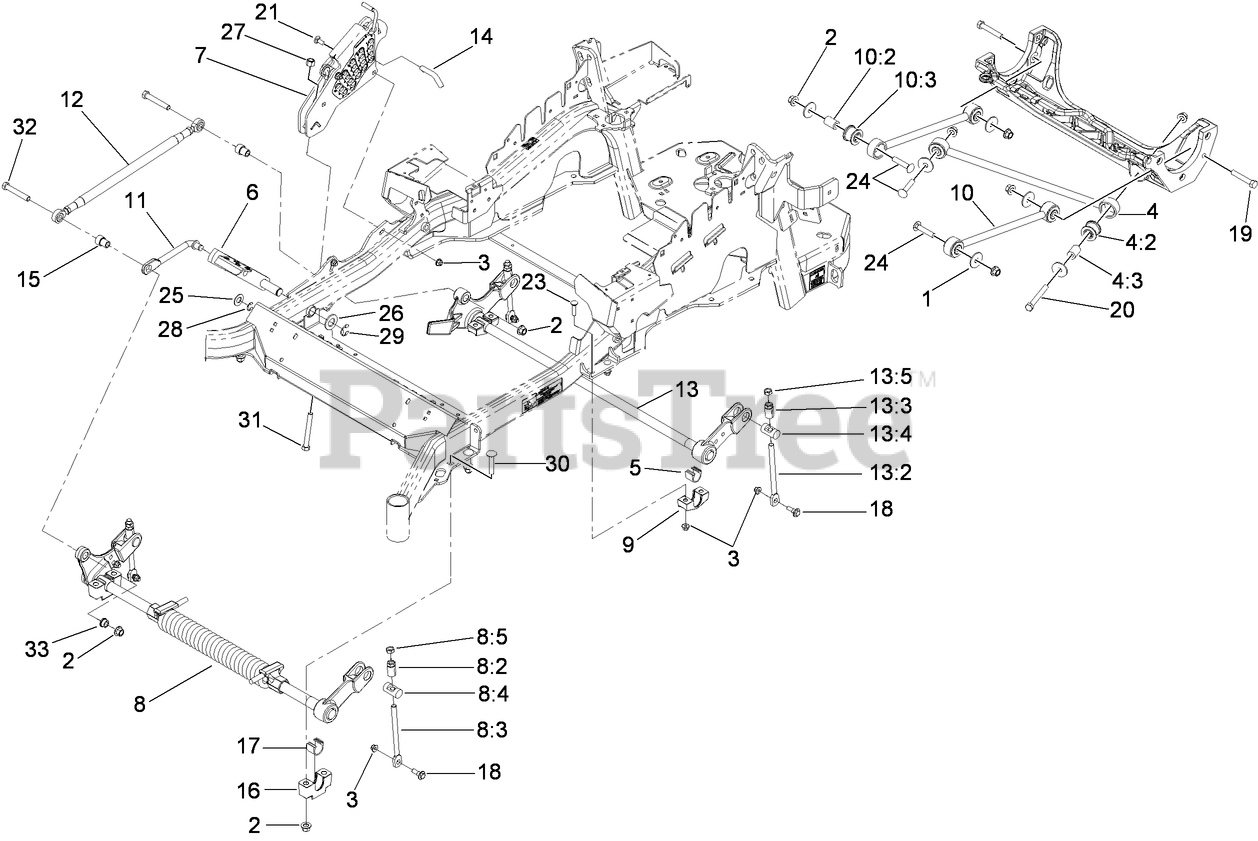

DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 15

0

2

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-5013

PANHARD ROD ASM

$150.99

$

In Stock, Qty 13

0

4:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

0

4:3

Toro 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

5

Toro 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-7202-01

LEVER-FOOT

$

$

Not available

7

Toro 109-7438

HOC ASM

$289.99

$

In Stock, only 1 left!

0

8

Toro 116-1651

FRONT CROSS SHAFT ASM

$899.99

$

Usually ships in 3-6 days

0

8:2

Toro 109-7840

ADJUSTER-LIFT, DECK

$8.49

$

In Stock, Qty 18

0

8:3

Toro 109-8007

LINK-ADJUSTER, DECK LIFT

$17.99

$

In Stock, Qty 12

0

8:4

Toro 109-8353

TRUNNION

$15.99

$

In Stock, Qty 20+

0

8:5

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-0818-03

SUPPORT-CROSS SHAFT, REAR BEARING
(Superseded to 132-4719)

$46.99

$

In Stock, Qty 12

0

10

Toro 109-7952

DECK STRUT ASM

$153.99

$

In Stock, Qty 8

0

10:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

0

10:3

Toro 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

11

Toro 109-8004

LINK-LEVER, FOOT

$

$

Not available

12

Toro 116-0806

SIDE LINK ASM

$217.99

$

Usually ships in 3-6 days

0

13

Toro 116-1619

REAR CROSS SHAFT ASM
(Superseded to 116-2257)

$

$

Not available

13:2

Toro 109-8007

LINK-ADJUSTER, DECK LIFT

$17.99

$

In Stock, Qty 12

0

13:3

Toro 109-7840

ADJUSTER-LIFT, DECK

$8.49

$

In Stock, Qty 18

0

13:4

Toro 109-8353

TRUNNION

$15.99

$

In Stock, Qty 20+

0

13:5

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Toro 109-8757

PIN-HOC

$9.49

$

In Stock, Qty 8

0

15

Toro 116-0795

BUSHING-FLANGE

$

$

Not available

16

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 17

0

17

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.49

$

In Stock, Qty 20+

0

18

Toro 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

19

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

20

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

21

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 14

0

25

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

26

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

27

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 10

0

29

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

30

Toro 3233-37

SCREW-CARR, SHORT NECK

$

$

Not available

31

Toro 116-0559

BOLT-TAP

$6.99

$

Usually ships in 3-6 days

0

32

Toro 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

33

Toro 116-0796

BUSHING-FLANGE

$

$

Not available
