74967 CP - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) RH HYDRO ASSEMBLY NO. 116-1383 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

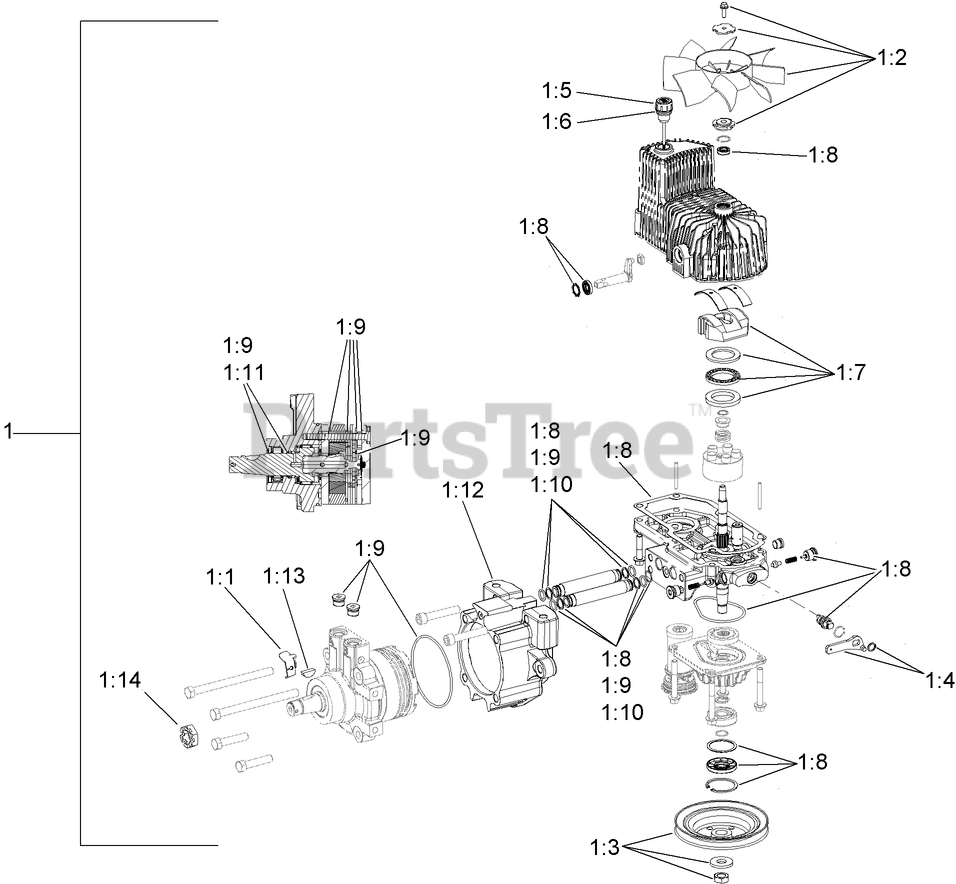

RH HYDRO ASSEMBLY NO. 116-1383 Parts Diagram

  • Title

1

HYDRO-RH

Note: Not serviced separately

$

$

Not available

1:1

Toro 116-1758

BRACKET-ANCHOR, CABLE

$15.99

$

Usually ships in 3-6 days

0

1:2

Toro 116-0233

FAN KIT

$

$

Not available

1:3

Toro 116-0234

PULLEY KIT

$182.99

$

Usually ships in 3-6 days

0

1:4

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

1:5

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

$55.99

$

In Stock, Qty 20+

0

1:6

Toro 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 2 left!

0

1:7

Toro 116-1367

SWASH BLOCK KIT

$535.99

$

Usually ships in 3-6 days

0

1:8

Toro 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$161.99

$

In Stock, Qty 14

0

1:9

Toro 116-1369

MOTOR SEAL KIT

$284.99

$

Usually ships in 3-6 days

0

1:10

Toro 116-1370

TUBE SEAL KIT

$33.99

$

In Stock, Qty 5

0

1:11

Toro 116-1371

OUTPUT SHAFT SEAL KIT

$148.99

$

In Stock, only 1 left!

0

1:12

Toro 116-1372

CUP-NOSE

$1181.99

$

Usually ships in 3-6 days

0

1:13

Toro 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

0

1:14

Toro 1-809036

NUT-HH

$39.99

$

In Stock, Qty 5

0

1:99

Toro 116-1373

FLOW TEST KIT

Note: Not illustrated

$1194.99

$

Usually ships in 3-6 days

0
