74977 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311000124) (2011) LP VALVE, TANK AND HOSE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

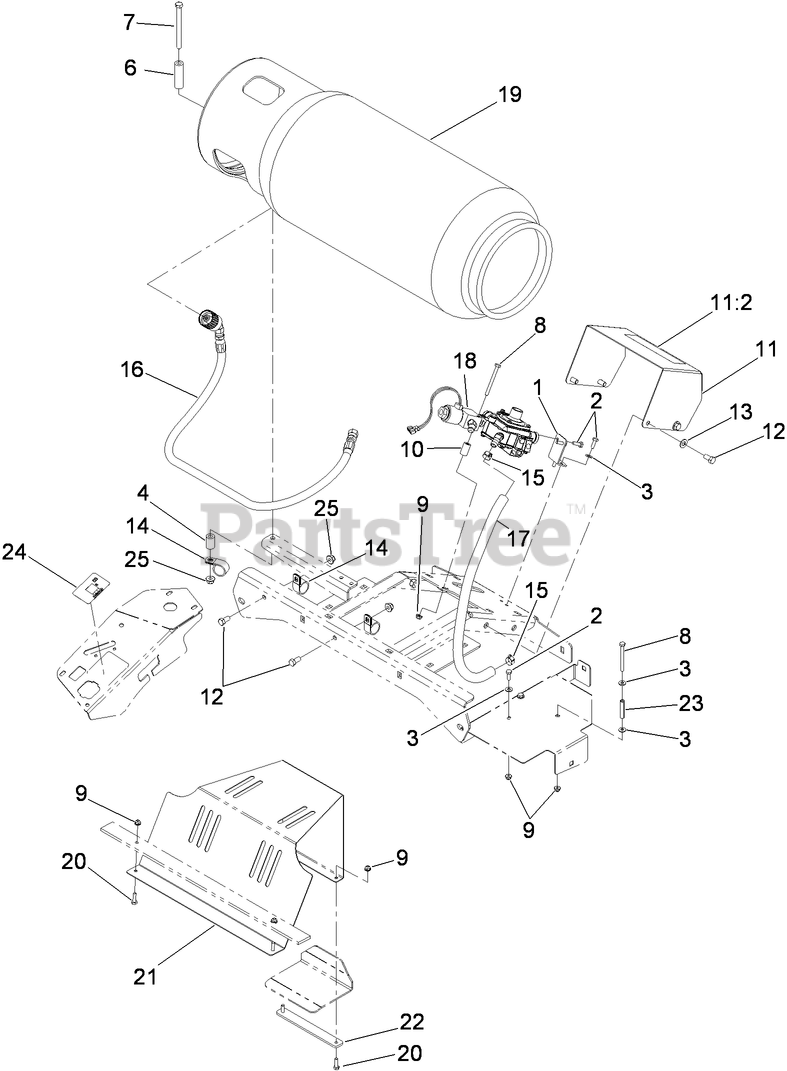

LP VALVE, TANK AND HOSE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-2571-03

BRACKET-REGULATOR

$21.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

6

Toro 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

7

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

8

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

11

Toro 116-2818

COVER ASM

$103.99

$

Usually ships in 3-6 days

0

11:2

Toro 109-9906

DECAL-TANK REPLACEMENT

$15.99

$

In Stock, only 2 left!

0

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

15

Toro 97-1271

CLAMP-HOSE

$3.99

$

In Stock, only 2 left!

0

16

Toro 116-2821

LPG FUEL HOSE ASM

$

$

Not available

17

Toro 116-2568

HOSE-LP

$117.99

$

Usually ships in 3-6 days

0

18

Toro 116-2554

LP SOLENOID REGULATOR ASM

$1333.99

$

In Stock, Qty 6

0

19

Toro 116-1694

TANK-LPG
(Superseded to 126-4507)

$646.99

$

In Stock, only 2 left!

0

20

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 116-3358-03

SHEILD-FAN

$120.99

$

Usually ships in 3-6 days

0

22

Toro 116-3359-03

STRAP

$20.99

$

Usually ships in 3-6 days

0

23

Toro 56-7740

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

0

24

Toro 116-3446

DECAL-METER, HOUR

$55.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
