75-36XR02 - Toro 36" Rear-Discharge Mower Deck (1977)

36" Rear-Discharge Mower Deck

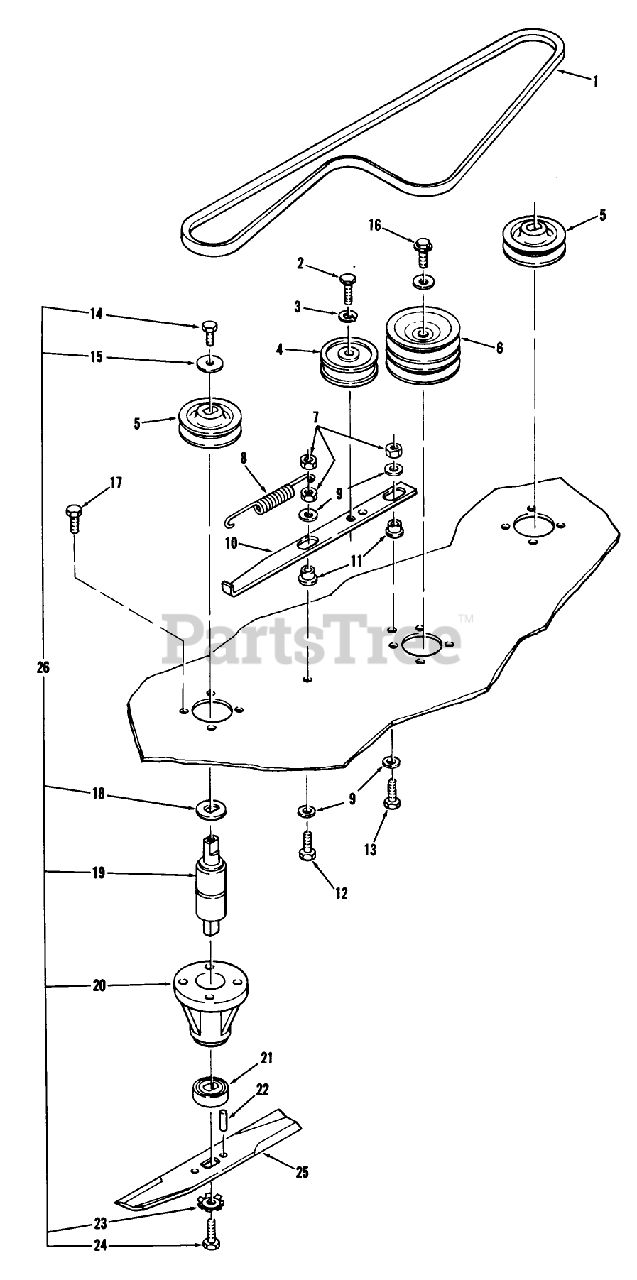

75-36XR02 - Toro 36" Rear-Discharge Mower Deck (1977) > Parts Diagrams (3) > PARTS LIST FOR ROTARY MOWERS (75-36XR02,75-36MS02)

  • Title
8411

1

V-BELT

Part# 8411

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.92

105865

2

BOLT HEX SPECIAL

Part# 105865

OEM Warranty Repair Part for Toro

Not available

920083

3

LOCKWASHER

Part# 920083 (Superseded to 3253-21)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

7434

4

Idler Pulley

Part# 7434 (Superseded to 112426)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.46

8392

5

Pulley

Part# 8392 (Superseded to 105781)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $41.81

103156

6

Pulley-Center Drive

Part# 103156 (Superseded to 99-5357)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $109.64

915113

7

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

100071

8

SPRING-EXTENSION

Part# 100071

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.75

2844

9

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.14

106120

10

BAR-IDLER SUPPORT

Part# 106120 (Superseded to 106120A)

OEM Warranty Repair Part for Tecumseh

Currently unavailable

106121

11

Bushing/Spacer

Part# 106121

OEM Warranty Repair Part for Tecumseh

Currently unavailable

908037

12

Bolt

Part# 908037 (Superseded to 323-9)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

908035

13

Bolt

Part# 908035 (Superseded to 323-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.29

908032

14

Bolt

Part# 908032 (Superseded to 323-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

2844

15

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.14

102972

16

Bolt-Lock 3/8-16 x 7/8

Part# 102972 (Superseded to 113134)

OEM Warranty Repair Part for Toro

Not available

908032

17

Bolt

Part# 908032 (Superseded to 323-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

105075

18

WASHER-DOUBLE D

Part# 105075

OEM Warranty Repair Part for Toro

Not available

103119

19

BEARING

Part# 103119

OEM Warranty Repair Part for Tecumseh

Currently unavailable

105074

20

HOUSING-BEARING B

Part# 105074 (Superseded to 105074-03)

OEM Warranty Repair Part for Toro

Not available

104373

21

Cup-Spindle

Part# 104373 (Superseded to 102780)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.15

933210

22

SPIROL ROLL PIN

Part# 933210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.04

1336

23

WASHER

Part# 1336

OEM Warranty Repair Part for Toro

Not available

908033

24

Bolt

Part# 908033 (Superseded to 110242)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.43

8969

25

BLADE KIT 36 LF REAR

Part# 8969

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $95.60

101335

25

BLADE KIT

Part# 101335

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $101.12

101525

26

S/A SPINDLE ASSY

Part# 101525

OEM Warranty Repair Part for Toro

Not available
