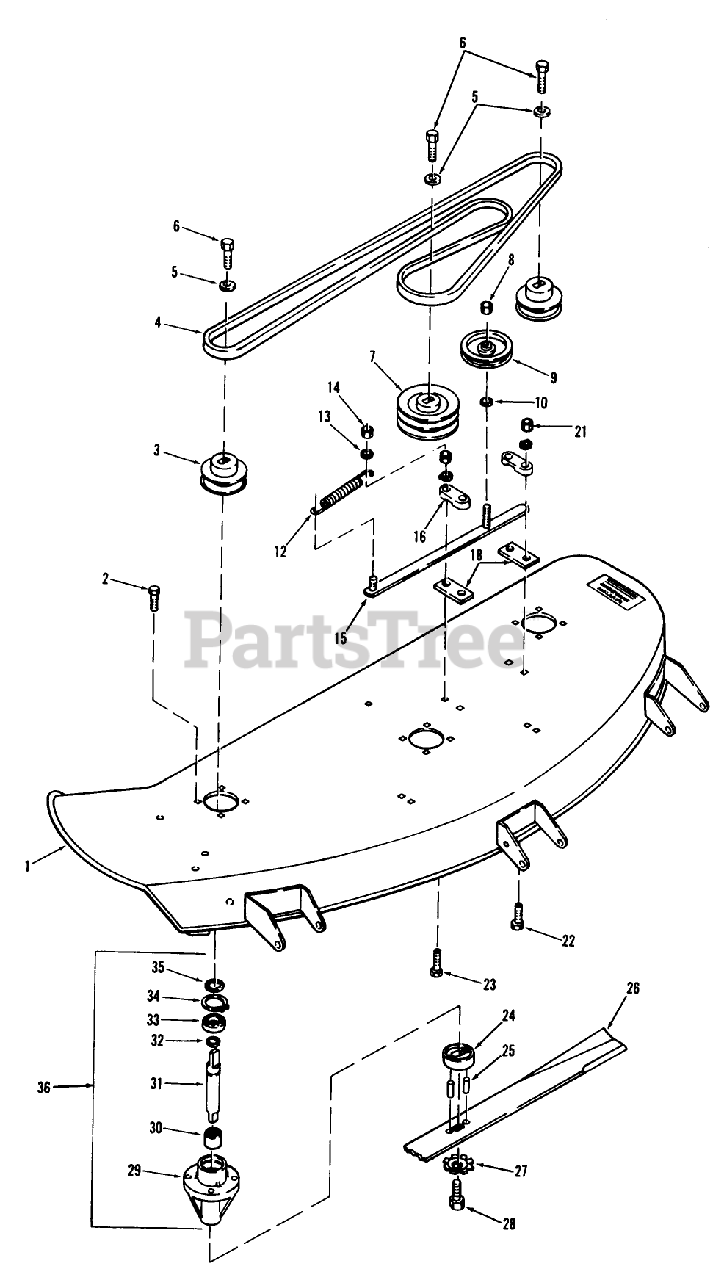

75-42MS01 - Toro 42" Side-Discharge Mower Deck (1977) 42" Mower (vehicle Identification Number 75-42ms01 Parts Diagram

42" Side-Discharge Mower Deck

42" Mower (vehicle Identification Number 75-42ms01 Parts Diagram

  • Title

1

Toro 105966

See Supercession: 106151-01
(Superseded to 106151-01)

$

$

Not available

2

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

3

Toro 6757

See Supercession: 106849
(Superseded to 106849)

$312.99

$

Usually ships in 3-6 days

0

4

Toro 1594

V-BELT

$42.99

$

In Stock, only 3 left!

0

5

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

6

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 12

0

7

Toro 6756

DISCONTINUED
(Superseded to 106848)

$

$

Not available

8

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

9

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$44.99

$

In Stock, only 2 left!

0

9

Toro 6769

See Supercession: 93-1622
(Superseded to 93-1622)

$53.99

$

In Stock, Qty 6

0

10

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

12

Toro 6651

SPRING *R

$27.99

$

In Stock, only 2 left!

0

13

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

14

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 6715

DISCONTINUED

$

$

Not available

16

Toro 6720

See Supercession: 742659
(Superseded to 742659)

$

$

Not available

18

Toro 6748

DISCONTINUED

$

$

Not available

21

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 900039

See Supercession: 3230-3
(Superseded to 3230-3)

$1.49

$

In Stock, only 4 left!

0

23

Toro 900040

See Supercession: 3230-4
(Superseded to 3230-4)

$4.49

$

In Stock, only 2 left!

0

24

Toro 104374

See Supercession: 102784
(Superseded to 102784)

$

$

Not available

25

Toro 933210

SPIROL ROLL PIN

$3.49

$

Usually ships in 3-6 days

0

26

Toro 100202

DISCONTINUED

$

$

Not available

27

Toro 1336

DISCONTINUED

$

$

Not available

28

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

29

Toro 102775

HOUSING SPINDLE

$

$

Not available

30

Toro 100289

NEEDLE BEARING

$74.99

$

Usually ships in 3-6 days

0

31

Toro 104890

SHAFT SPINDLE

$174.99

$

Usually ships in 3-6 days

0

32

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

33

Toro 101411

BEARING

$143.99

$

Usually ships in 3-6 days

0

34

Toro 936029

INT SNAP RING

$

$

Not available

35

Toro 1535

WASHER-THRUST

$11.99

$

In Stock, only 2 left!

0

36

Toro 104891

SVC BULLT 211

$

$

Not available

1

Toro 105965

DISCONTINUED
(Superseded to 107992)

$

$

Not available

3

Toro 5877

DISCONTINUED
(Superseded to 106846)

$

$

Not available

4

Toro 6738

V BELT

$37.99

$

In Stock, Qty 11

0

7

Toro 6692

DISCONTINUED
(Superseded to 106847)

$

$

Not available

26

Toro 100200

DISCONTINUED

$

$

Not available
