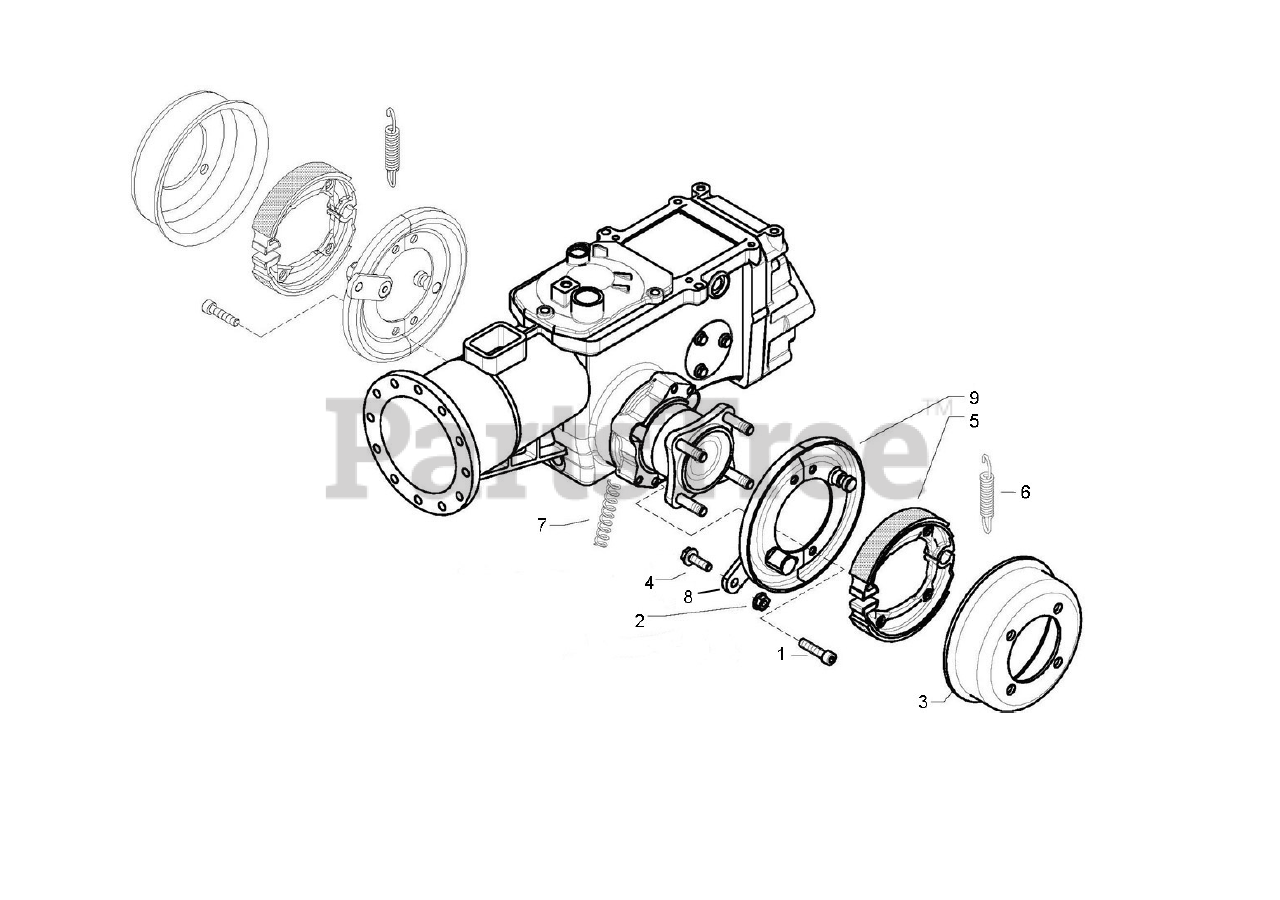

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Brakes (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Brakes (SN: 898000 & Above) Parts Diagram

  • Title

1

31152085

SCREW TCEI M8X25 UNI 5931

Note:

$

$

Not available

2

BCS America 31241084

SELFLOCK NUT M8 6S DIN 6927

Note:

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 56148218N

BRAKE DRUM

Note:

$

$

Currently unavailable

4

56356857Z

STOP

Note:

$

$

Not available

5

58048214

BRAKE BLOCK

Note:

$

$

Not available

6

58048215

SPRING

Note:

$

$

Not available

7

BCS America 58056918

SPRING

Note:

$4.49

$

Usually ships in 5-8 days

0

8

BCS America 59048200N

LEVER, HALF DISC COMPLETE

Note:

$

$

Currently unavailable

9

BCS America 59048208N

PIN, HALF DISC COMPLETE

Note:

$

$

Currently unavailable
