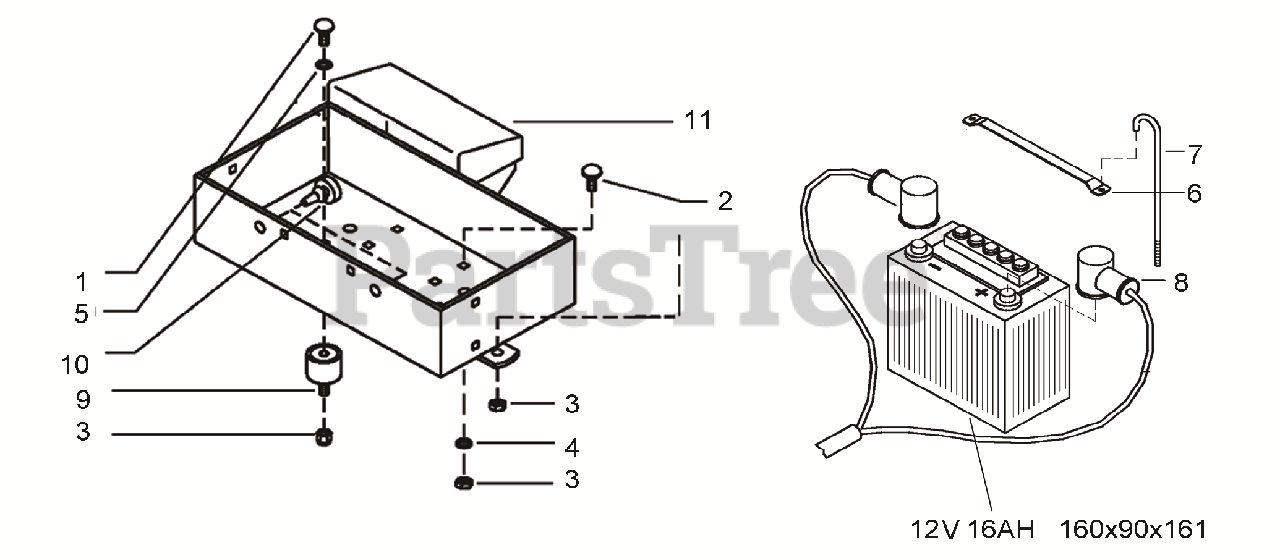

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Electrical System (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Electrical System (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 311.00201

BOLT W/SQUARE NUT M6X12

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.21558

BOLT M6X16

Note:

$1.49

$

In Stock, Qty 5

0

3

BCS America 312.4106

LOCKNUT M6 STANDARD

Note:

$0.99

$

In Stock, Qty 8

0

4

BCS America 314.11064

WASHER FLAT M6.4X12.5

Note:

$0.99

$

In Stock, only 2 left!

0

5

BCS America 314.1109

WASHER FLAT M9X24

Note:

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 561.19937

BRACKET - BATTERY

Note:

$32.99

$

Usually ships in 5-8 days

0

7

BCS America 561.57387

ROD

Note:

$16.99

$

Usually ships in 5-8 days

0

8

BCS America 580.4746

CABLE - ELECTRIC STARTER

Note:

$106.99

$

Usually ships in 5-8 days

0

9

BCS America 581.35225

RUBBER BUFFER - VIBRATION

Note:

$24.99

$

Usually ships in 5-8 days

0

10

BCS America 581.57405

RUBBER STOPPER

Note:

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 590.5739

BOX - BATTERY

Note:

$156.99

$

Usually ships in 5-8 days

0
