750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Wheel Axle & Differential (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

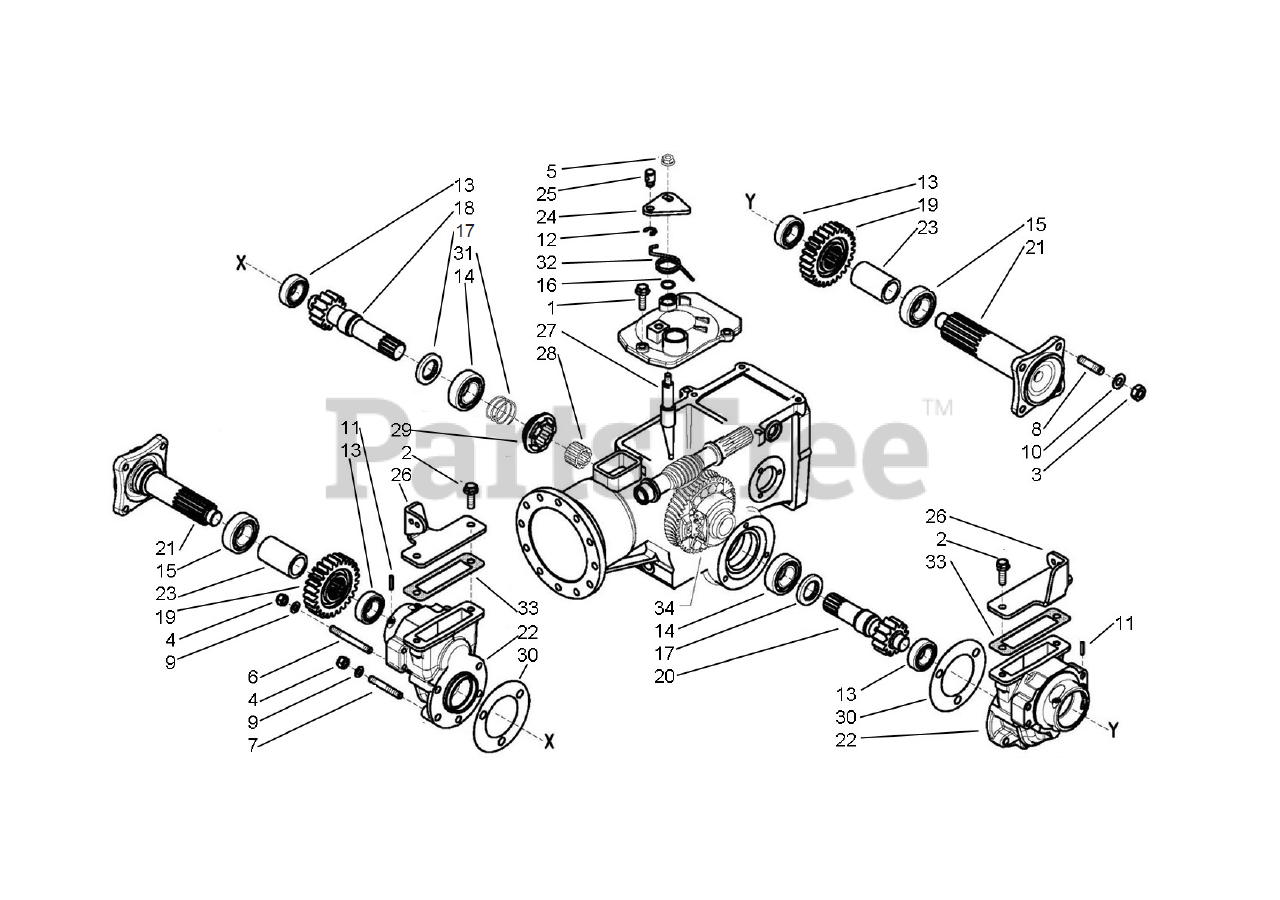

Wheel Axle & Differential (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 31112166

SCREW TE M8X25

Note:

$1.49

$

Usually ships in 5-8 days

0

2

31112170

SCREW TE M8X25

Note:

$

$

Not available

3

BCS America 31211100

NUT, M10

Note:

$1.49

$

In Stock, only 2 left!

0

4

BCS America 31241080

NUT, LOCK M8

Note:

$0.99

$

In Stock, Qty 10

0

5

BCS America 31241084

NUT, LOCK M8

Note:

$1.49

$

Usually ships in 5-8 days

0

6

31312085

STUD M8X80X28X16

Note:

$

$

Not available

7

31312089

STUD M8X52X14X18

Note:

$

$

Not available

8

BCS America 31312102

STUD BOLT M10X40X24X12

Note:

$2.49

$

In Stock, only 2 left!

0

9

BCS America 31423084

SPRING WASHER 8 4 DIN 137

Note:

$0.99

$

In Stock, Qty 9

0

10

BCS America 31423105

SPRING WASHER 10 5 DIN137

Note:

$1.49

$

In Stock, only 3 left!

0

11

34213040

ROLL PIN

Note:

$

$

Not available

12

BCS America 35211060

SEEGER RING E 6 UNI 7434

Note:

$0.99

$

In Stock, Qty 10

0

13

37111170

BEARING

Note:

$

$

Not available

14

BCS America 37111250

BEARING

Note:

$

$

Not available

15

37112253

BEARING

Note:

$

$

Not available

16

BCS America 38111400

O-RING 2056 (14 00X1 78)

Note:

$0.99

$

Usually ships in 5-8 days

0

17

38213003

OIL SEAL

Note:

$

$

Not available

18

52449640

RH REDUCTION SHAFT D25

Note:

$

$

Not available

19

52449641

GEAR

Note:

$

$

Not available

20

52449642

SHORT LH REDUCTION SHAFT D23

Note:

$

$

Not available

21

52449643N

AXLE SHAFT

Note:

$

$

Not available

22

53249635B

REDUCTION BOX

Note:

$

$

Not available

23

56149644

SPACER

Note:

$

$

Not available

24

BCS America 56156219Z

LEVER

Note:

$

$

Currently unavailable

25

BCS America 56156828Z

STOP

Note:

$

$

Currently unavailable

26

56156856N

STOP

Note:

$

$

Not available

27

BCS America 56443871

ROD

Note:

$111.99

$

Usually ships in 5-8 days

0

28

BCS America 56448183

SPACER

Note:

$66.99

$

Usually ships in 5-8 days

0

29

BCS America 56448196

COUPLING

Note:

$156.99

$

Usually ships in 5-8 days

0

30

BCS America 58043855

GASKET

Note:

$6.49

$

Usually ships in 5-8 days

0

31

BCS America 58043874

SPRING

Note:

$3.99

$

Usually ships in 5-8 days

0

32

BCS America 58043881N

SPRING

Note:

$

$

Currently unavailable

33

58049646

COVER GASKET

Note:

$

$

Not available

34

59049637

DIFFERENTIAL GEAR

Note:

$

$

Not available
