75211 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 402000000 - 402614526) Caster Fork Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

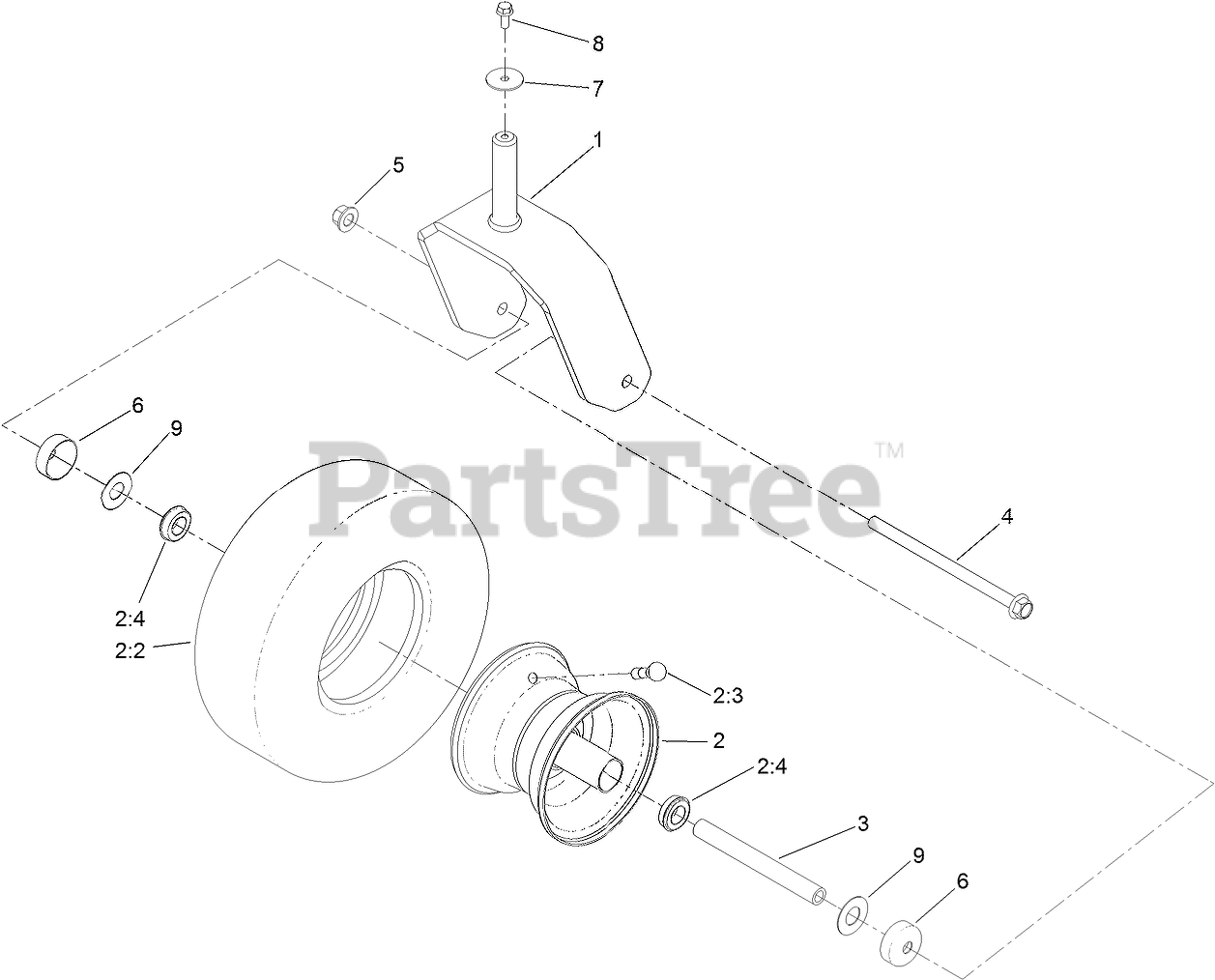

Caster Fork Assembly Parts Diagram

  • Title

1

Toro 126-4312-01

FORK-CASTER
(Superseded to 142-7827-01)

$120.99

$

In Stock, Qty 20+

0

2

Toro 133-4428

TIRE AND WHEEL ASM

$183.99

$

In Stock, only 1 left!

0

2:2

Toro 125-5581

TIRE

$108.99

$

Usually ships in 3-6 days

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

2:4

Toro 136-4190

BEARING

$13.99

$

In Stock, Qty 12

0

2:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$40.99

$

Usually ships in 3-6 days

0

2:99

Toro 232-46

TUBE-INNER

Note: Optional Equipment

$40.99

$

Usually ships in 3-6 days

0

3

Toro 133-4487

SPANNER-WHEEL

$14.99

$

In Stock, only 1 left!

0

4

Toro 126-5389

SCREW-HHF

$8.49

$

In Stock, Qty 10

0

5

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

6

Toro 133-7088

GUARD-SEAL

$2.99

$

In Stock, only 3 left!

0

7

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

9

Toro 136-5590

WASHER

$1.49

$

In Stock, Qty 5

0
