7524 (31AS6R72063) - Troy-Bilt Storm 24" Snow Thrower (2004) Handle Parts Diagram

Storm 24" Snow Thrower

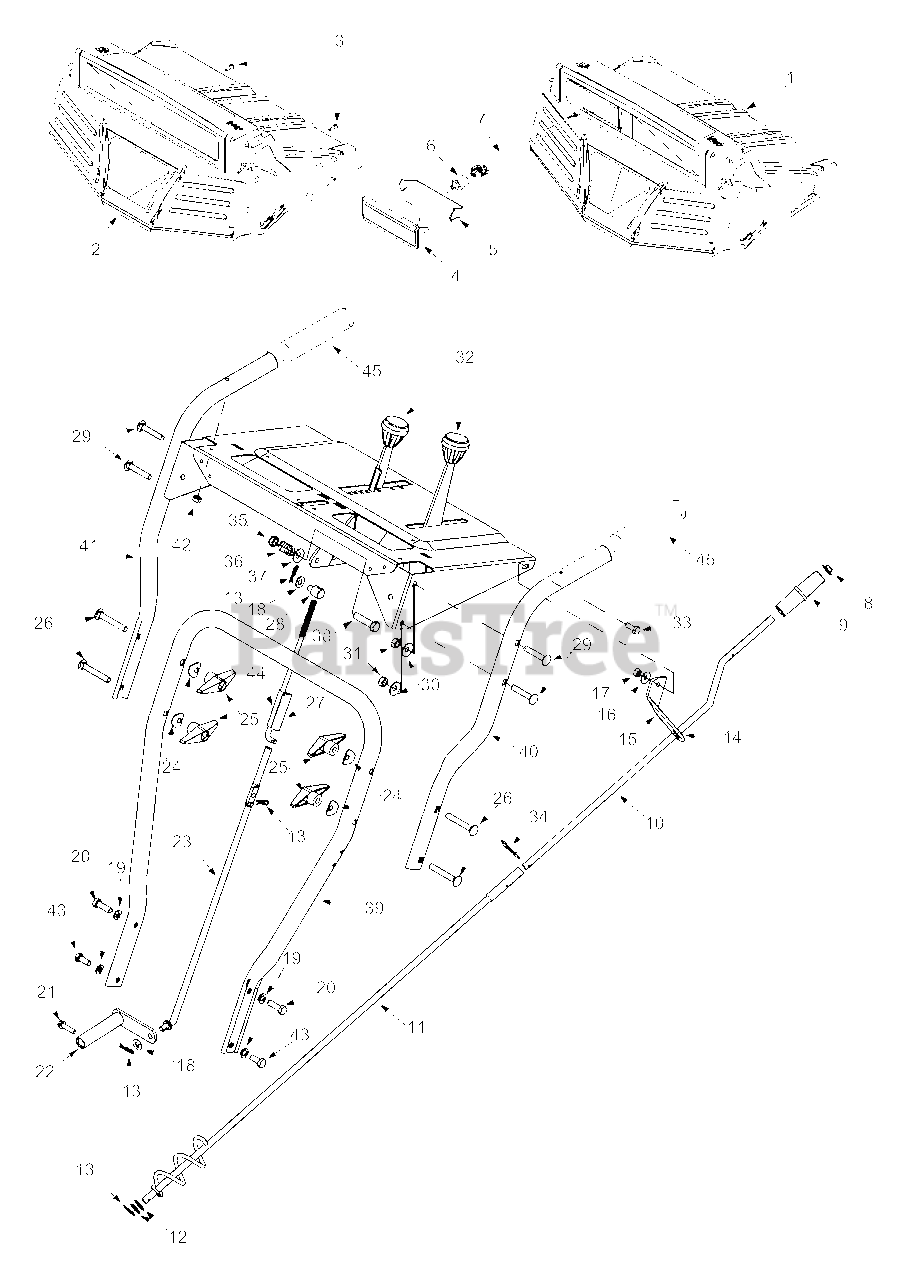

Handle Parts Diagram

  • Title

1

MTD 731-04067

Handle Panel (8526)

$

$

Not available

2

Troy-Bilt 731-04059

Handle Panel (7524)
(Superseded to 931-04059)

$

$

Not available

3

Troy-Bilt 710-1003

Special B Screw (8526)
(Superseded to 710-04669)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 725-1672

Lens Assembly (8526)
(Superseded to 925-1672)

$94.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 747-1136

Lamp Retainer (8526)

$12.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 725-1658

Halogen Lamp (8526)
(Superseded to 925-1658)

$63.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 629-0059

Lamp Wire Harness (8526)
(Superseded to 929-0059)

$106.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 726-0100

Push Cap

$4.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 720-0201A

Chute Crank Knob

$11.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

747-0737-0637

Troy-Bilt 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 684-0053B

Chute Crank Assembly, Lower
(Superseded to 684-0053B-0637)

Variations

684-0053B-0637

Troy-Bilt 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

12

Troy-Bilt 736-0185

Fl-Wash. .375 I.D. x .738 O.D.

$4.49

$

In Stock, only 4 left!

0

13

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 705-5266

2 pc. Chute Crank Brkt.
(Superseded to 705-5266-0637)

Variations

705-5266-0637

Troy-Bilt 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-0275

Fl-Wash. .344 I.D. x .688 O.D.

$7.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0119

L-Wash. 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0643

Hex Hd. Cap Scr. 5/16-18 Thd.

$7.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-0788

TT-Tap Screw 1/4-20 Thd.

$7.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

684-0008A-0637

Troy-Bilt 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 747-0621

Lower Shift Rod

$

$

Not available

24

Troy-Bilt 736-0451

Saddle Washer

$4.99

$

In Stock, Qty 8

0

25

Troy-Bilt 720-0284

Knob

$7.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-0449

Carriage Screw 5/16-18, Gr. 5
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

27

Troy-Bilt 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$36.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$18.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 710-0458

Carriage Bolt

$4.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 712-3068

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-3009)

$

$

Not available

32

Troy-Bilt 720-0232

Shift Knob
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 7

0

33

Troy-Bilt 710-3015

Hex Hd. Cap Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 714-0145

Click Pin

$5.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 712-0116

Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 736-0105

Spring Washer

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-0459A

Hex Cap Screw 3/8-24 Thd.

$7.49

$

In Stock, Qty 11

0

39

Troy-Bilt 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

749-0951-0637

Troy-Bilt 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

749-0951-0638

Troy-Bilt 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 749-0953A

Upper Handle, LH

Variations

749-0953A-0637

Troy-Bilt 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

749-0953A-0638

Troy-Bilt 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0953A-0665

Troy-Bilt 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

41

Troy-Bilt 749-0952A

Upper Handle, RH

Variations

749-0952A-0637

Troy-Bilt 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

749-0952A-0638

Troy-Bilt 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0952A-0665

Troy-Bilt 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Troy-Bilt 712-0271

Hex Sems Nut

$4.99

$

In Stock, Qty 15

0

43

Troy-Bilt 710-1880

Hex Patch Screw 5/16-18 Thd.

$4.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 720-0274

Foam Grip

$12.99

$

In Stock, only 2 left!

0
