7524 RS (1696266-00) - Murray 24" Snow Thrower, 7.5hp (2012) Traction Drive Group Parts Diagram

24" Snow Thrower, 7.5hp

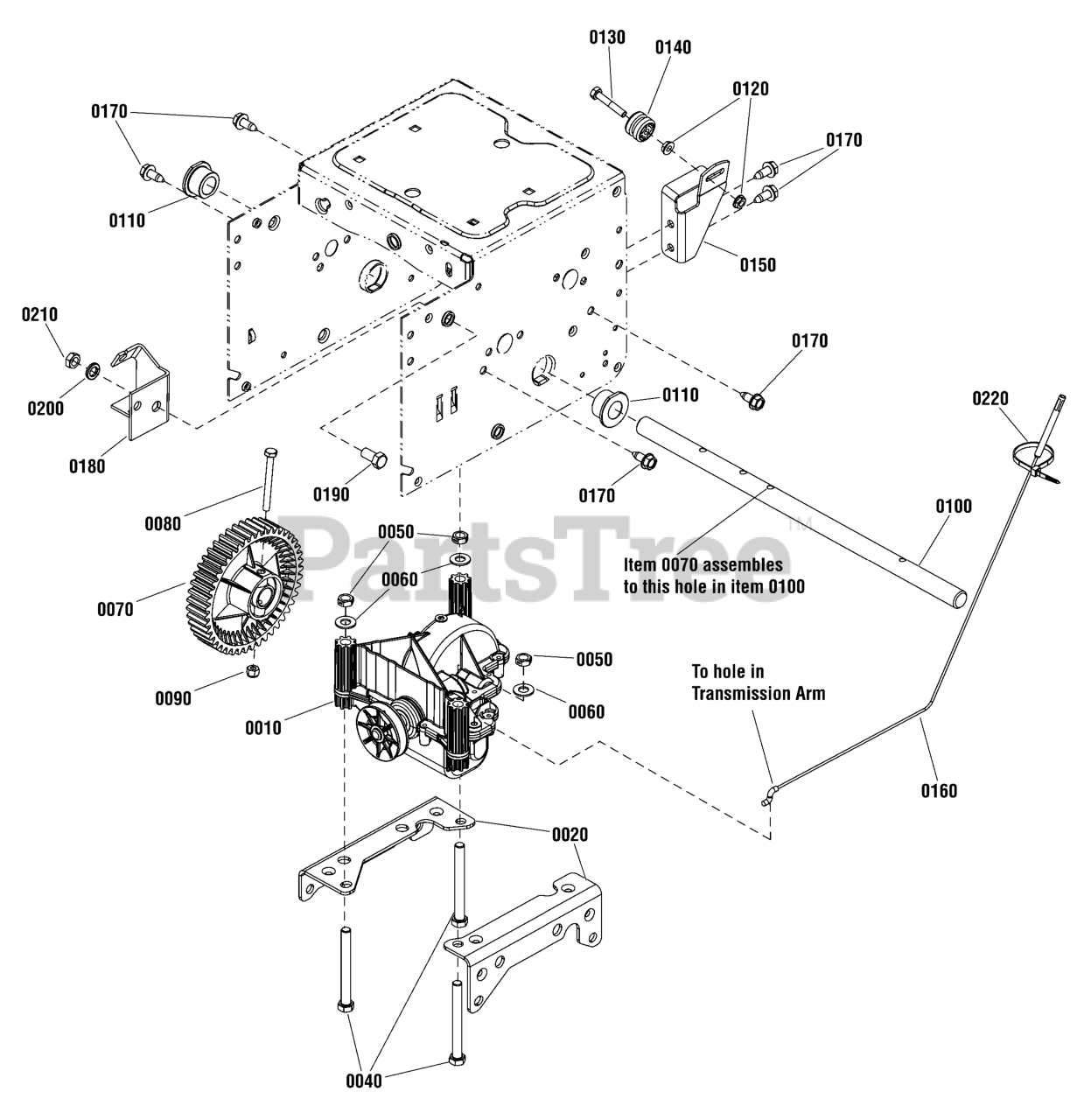

Traction Drive Group Parts Diagram

  • Title

0010

Murray 1753927YP

TRANSMISSION, GT H0

$138.99

$

Usually ships in 2-12 days

0

0020

Murray 1754058YP

BRACKET, Transmission Mount, GT H0

$18.99

$

Usually ships in 2-12 days

0

0040

Murray 703182

CAPSCREW, Hex Head, 3/8-16 x 3.5
(Superseded to 5025013X28SM)

$4.99

$

Usually ships in 2-12 days

0

0050

Murray 703230

NUT, Hex Centerlock Jam, 3/8-16

$5.49

$

In Stock, Qty 8

0

0060

Murray 703184

WASHER, Flat, 3/8 x .065
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

0070

Murray 1753937YP

GEAR, Axle

$

$

Not available

0080

Murray 703231

CAPSCREW, Hex Head, 1/4-20 x 2.5, GR8

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 703232

NUT, Hex Lock ESNA Light 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1751416YP

AXLE, 3/4 Dia. x 17-7/8

$36.99

$

Usually ships in 2-12 days

0

0110

Murray 1501114MA

BEARING, Axle, D-Hole

$12.99

$

In Stock, Qty 18

0

0120

Murray 703233

NUT, Hex Flange, Whiz Lock, 1/4-20

$4.49

$

In Stock, Qty 6

0

0130

Murray 703234

BOLT, 1/4-20 x 1-1/2" Hex Head

$4.49

$

In Stock, only 1 left!

0

0140

Murray 579860MA

SPOOL CABLE, Auger Control

$6.49

$

In Stock, only 2 left!

0

0150

Murray 1737347BMYP

BRACKET, Guide Wheel

$14.99

$

Usually ships in 2-12 days

0

0160

Murray 1753960YP

CABLE, Traction Drive, Lower

$21.99

$

Usually ships in 2-12 days

0

0170

Murray 703235

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0180

Murray 703236

BRACKET, Drive Cable

$45.99

$

Usually ships in 2-12 days

0

0190

Murray 703237

CAPSCREW, Hex Head 3/8-16 x 3/4 G5
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

0210

Murray 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

0220

Murray 1740650MA

TIE, Cable, 7.4", Orange

$

$

Not available
