75310 (5400 C) - Toro 54" Titan Zero-Turn Mower (SN: 407040000 - 409999999) Body Styling and Fuel Tank Assembly Parts Diagram

54" Titan Zero-Turn Mower

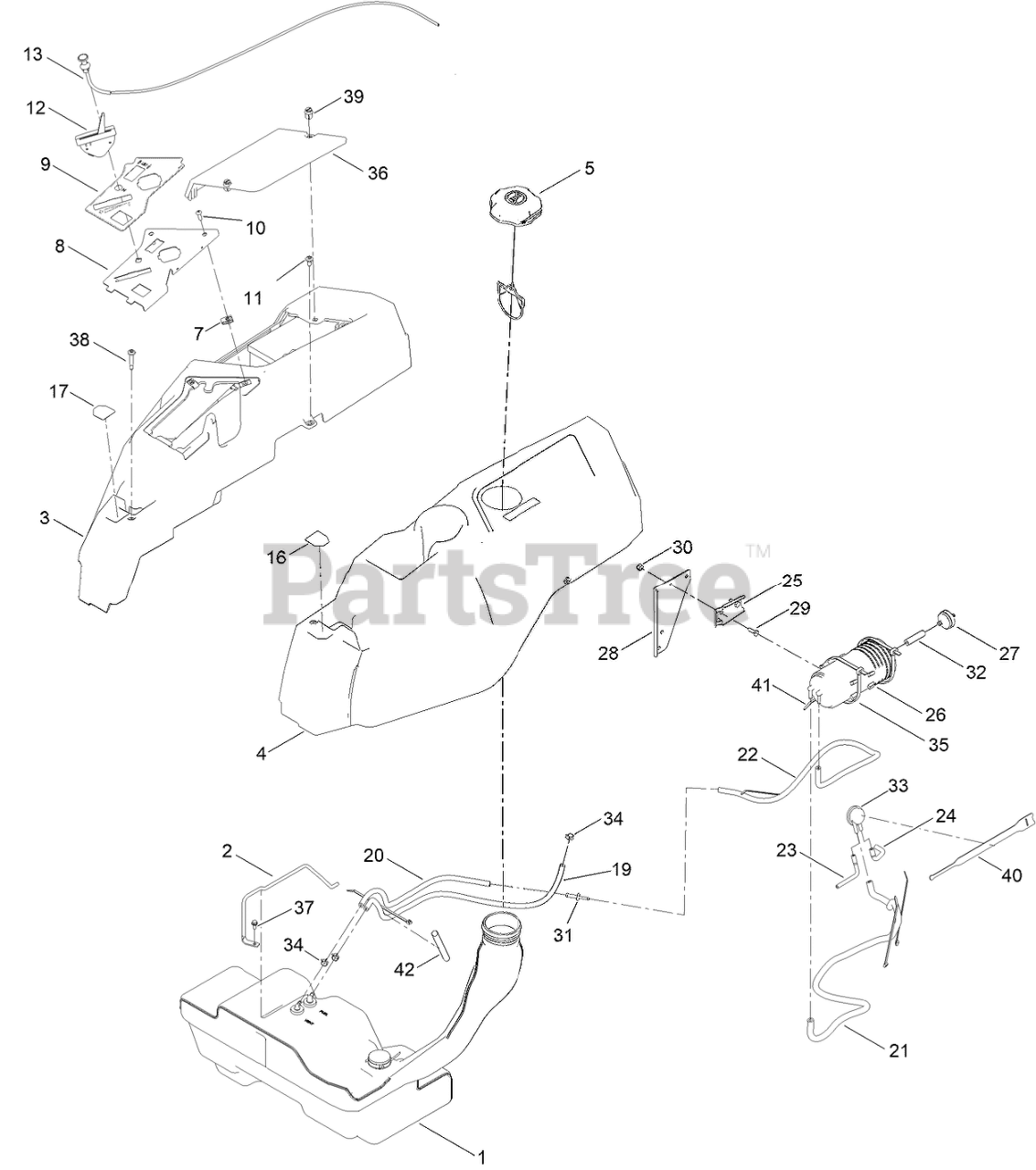

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 144-5303

TANK-FUEL ASM

$287.99

$

Usually ships in 3-6 days

0

2

Toro 136-4180

ROD-HOLD DOWN

$12.99

$

Usually ships in 3-6 days

0

3

Toro 133-9307

POD-RH

$82.99

$

Usually ships in 3-6 days

0

4

Toro 133-9315

POD-LH

$82.99

$

Usually ships in 3-6 days

0

5

Toro 137-4119

CAP-FUEL, RATCHETING

$26.99

$

In Stock, Qty 11

0

7

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Toro 139-7486-03

PANEL-CONTROL

$20.99

$

Usually ships in 3-6 days

0

9

Toro 139-7473

DECAL-PANEL, CONTROL

$11.99

$

Usually ships in 3-6 days

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, only 2 left!

0

12

Toro 139-5808

CABLE-THROTTLE

$33.99

$

Usually ships in 3-6 days

0

13

Toro 139-2402

CABLE-CHOKE

$25.99

$

Usually ships in 3-6 days

0

16

Toro 136-4243

DECAL-LEVER, CONTROL (LH)

$2.99

$

Usually ships in 3-6 days

0

17

Toro 136-4244

DECAL-LEVER, CONTROL (RH)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

20

Toro 138-3151

HOSE-VENT

$10.99

$

Usually ships in 3-6 days

0

21

Toro 109-0307

HOSE-FUEL

$20.99

$

In Stock, only 2 left!

0

22

Toro 136-7526

HOSE, FUEL

$12.99

$

Usually ships in 3-6 days

0

23

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

24

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

25

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

26

Toro 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 2 left!

0

27

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 3 left!

0

28

Toro 133-9292-03

CARB CANISTER BRACKET

$24.99

$

Usually ships in 3-6 days

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 144-1983

ADAPTER ORIFICE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

33

Toro 116-2232

VALVE-CONTROL, VACUUM

$25.99

$

In Stock, only 3 left!

0

34

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

35

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

36

Toro 133-9308

COVER-BATTERY

$23.99

$

In Stock, Qty 9

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-4195

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

39

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

40

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

41

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

42

Toro 138-2522

SLEEVE-FUEL LINE PROTECTOR

$7.49

$

Usually ships in 3-6 days

0
