75310 (5400 C) - Toro 54" Titan Zero-Turn Mower (SN: 410000000 - 411999999) Seat Pan Assembly Parts Diagram

54" Titan Zero-Turn Mower

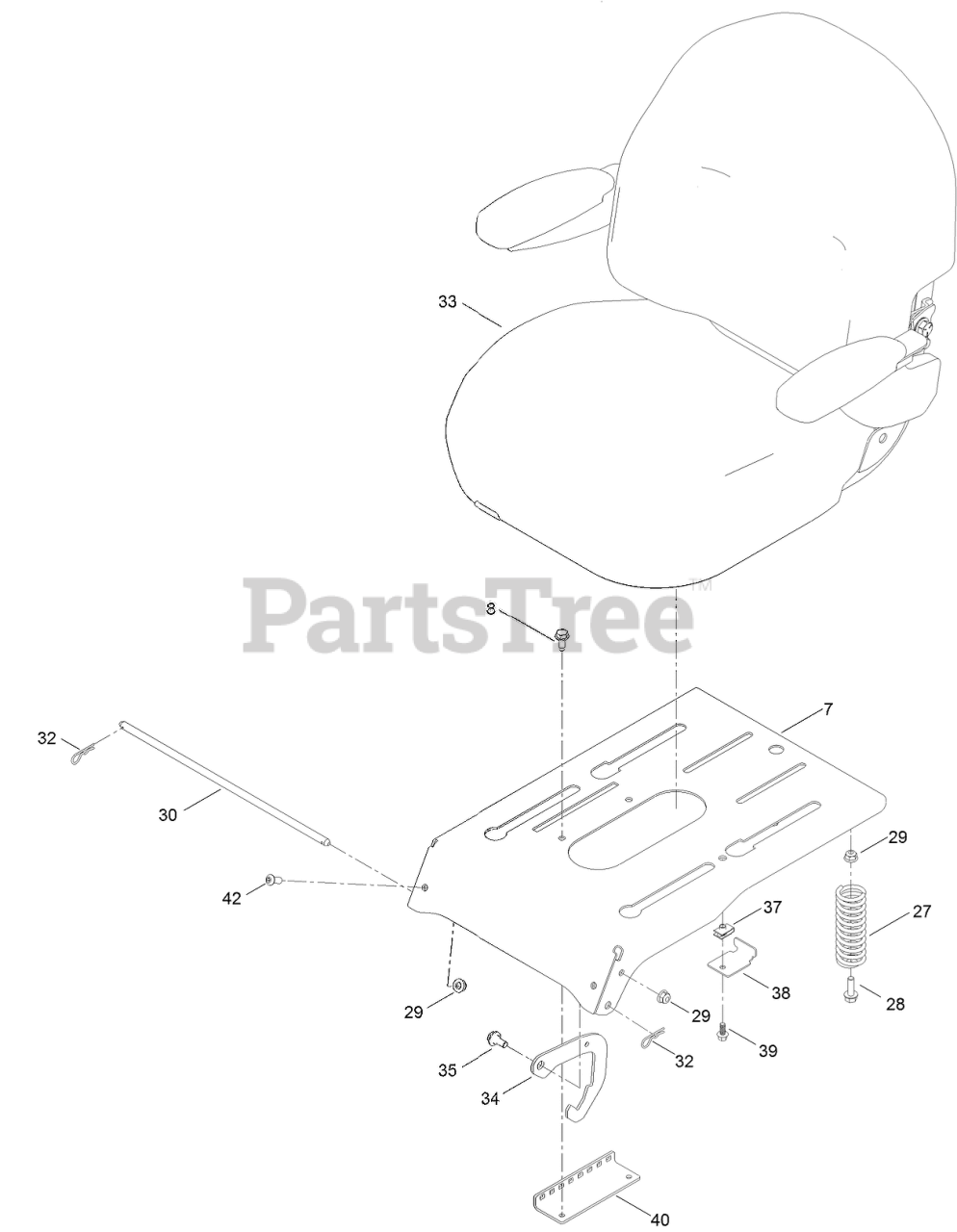

Seat Pan Assembly Parts Diagram

  • Title

7

Toro 136-5571-03

PAN-SEAT, DELUXE

$69.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 92-7054

SPRING-COMPRESSION

$25.99

$

In Stock, Qty 8

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 138-7213

ROD-PIVOT, NARROW

$18.99

$

Usually ships in 3-6 days

0

32

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

33

Toro 140-2714

SEAT ASM

$634.99

$

Usually ships in 3-6 days

0

34

Toro 138-7250

SEAT LATCH

$9.49

$

In Stock, only 1 left!

0

35

Toro 19-1470

SCREW-SHOULDER

$4.49

$

In Stock, only 3 left!

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 138-7214

BRACKET-STOP, SEAT

$2.99

$

Usually ships in 3-6 days

0

39

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

40

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

42

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0
