755 E (1693983) - Simplicity 22" Snow Thrower, 7hp Auger Housing and Chute Group Parts Diagram

22" Snow Thrower, 7hp

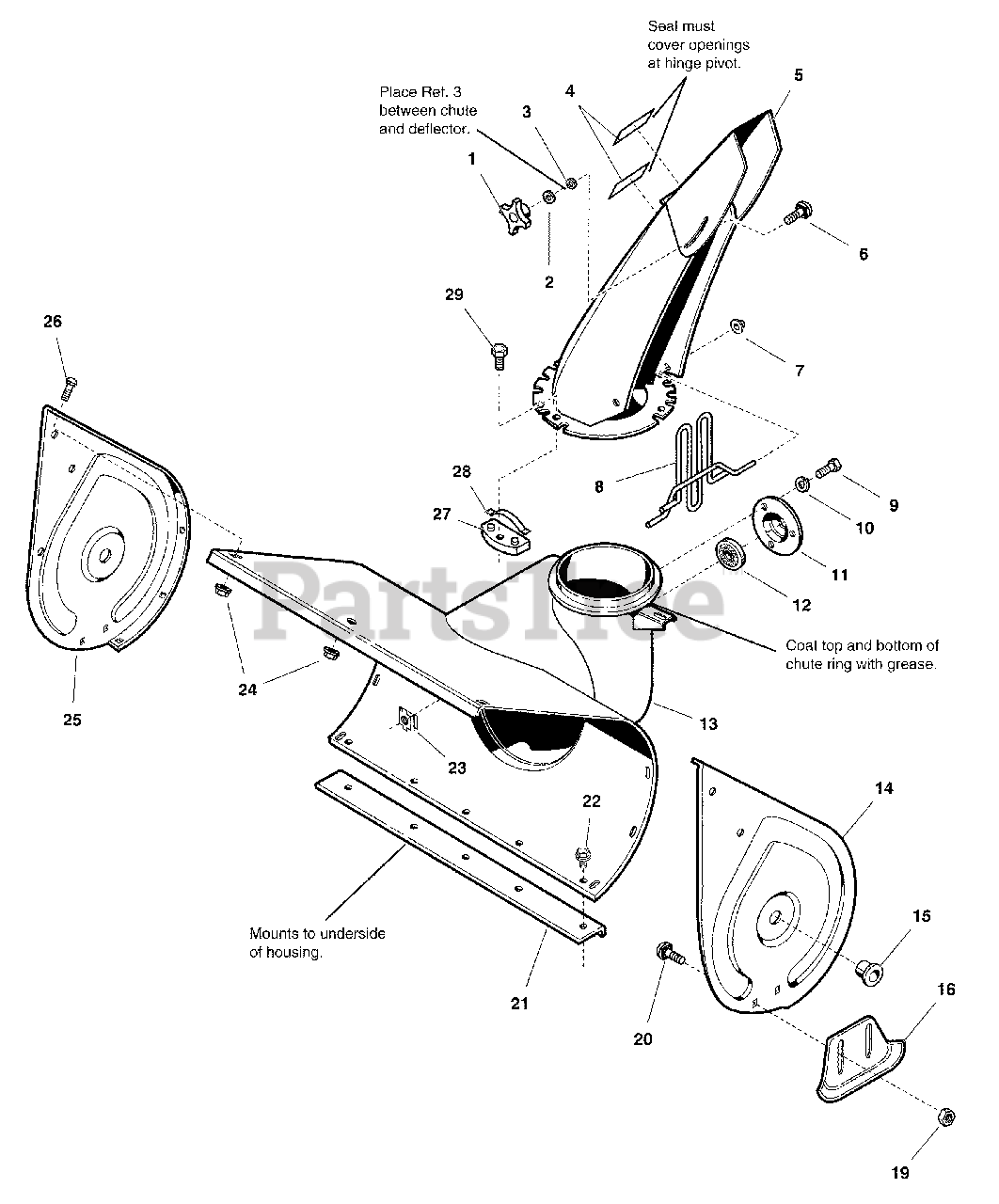

Auger Housing and Chute Group Parts Diagram

  • Title

1

Simplicity 1670578SM

KNOB

$13.99

$

In Stock, only 1 left!

0

2

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 18

0

3

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, Qty 5

0

4

Simplicity 1706085SM

DECAL, Hinge, Orange

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 1715115C

CHUTE & DEFLECTOR ASSEMBLY

$

$

Not available

6

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1960126SM

NUT, Push Pas, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

8

Simplicity 1612455SM

CHUTE, Guard

$45.99

$

Usually ships in 2-12 days

0

9

Simplicity 1925205SM

CAPSCREW, Hex Hd. 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

12

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

13

Simplicity 1722687C

HOUSING ASSEMBLY

$

$

Not available

14

Simplicity 1722649C

AUGER PLATE, L.H. End

$

$

Not available

15

Simplicity 1666001SM

BUSHING

$6.99

$

In Stock, only 2 left!

0

16

Simplicity 2177434C

SKID, Snowthrower (Set of 2 available under PN 1685501)

$

$

Not available

19

Simplicity 1960687SM

NUT, ESNA Flange, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1960711SM

CARRIAGE BOLT, Round Head Square Neck, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1675080A

BLADE, Scraper
(Superseded to 7600017SM)

$70.99

$

In Stock, only 1 left!

0

22

Simplicity 1929000SM

CAPSCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1930659SM

NUT, Retainer, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

24

Simplicity 1930641SM

NUT, Hex Flange, Whiz-Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1722650C

AUGER PLATE, R.H. End

$

$

Not available

26

Simplicity 1931315SM

CARRIAGE BOLT, 1/4-20 x 1/2
(Superseded to 703978)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1667865SM

SPRING, Flat

$10.99

$

In Stock, Qty 9

0

29

Simplicity 1960001SM

CAPSCREW, Hex Washer Hd., Plastite #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0
