75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Chassis Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

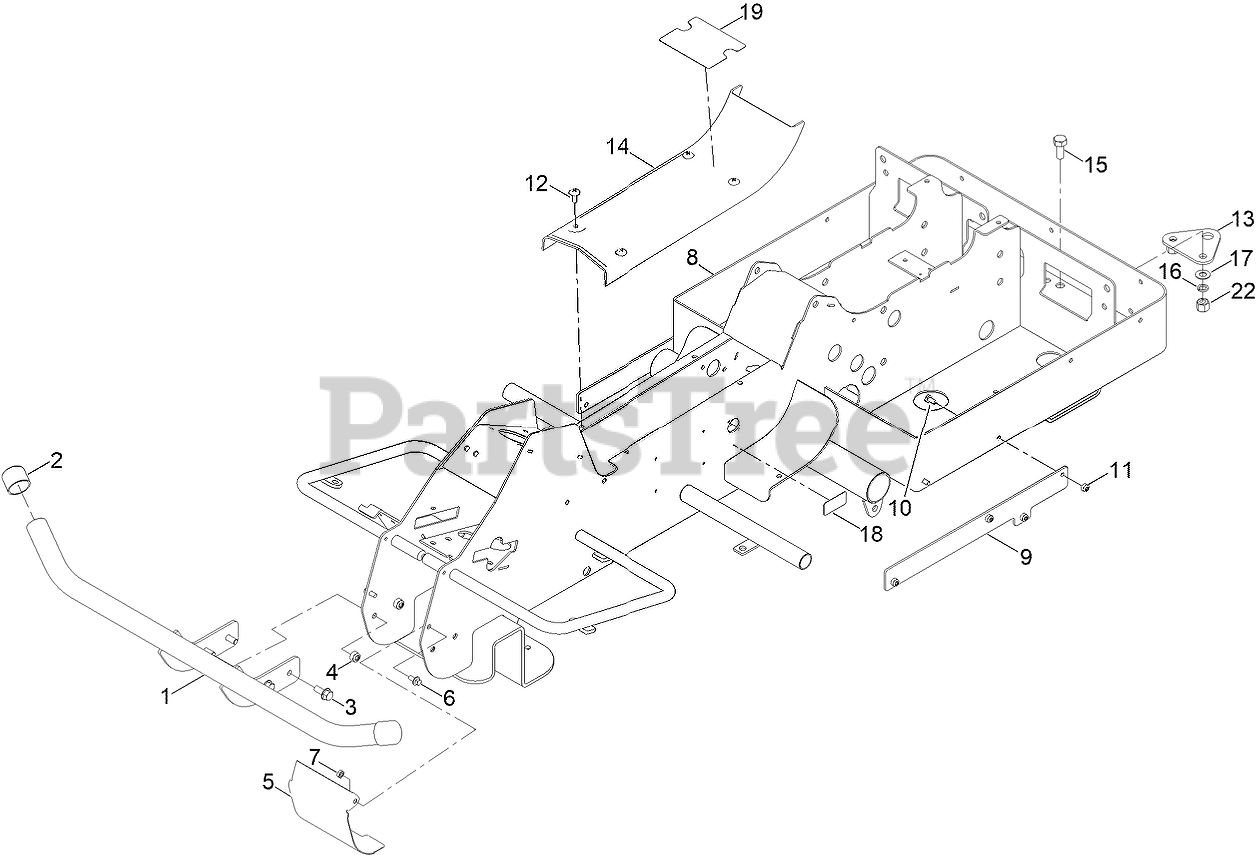

Chassis Assembly Parts Diagram

  • Title
1

Toro 134-6508

BUMPER BAR, ASM

$

$

Currently unavailable

2

Toro 134-5745

CAP, BUMPER BAR

$

$

Currently unavailable

3

Toro 134-3746

SCREW-HHF

$

$

Currently unavailable

4

Toro 09441

NUT-HEX, NI

$

$

Not available

5

Toro 134-5748

FRONT PLATE, MAIN CHASSIS

$

$

Currently unavailable

6

Toro 134-5749

BOLT, FLANGE

$

$

Currently unavailable

$

$

Currently unavailable

8

Toro 134-6297

CHASSIS ASM

$

$

Currently unavailable

9

Toro 134-5752

MOUNTS, SIDE PANNEL

$

$

Currently unavailable

10

Toro 09361

SCREW-HH

$

$

Currently unavailable

11

Toro 09438

NUT-NYLOC

$

$

Not available

12

Toro 134-5754

CAP BOLT

$

$

Currently unavailable

13

Toro 134-5755

TOW HITCH

$

$

Currently unavailable

14

Toro 134-5756

TOP COVER, CHASSIS

$

$

Currently unavailable

15

Toro 09395

SCREW-HH

$

$

Not available

16

Toro 09480

WASHER-LOCK

$

$

Not available

17

Toro 09479

WASHER-PLAIN

$

$

Not available

18

Toro 134-6026

DECAL - CHARGING PORT

$

$

Currently unavailable

19

Toro 134-6031

DECAL - DANGER

$

$

Currently unavailable

22

$

$

Currently unavailable
