75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Seat Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

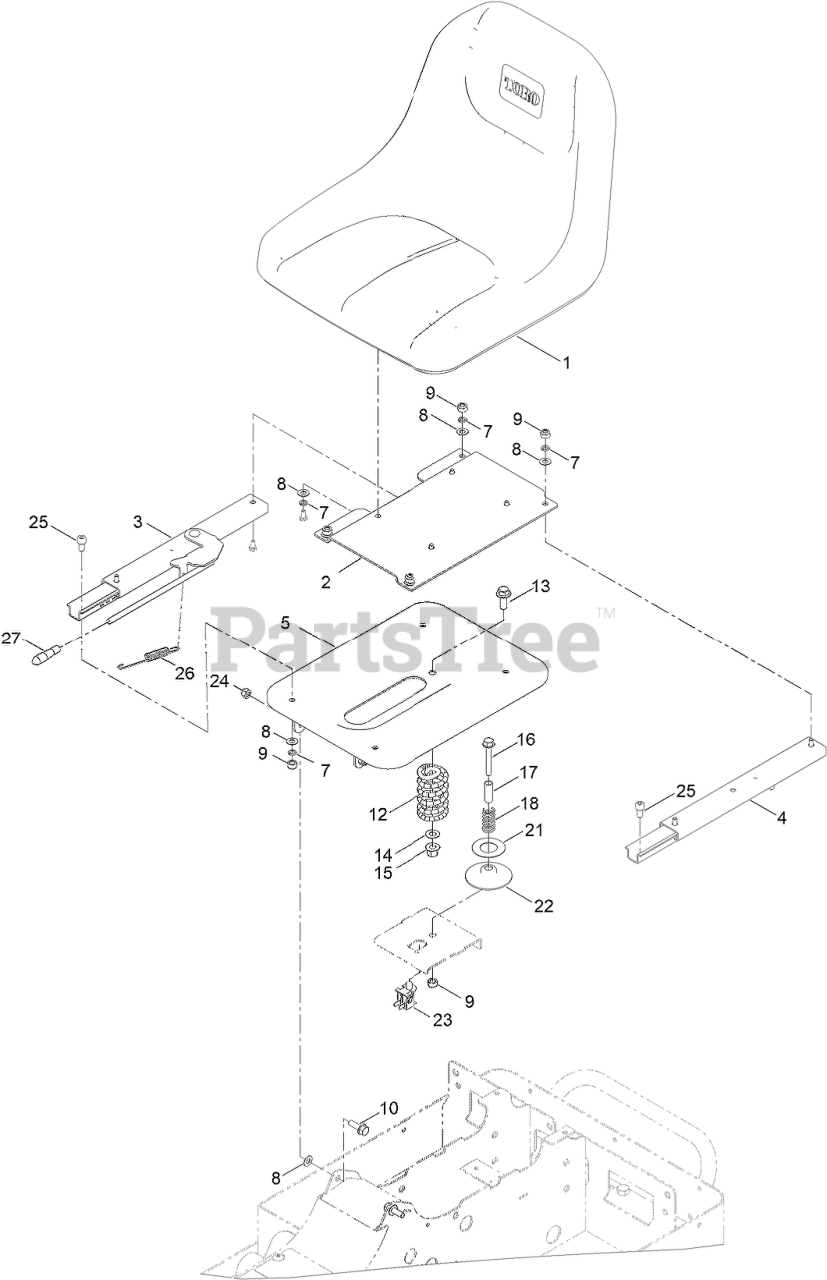

Seat Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 134-5930

MOUNTING PLATE, SEAT

$

$

Currently unavailable

3

Toro 134-6511

SEAT SLIDE ASM, RH

$

$

Currently unavailable

4

Toro 134-6510

SEAT SLIDE ASM, LH

$

$

Currently unavailable

5

Toro 134-6332

SEAT BASE, ASM

$

$

Currently unavailable

7

Toro 03469

WASHER-SPRING

$

$

Not available

8

Toro ZWP1H000U

WASHER-PLAIN

$

$

Currently unavailable

9

Toro 09441

NUT-HEX, NI

$

$

Not available

10

Toro 134-3747

SCREW-HHF

$

$

Currently unavailable

12

Toro 134-5940

SPRING, SEAT

$

$

Currently unavailable

13

Toro 134-3751

SCREW-HHF

$

$

Currently unavailable

14

Toro 09479

WASHER-PLAIN

$

$

Not available

15

Toro 134-3763

NUT-FLANGE, NI

$

$

Currently unavailable

16

Toro 134-3749

SCREW-HHF

$

$

Currently unavailable

17

Toro 134-5945

SHAFT, SPRING

$

$

Currently unavailable

18

Toro 134-5946

SMALL SPRING, SEAT

$

$

Currently unavailable

21

Toro 134-5949

WASHER

$

$

Currently unavailable

22

Toro 134-5950

PLATE, SPRING SEAT

$

$

Currently unavailable

23

Toro 134-5951

SEAT SENSOR

$

$

Currently unavailable

24

Toro 134-6335

NUT, SEAT

$

$

Currently unavailable

25

Toro 134-6334

BOLT SEAT, SLIDE MOUNT

$

$

Currently unavailable

26

Toro 134-5936

ADJUSTMENT SPRING, SEAT

$

$

Currently unavailable

27

Toro 134-5937

ADJUSTMENT LEVER CAP, SEAT

$

$

Currently unavailable
