75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Chassis and Grass Bag Assembly Parts Diagram

81cm Rear-Engine Riding Mower, 72V

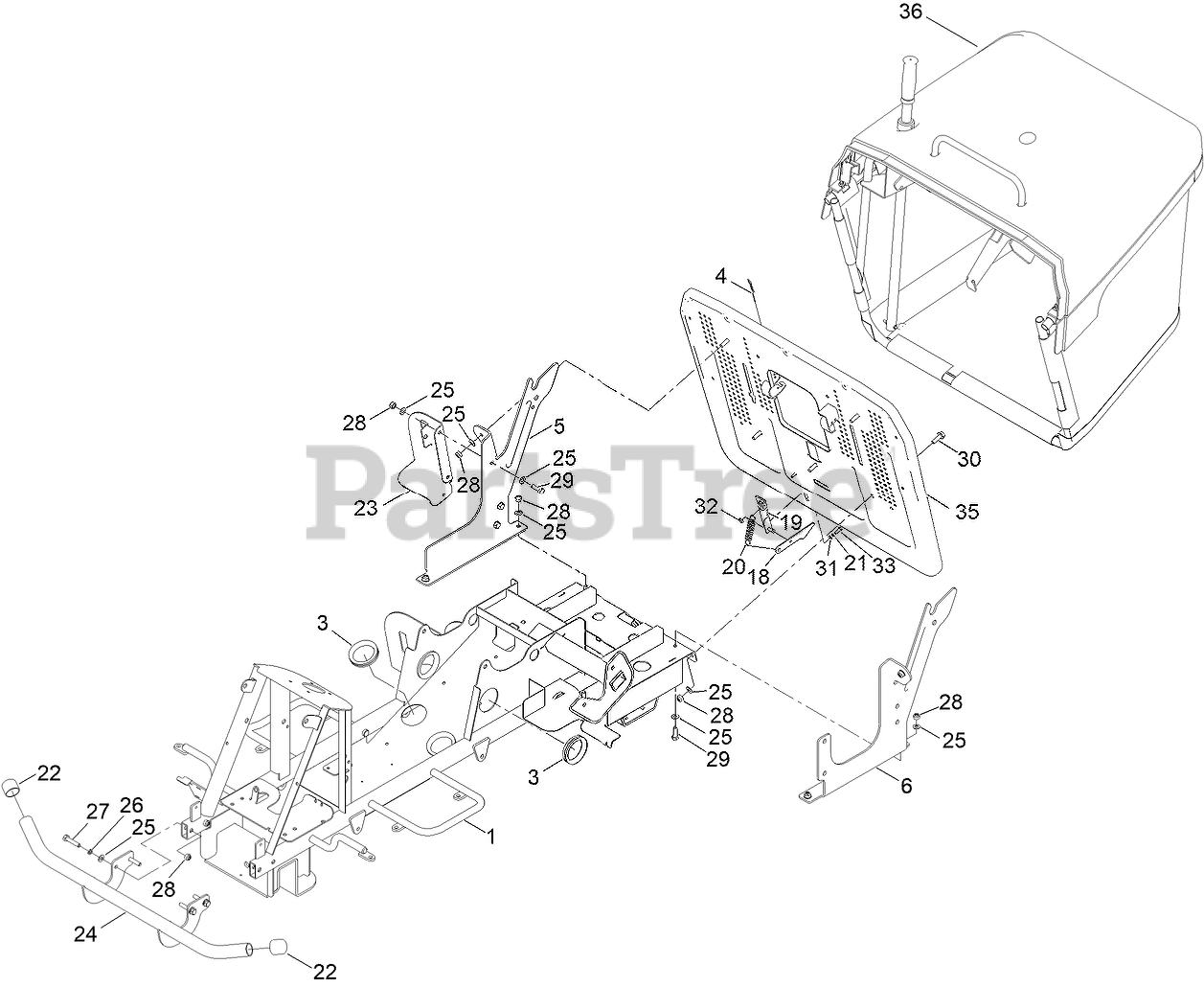

Chassis and Grass Bag Assembly Parts Diagram

  • Title
1

Toro 134-7135

CHASSIS, DIRECT COLLECT

$

$

Currently unavailable

3

Toro 134-7137

RUBBER RING

$

$

Currently unavailable

4

Toro 134-7138

PIN, CHUTE

$

$

Currently unavailable

5

Toro 134-7139

MOUNT, GRASSBAG

$

$

Currently unavailable

6

Toro 134-7140

MOUNT, GRASSBAG

$

$

Currently unavailable

18

Toro 134-7152

PLATE, LATCH (GRASSBAG)

$

$

Currently unavailable

19

Toro 134-7153

BRACKET, LATCH (GRASSBAG)

$

$

Currently unavailable

20

Toro 134-7154

SPRING, LATCH (GRASSBAG)

$

$

Currently unavailable

21

Toro 134-7155

SPRING WASHER

$

$

Currently unavailable

22

Toro 134-7156

CAP, BUMPER

$

$

Currently unavailable

23

Toro 134-7157

BRACKET, BATTERY

$

$

Currently unavailable

24

Toro 134-7158

BUMP BAR

$

$

Currently unavailable

25

Toro ZWP1H000U

WASHER-PLAIN

$

$

Currently unavailable

26

Toro 03469

WASHER-SPRING

$

$

Not available

27

Toro 09681

BOLT

$

$

Not available

28

Toro 09441

NUT-HEX, NI

$

$

Not available

29

Toro 03162

SCREW-HH

$

$

Not available

30

Toro 134-3747

SCREW-HHF

$

$

Currently unavailable

31

Toro 09470

WASHER

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Toro ZDH1E016U

SCREW-HH

$

$

Currently unavailable

35

Toro 134-7159

MOUNTING PLATE, GRASSBAG

$

$

Currently unavailable

36

Toro 134-7160

GRASS BAG ASM

$

$

Currently unavailable
