75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 323000001 - 323999999) (2023) Front Axle Assembly Parts Diagram

81cm Rear-Engine Riding Mower, 72V

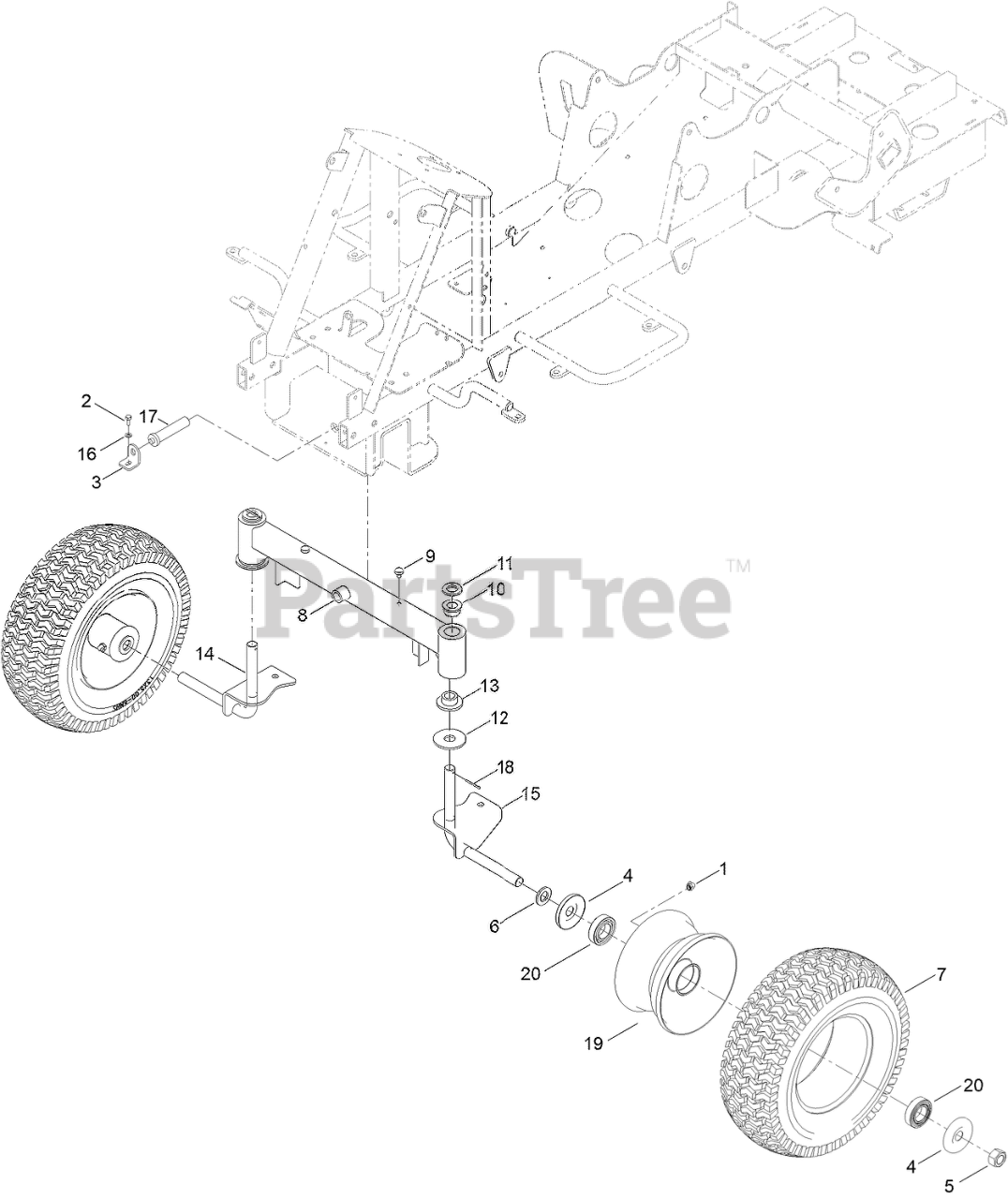

Front Axle Assembly Parts Diagram

  • Title
1

Toro 134-7202

GREASE NIPPLE 90

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Toro 134-7204

BRACKET, FRONT AXLE PIN

$

$

Currently unavailable

4

Toro 134-7205

COVER, WHEEL BEARING

$

$

Currently unavailable

5

Toro 134-7206

NUT, FRONT WHEEL

$

$

Currently unavailable

6

Toro 134-7213

WASHER (WHEEL)

$

$

Currently unavailable

7

Toro 134-6164

TYRE, WHEEL

$

$

Currently unavailable

8

Toro 134-6183

FRONT AXLE ASM

$

$

Currently unavailable

9

Toro 134-5808

STOPPER, FRONT AXLE TILT

$

$

Currently unavailable

10

Toro 134-5804

SMALL BUSH, AXLE

$

$

Currently unavailable

11

Toro 134-6450

WASHER

$

$

Currently unavailable

12

Toro 134-5802

WASHER

$

$

Currently unavailable

13

Toro 134-5803

LARGE BUSH, AXLE

$

$

Currently unavailable

14

Toro 134-7215

MOUNT, WHEEL (LH)

$

$

Currently unavailable

15

Toro 134-7216

MOUNT, WHEEL (RH)

$

$

Currently unavailable

16

Toro 09470

WASHER

$

$

Currently unavailable

17

Toro 134-5807

PIN, FRONT AXLE TILT

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Toro 134-7218

HUB, WHEEL (FRONT)

$

$

Currently unavailable

20

Toro 134-7219

BEARING, WHEEL (FRONT)

$

$

Currently unavailable
