75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 323000001 - 323999999) (2023) Grass Bag Assembly No. 134-7160 Parts Diagram

81cm Rear-Engine Riding Mower, 72V

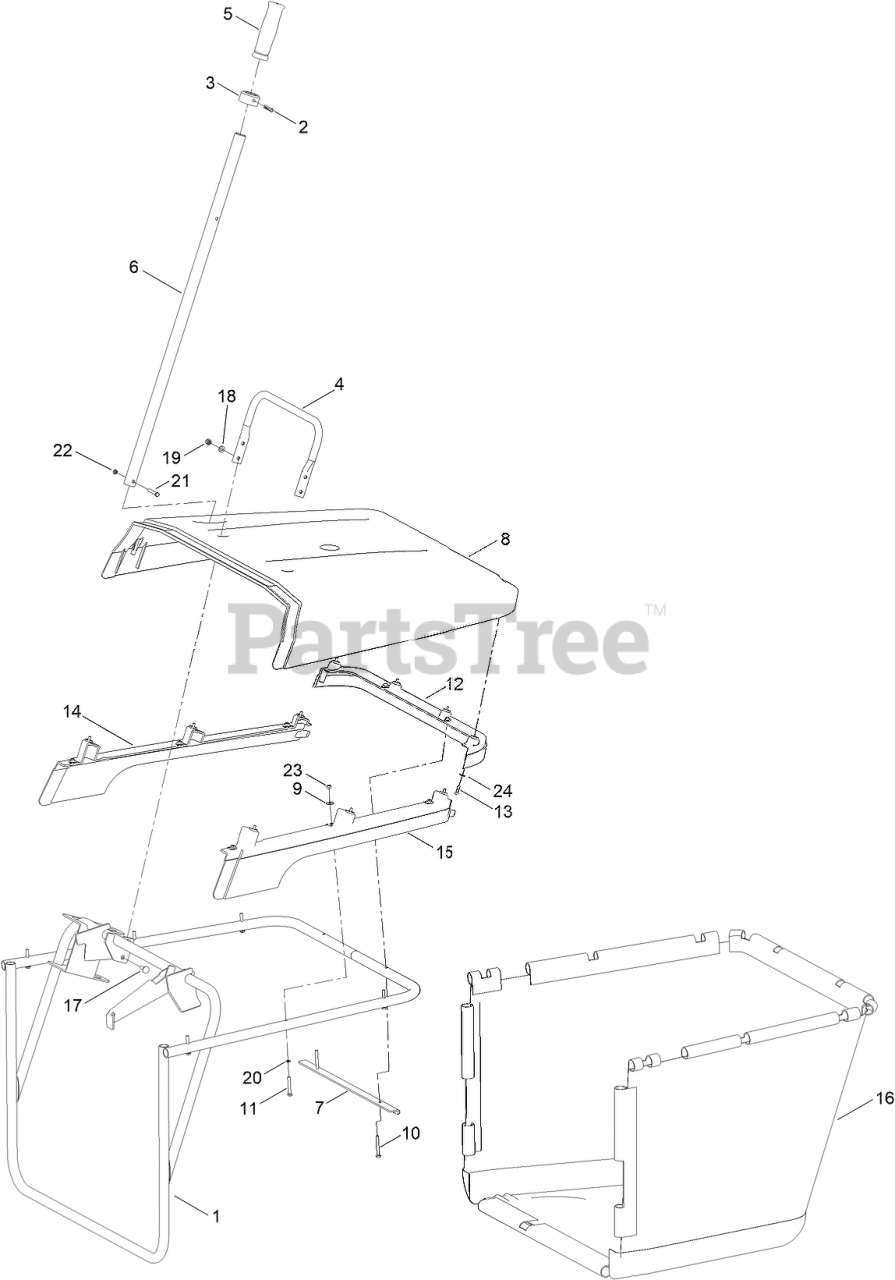

Grass Bag Assembly No. 134-7160 Parts Diagram

  • Title
1

Toro 134-7161

FRAME, GRASSBAG

$

$

Currently unavailable

2

Toro 134-7162

PIN, GRASSBAG LEVER

$

$

Currently unavailable

3

Toro 134-7163

SLEEVE, GRASSBAG LEVER

$

$

Currently unavailable

4

Toro 134-7164

HANDLE

$

$

Currently unavailable

5

Toro 134-7165

LEVER HANDLE

$

$

Currently unavailable

6

Toro 134-7166

LEVER BAR

$

$

Currently unavailable

7

Toro 134-7167

PLATE, HOLDING

$

$

Currently unavailable

8

Toro 134-7168

COVER, TOP

$

$

Currently unavailable

9

Toro 134-7169

WASHER

$

$

Currently unavailable

10

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Toro 134-7172

COVER, REAR TOP

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Toro 134-7174

COVER, LH

$

$

Currently unavailable

15

Toro 134-7175

COVER, RH

$

$

Currently unavailable

16

Toro 134-7176

FABRIC, GRASSBAG

$

$

Currently unavailable

17

Toro 09668

BOLT-COACH

$

$

Not available

18

Toro ZWP1F000U

WASHER-PLAIN

$

$

Currently unavailable

19

Toro 09438

NUT-NYLOC

$

$

Not available

20

Toro 09470

WASHER

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Toro 09746

NUT-LOCK

$

$

Currently unavailable

23

Toro 09430

NUT-NYLOC

$

$

Not available

24

Toro 134-5880

WASHER

$

$

Currently unavailable
