75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 323000001 - 323999999) (2023) Grassbag Electrical Assembly Parts Diagram

81cm Rear-Engine Riding Mower, 72V

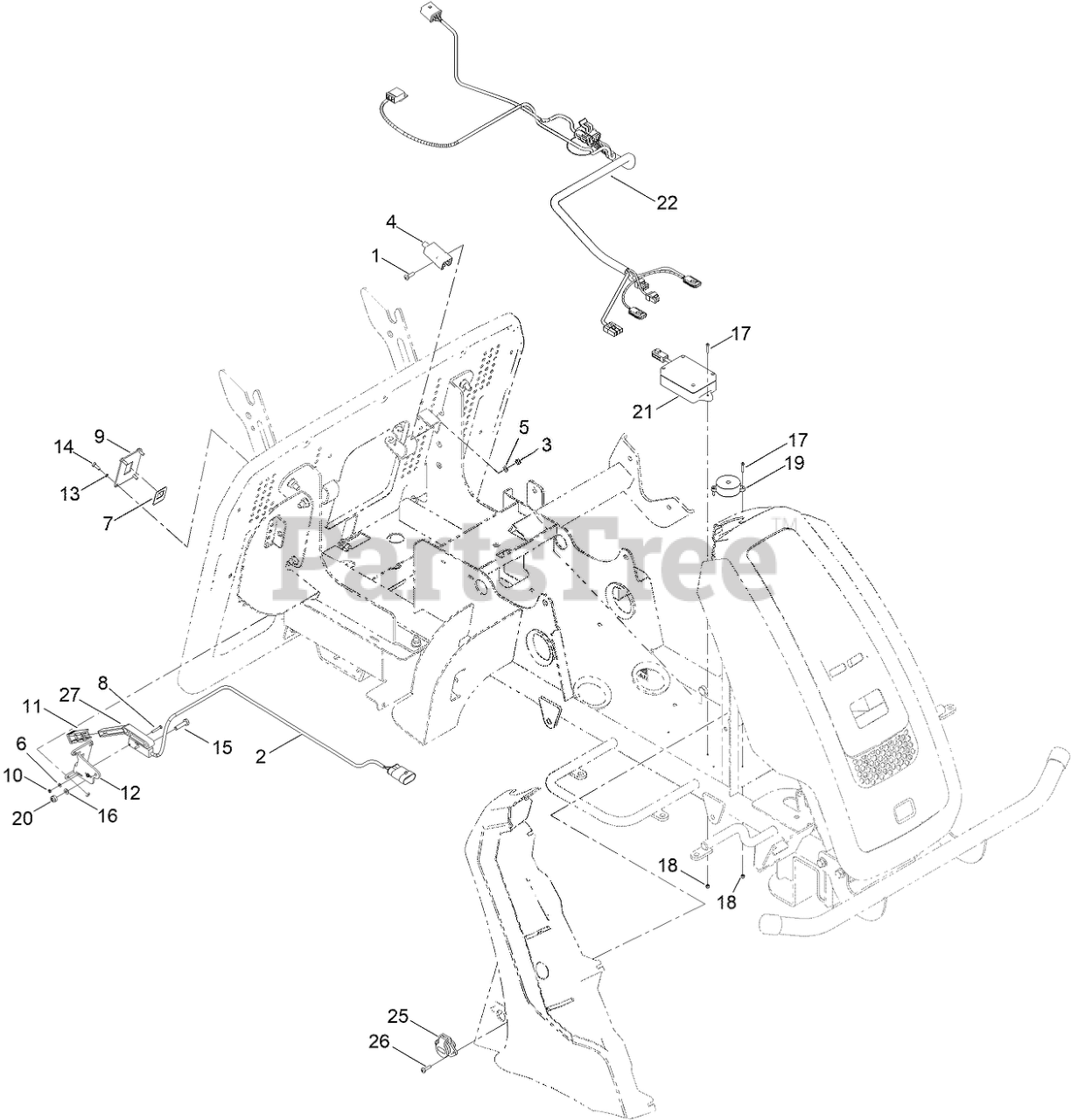

Grassbag Electrical Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 134-7681

SWITCH, GRASSBAG FULL

$

$

Currently unavailable

$

$

Currently unavailable

4

Toro 134-7226

SENSOR, GRASSBAG INTERLOCK

$

$

Currently unavailable

5

Toro 134-7227

WASHER

$

$

Currently unavailable

6

Toro 134-7228

WASHER

$

$

Currently unavailable

7

Toro 134-7229

PLATE, GRASSBAG FULL

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 134-7231

PLATE, GRASSBAG FULL

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 134-7233

EXTENDER, GRASSBAG FULL

$

$

Currently unavailable

12

Toro 134-7234

BRACKET, GRASSBAG FULL

$

$

Currently unavailable

13

Toro 134-7235

WASHER

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 09364

SCREW-HH

$

$

Not available

16

Toro 09470

WASHER

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Toro HY09698

NUT-NYLOC

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Toro 09438

NUT-NYLOC

$

$

Not available

21

Toro 134-7683

CONTROL BOX, DISPLAY

$

$

Currently unavailable

22

Toro 134-7684

WIRING HARNESS (CONNECTION)

$

$

Currently unavailable

25

Toro 134-7689

PORT, CHARGING

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Toro 134-7147

INDICATOR LEVER

$

$

Currently unavailable
