75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 323000001 - 323999999) (2023) Steering Rack Assembly No. 134-6201 Parts Diagram

81cm Rear-Engine Riding Mower, 72V

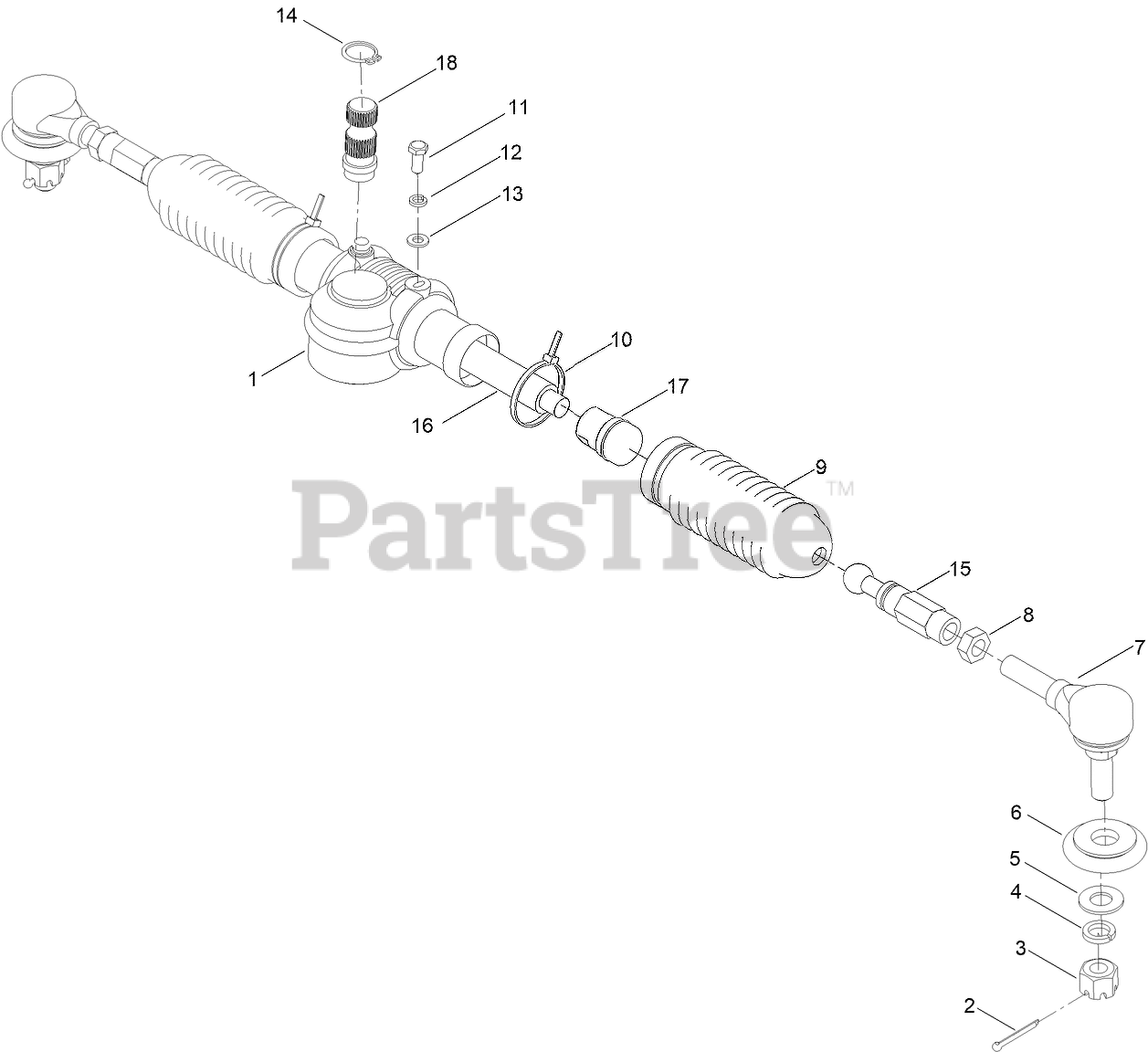

Steering Rack Assembly No. 134-6201 Parts Diagram

  • Title
1

Toro 134-5846

STEERING RACK

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Toro 09480

WASHER-LOCK

$

$

Not available

5

Toro 09479

WASHER-PLAIN

$

$

Not available

6

Toro 134-5843

COVER, MOUNTING (STEERING RACK)

$

$

Currently unavailable

7

Toro 134-5844

CONNECTION, STEERING

$

$

Currently unavailable

8

Toro 134-5845

NUT, ADJUSTMENT

$

$

Currently unavailable

9

Toro 134-5847

COVER, STEERING COVER

$

$

Currently unavailable

10

Toro 134-5848

ZIPTIE

$

$

Currently unavailable

11

Toro ZDH1E012U

SCREW-HH

$

$

Currently unavailable

12

Toro 09644

WASHER-SPRING

$

$

Not available

13

Toro 09470

WASHER

$

$

Currently unavailable

14

Toro 134-5856

CLIP, STEERING RACK

$

$

Currently unavailable

15

Toro 134-6341

CON, TIE ROD

$

$

Currently unavailable

16

Toro 134-6411

TIE ROD, MAIN

$

$

Currently unavailable

17

Toro 134-6412

END, TIE ROD

$

$

Currently unavailable

18

Toro 134-6413

SHAFT, STEERING RACK

$

$

Currently unavailable
