75518 (181-124K033) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Ace Hardware)

Walk-Behind Mower, Electric

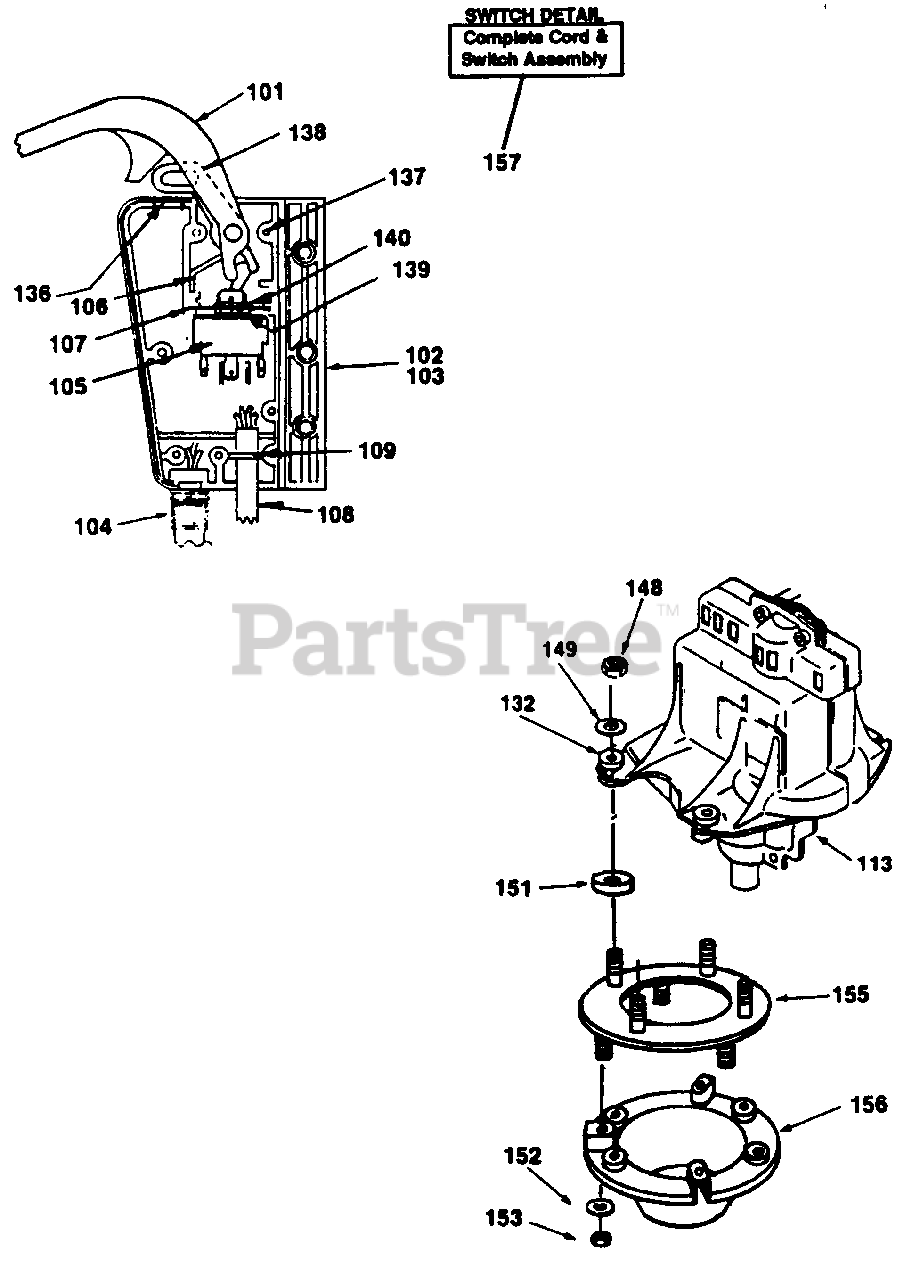

75518 (181-124K033) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Ace Hardware) > Parts Diagrams (2) > Parts

  • Title
725-1594

101

Handle - Switch

Part# 725-1594

OEM Warranty Repair Part for MTD

Not available

725-1593

102

Housing - Upper Half

Part# 725-1593

OEM Warranty Repair Part for MTD

Currently unavailable

725-1592

103

Housing - Lower Half

Part# 725-1592

OEM Warranty Repair Part for MTD

Not available

729-0316

104

Plug Assembly

Part# 729-0316

OEM Warranty Repair Part for MTD

Not available

725-1591

105

Switch

Part# 725-1591

OEM Warranty Repair Part for MTD

Not available

732-0666

106

Spring - Switch Handle

Part# 732-0666

OEM Warranty Repair Part for MTD

Currently unavailable

725-1596

107

Switch Mount Plate

Part# 725-1596

OEM Warranty Repair Part for MTD

Not available

629-0002

108

Cord Assembly

Part# 629-0002

OEM Warranty Repair Part for MTD

Currently unavailable

725-1595

109

Cord Restraint

Part# 725-1595

OEM Warranty Repair Part for MTD

Currently unavailable

624-0017

113

Complete Motor & Switch Ass'y.

Part# 624-0017

OEM Warranty Repair Part for MTD

Currently unavailable

731-1216

132

Insulator- Motor Housing

Part# 731-1216

OEM Warranty Repair Part for MTD

Not available

721-0281

136

Hole plug

Part# 721-0281

OEM Warranty Repair Part for MTD

Currently unavailable

710-1172

137

Screw - Switch Box

Part# 710-1172

Note: (Special)

OEM Warranty Repair Part for MTD

Not available

725-1597

138

Interlock Trigger

Part# 725-1597

OEM Warranty Repair Part for MTD

Not available

736-0192

139

Washer

Part# 736-0192 (Superseded to 936-0192)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-0444

140

Nut

Part# 712-0444

Note: (Special)

OEM Warranty Repair Part for MTD

Currently unavailable

712-0324

148

Nut 1/4-20 Locking

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.48

736-3090

149

Flatwasher 1/4"

Part# 736-3090

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.31

731-1175

151

Spacer

Part# 731-1175

OEM Warranty Repair Part for MTD

Not available

736-0461

152

Flatwsher 5/16"

Part# 736-0461

OEM Warranty Repair Part for MTD

Not available

712-0429

153

Nut 5/16-18 Locking

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.65

682-9004

155

Motor Mounting Plate Ass'y

Part# 682-9004

OEM Warranty Repair Part for MTD

Not available

720-0262

156

Motor Shield

Part# 720-0262

OEM Warranty Repair Part for MTD

Currently unavailable

818-60138

157

Cord & Switch Box Ass'y. (Complete)

Part# 818-60138

OEM Warranty Repair Part for MTD

Currently unavailable
