7555 M (1694836) - Simplicity 22" Snow Thrower, 7.5hp Chute Crank Control Group (4248ccc) Parts Diagram

22" Snow Thrower, 7.5hp

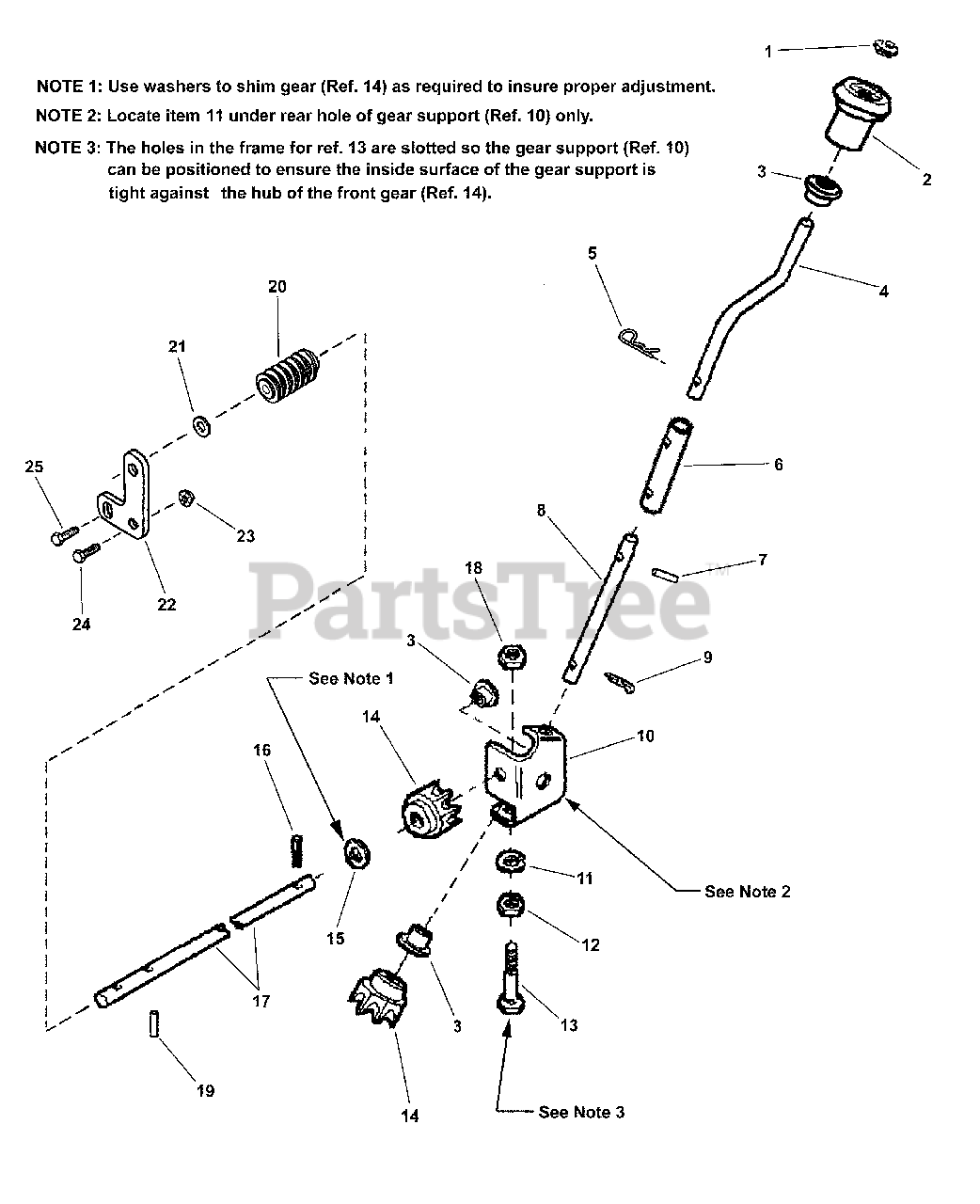

Chute Crank Control Group (4248ccc) Parts Diagram

  • Title

1

Simplicity 1960093SM

PUSH NUT, Pal. .375 Dia. Stud Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

2

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, Qty 5

0

3

Simplicity 1667588SM

BUSHING, .376 x .437 x .20

$5.99

$

In Stock, Qty 15

0

4

Simplicity 7028152SM

ROD, Chute, Upper

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960074SM

CLIP, .093 Dia. Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1720577SM

SPLICE, Chute Handle

$17.99

$

Usually ships in 2-12 days

0

7

Simplicity 1926228SM

SPRING PIN, .156 x 1.000

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 1726939SM

ROD, Chute Lower

$28.99

$

Usually ships in 2-12 days

0

9

Simplicity 1918452SM

COTTER PIN, .125 x 1.00
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 1718793SM

BRACKET, Universal Gear

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921319SM

WASHER, .250 (.27 ID x .62 OD)
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

12

Simplicity 1960518SM

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 14

0

13

Simplicity 1960252SM

BOLT, 1/4-20 x 5/8" Short Square Neck Carriage, GR 5

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 1718593SM

GEAR, Universal

$14.99

$

In Stock, Qty 20+

0

15

Simplicity 1960103SM

WASHER, 3/8" Flat- Black

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 2816168SM

SPRING PIN, .125 x .750

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 7028159SM

WORM SHAFT

$9.49

$

Usually ships in 2-12 days

0

18

Simplicity 1960294SM

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 7014001SM

ROLL PIN, 1/8 x 3/4"

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 7028348SM

WORM

$22.99

$

Usually ships in 2-12 days

0

21

Simplicity 7011724SM

WASHER, .44 x .78 x .025 Curved
(Superseded to 703940)

$4.49

$

In Stock, Qty 11

0

22

Simplicity 7028162SM

BRACKET, Worm

$15.99

$

Usually ships in 2-12 days

0

23

Simplicity 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 7091122SM

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0
