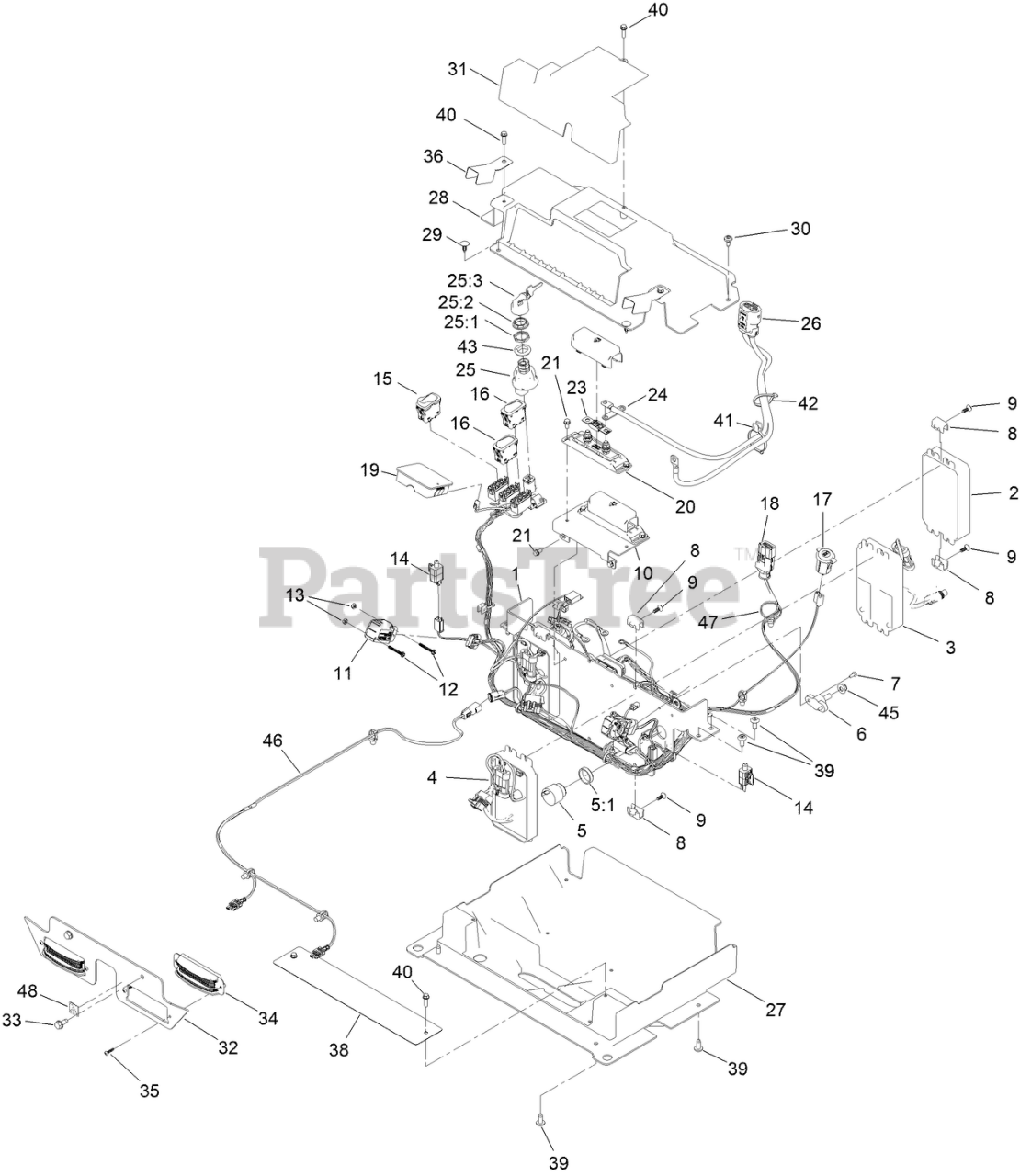

75642 (eMR 4275) - Toro 42" eTimeCutter Zero-Turn Mower (SN: 400000000 - 416299999) Electrical Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 147-7667-03

MOUNT-CONTROLLERS

$71.99

$

Usually ships in 0 days

0

2

Toro 147-7631

CONTROLLER-MASTER

$414.99

$

Usually ships in 0 days

0

3

Toro 147-7635

CONTROLLER-TRACTION

$414.99

$

Usually ships in 0 days

0

4

Toro 147-7633

CONTROLLER-DECK

$414.99

$

Usually ships in 0 days

0

5

Toro 80-9330

AUDIO ALARM ASM

$155.99

$

Usually ships in 3-6 days

0

5:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

6

Toro 110-8823

BLOCK-JUNCTION

$54.99

$

Usually ships in 3-6 days

0

7

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 18

0

8

Toro 145-0586

CLIP-CONTROLLER

$0.99

$

Usually ships in 0 days

0

9

Toro 138-5775

SCREW-DELTA POINT

$5.99

$

Usually ships in 0 days

0

10

Toro 147-5200-03

MOUNT-HOLDER, FUSE

$21.99

$

Usually ships in 0 days

0

11

Toro 140-8373

SENSOR

$193.99

$

Usually ships in 0 days

0

12

Toro 147-7729

SCREW-HWH

$0.99

$

Usually ships in 0 days

0

13

Toro 147-7730

NUT-HEX NI

$0.99

$

Usually ships in 0 days

0

14

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

15

Toro 139-6368

SWITCH-ROCKER, ON-NONE-ON

$36.99

$

In Stock, Qty 11

0

16

Toro 145-0467

SWITCH-ROCKER ON- NONE- ON

$27.99

$

Usually ships in 0 days

0

17

Toro 140-7955

PORT-POWER, USB

$38.99

$

Usually ships in 3-6 days

0

18

Toro 139-6393

HARNESS-WIRE, 2 BLADE

$1240.99

$

Usually ships in 0 days

0

19

Toro 147-2198

DISPLAY

$137.99

$

Usually ships in 0 days

0

20

Toro 145-4958

HOLDER-FUSE

$30.99

$

Usually ships in 3-6 days

0

21

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

23

Toro 122-2559

FUSE-100 AMP

$17.99

$

Usually ships in 0 days

0

24

Toro 147-5340

BUSBAR-2, SWITCH

$16.99

$

Usually ships in 0 days

0

25

Toro 122-2513

SWITCH-IGNITION, SUNS

$34.99

$

Usually ships in 3-6 days

0

25:1

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

25:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$2.49

$

Usually ships in 0 days

0

25:3

Toro 121-5162

SET-KEY, IGNITION

$36.99

$

In Stock, only 2 left!

0

26

Toro 147-7584

HARNESS-WIRE, POWER CABLE

$206.99

$

Usually ships in 0 days

0

27

Toro 147-7668

COVER-BOTTOM

$67.99

$

Usually ships in 0 days

0

28

Toro 147-7670

COVER-CONTROLLER

$35.99

$

Usually ships in 0 days

0

29

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

30

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

31

Toro 147-7680

COVER-OUTER

$17.99

$

Usually ships in 0 days

0

32

Toro 139-7488-01

MOUNT-HEAD LIGHTS

$45.99

$

Usually ships in 3-6 days

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 139-5825

ASM-LIGHT,LED

$45.99

$

Usually ships in 3-6 days

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 147-7681-03

COVER-SENSOR

$10.99

$

Usually ships in 0 days

0

38

Toro 147-7719-03

COVER-WIRE

$18.99

$

Usually ships in 0 days

0

39

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 11

0

40

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

41

Toro 32180-078

CLIP-EDGE

$6.49

$

Usually ships in 3-6 days

0

42

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

43

Toro 145-7110

ADAPTER-SWITCH, KEY

$3.99

$

Usually ships in 0 days

0

45

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

46

Toro 147-8762

HARNESS-WIRE, LED LIGHTS

$80.99

$

Usually ships in 0 days

0

47

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0
