75642 (eMR 4275) - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416300000 - 417299999) Caster Wheel Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

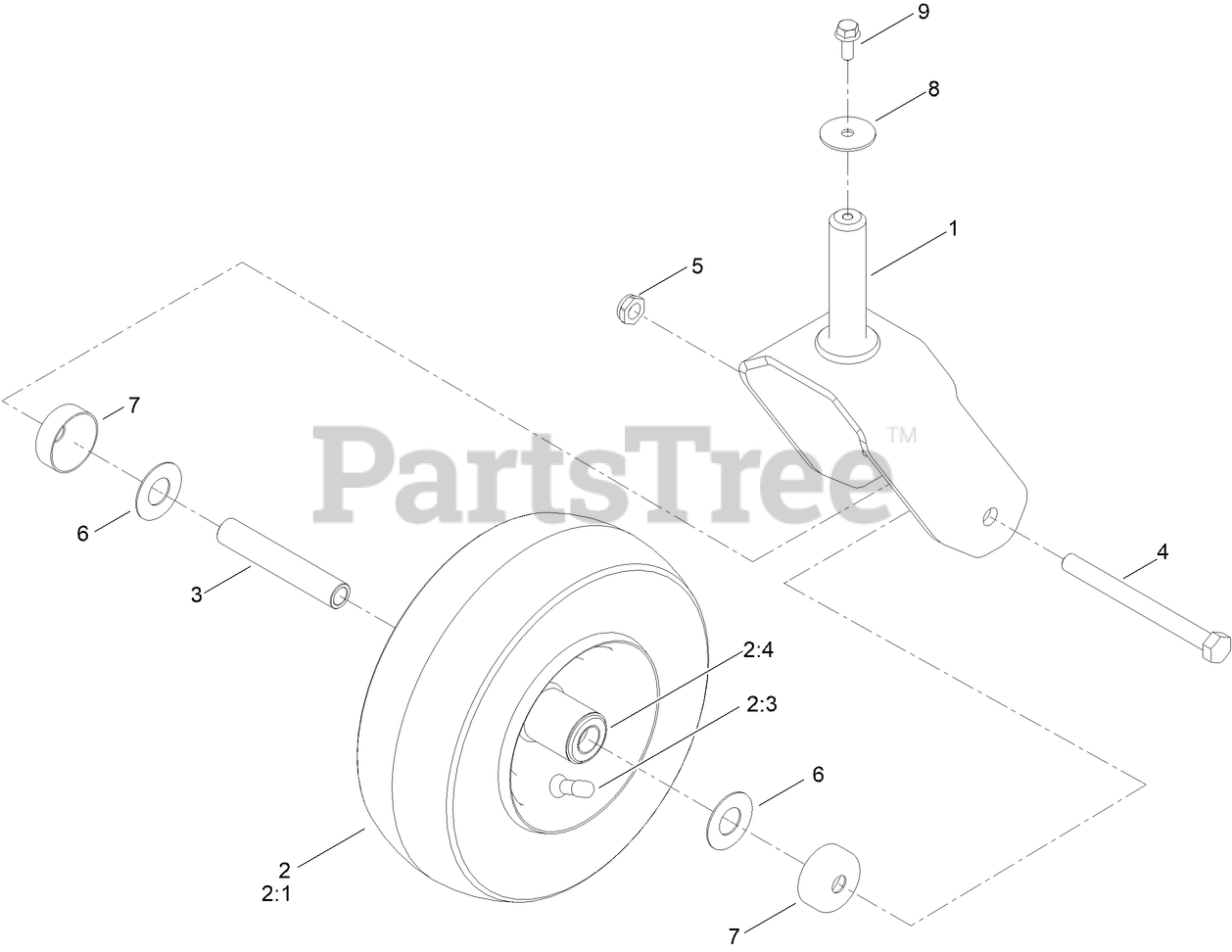

Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 139-3274-01

FORK ASM

$66.99

$

In Stock, only 2 left!

0

2

Toro 147-5203

TIRE ASM

$76.99

$

Usually ships in 0 days

0

2:1

Toro 147-2936

TIRE

$52.99

$

In Stock, only 3 left!

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.49

$

In Stock, Qty 5

0

2:4

Toro 136-4190

BEARING

$13.99

$

In Stock, Qty 12

0

2:99

Toro 105-0844

TUBE-INNER

Note: Not illustrated

$49.99

$

In Stock, only 1 left!

0

3

Toro 147-7593

SPACER-SPANNER

$15.99

$

Usually ships in 0 days

0

4

Toro 139-2607

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

5

Toro 139-2617

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

6

Toro 136-5590

WASHER

$1.49

$

In Stock, Qty 5

0

7

Toro 138-7208

GUARD-SEAL

$2.99

$

Usually ships in 3-6 days

0

8

Toro 115-1151

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

9

Toro 139-2598

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
