75642 (eMR 4275) - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416300000 - 417299999) Frame Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

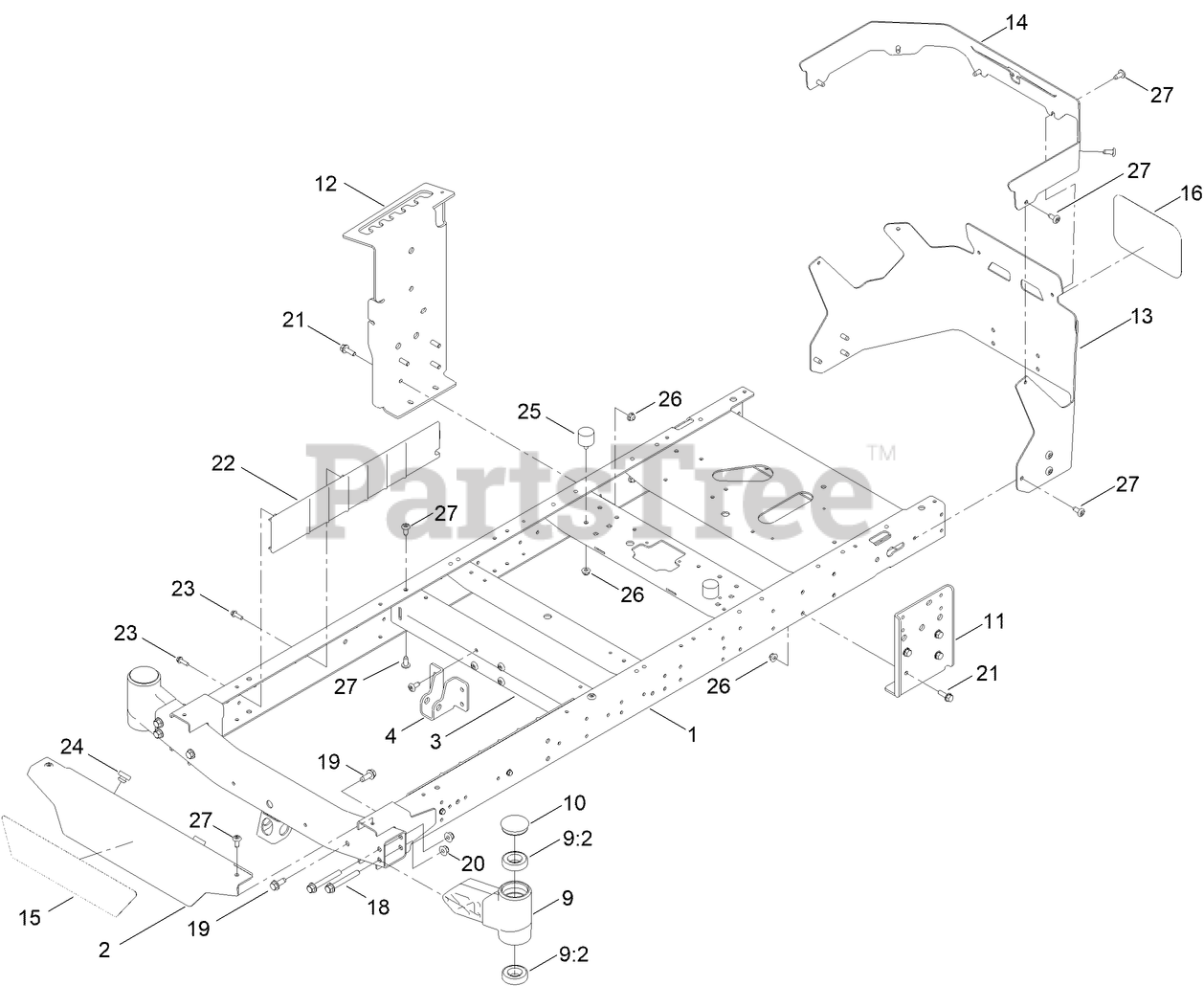

Frame Assembly Parts Diagram

  • Title

1

Toro 147-3005-01

FRAME ASM [RED]

$547.99

$

Usually ships in 0 days

0

2

Toro 138-7596-07

FOOTREST

$54.99

$

Usually ships in 0 days

0

3

Toro 138-2527-01

BRACE-CROSS, LOWER

$41.99

$

Usually ships in 3-6 days

0

4

Toro 139-3260-01

BRACKET-MOUNT DAMPER, LOWER

$14.99

$

Usually ships in 3-6 days

0

9

Toro 140-2098

AXLE STUB ASM

$63.99

$

Usually ships in 3-6 days

0

9:2

Toro 109-3678

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

10

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 2 left!

0

11

Toro 145-0415-01

PLATE-MOUNT, DRIVE

$37.99

$

Usually ships in 0 days

0

12

Toro 145-0416-01

PLATE-MOUNT, MR DRIVE

$85.99

$

Usually ships in 0 days

0

13

Toro 147-5205-07

GUARD-REAR

$117.99

$

Usually ships in 0 days

0

14

Toro 147-7579-01

GUARD-REAR, UPPER

$63.99

$

Usually ships in 0 days

0

15

Toro 147-7640

DECAL-ETIMECUTTER

$74.99

$

Usually ships in 0 days

0

16

Toro 145-1978

DECAL-LOGO, SILVER

$8.99

$

Usually ships in 3-6 days

0

18

Toro 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

19

Toro 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

21

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 138-7516

GUARD-RAIL

$15.99

$

Usually ships in 3-6 days

0

23

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

24

Toro 140-3460

BUMPER-RUBBER

$1.49

$

Usually ships in 3-6 days

0

25

Toro 137-4803

BUMPER-RUBBER

$4.99

$

Usually ships in 3-6 days

0

26

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 15

0

27

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 13

0
