75755 TA (MX 5075) - Toro 50" TimeCutter Zero-Turn Mower (SN: 407600000 - 409299999) Fuel Pod Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

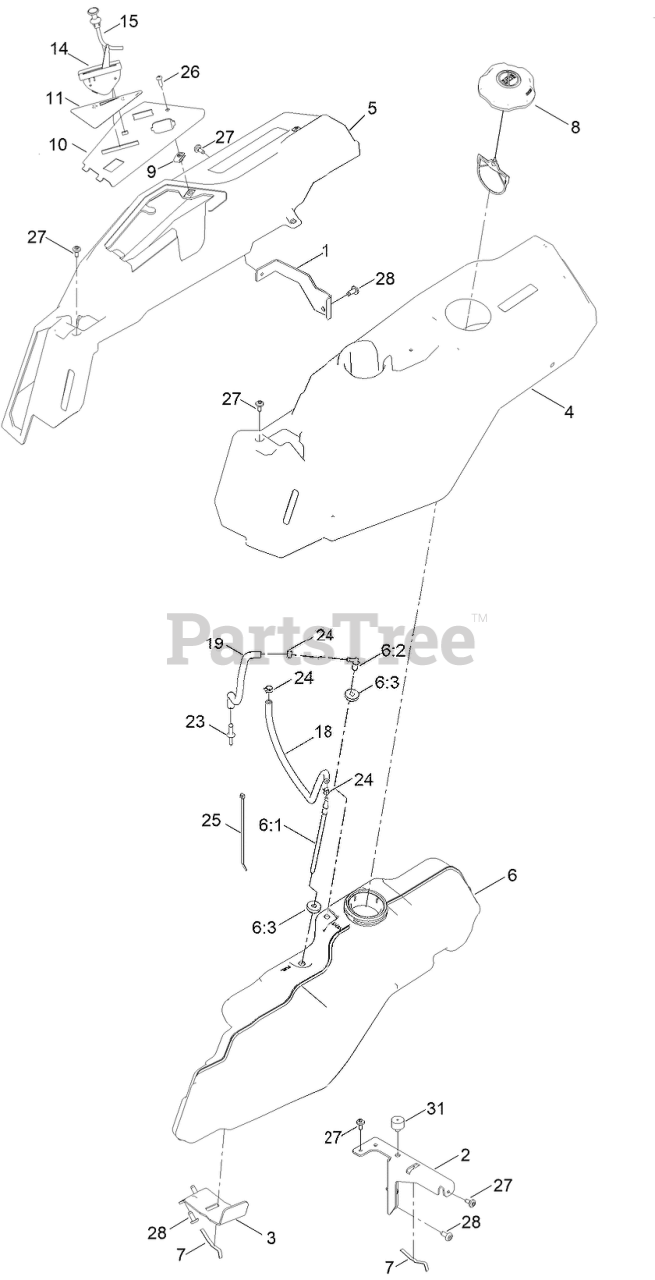

Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 138-9810-03

BRACKET-POD

$11.99

$

Usually ships in 3-6 days

0

2

Toro 138-6071-03

SUPPORT-POD, LH

$19.99

$

Usually ships in 3-6 days

0

3

Toro 139-3271-03

SUPPORT-TANK, FUEL

$10.99

$

Usually ships in 3-6 days

0

4

Toro 138-6074

POD-LH

$71.99

$

In Stock, only 1 left!

0

5

Toro 139-2404

POD-RH, MYRIDE

$71.99

$

Usually ships in 3-6 days

0

6

Toro 138-6072

FUEL TANK ASM

$193.99

$

In Stock, only 3 left!

0

6:1

Toro 139-1091

CONNECTOR-ELBOW, 90 DEG

$9.49

$

In Stock, only 2 left!

0

6:2

Toro 117-7400

FITTING-PLASTIC

$7.49

$

In Stock, Qty 11

0

6:3

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

7

Toro 609830

SPRING

$5.99

$

In Stock, Qty 11

0

8

Toro 137-4119

CAP-FUEL, RATCHETING

$30.99

$

In Stock, Qty 20+

0

9

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Toro 139-2380-03

PANEL - CONTROL

$25.99

$

Usually ships in 3-6 days

0

11

Toro 139-2391

DECAL-PANEL, CONTROL

$5.99

$

In Stock, only 2 left!

0

14

Toro 139-2403

CABLE-THROTTLE
(Superseded to 147-7695)

$37.99

$

Usually ships in 3-6 days

0

15

Toro 139-2402

CABLE-CHOKE

$25.99

$

In Stock, Qty 5

0

18

Toro 108-4582

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

19

Toro 109-0294

HOSE-FUEL

$7.49

$

Usually ships in 3-6 days

0

23

Toro 117-5399

ADAPTOR-ORIFICE

$3.99

$

In Stock, only 2 left!

0

24

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

26

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

28

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

31

Toro 120-7893

BUMPER-GROMMET

$5.99

$

Usually ships in 3-6 days

0
