75841 - Toro 42" eTimeCutter Zero-Turn Mower (SN: 400000000 - 416399999) 42in Deck Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

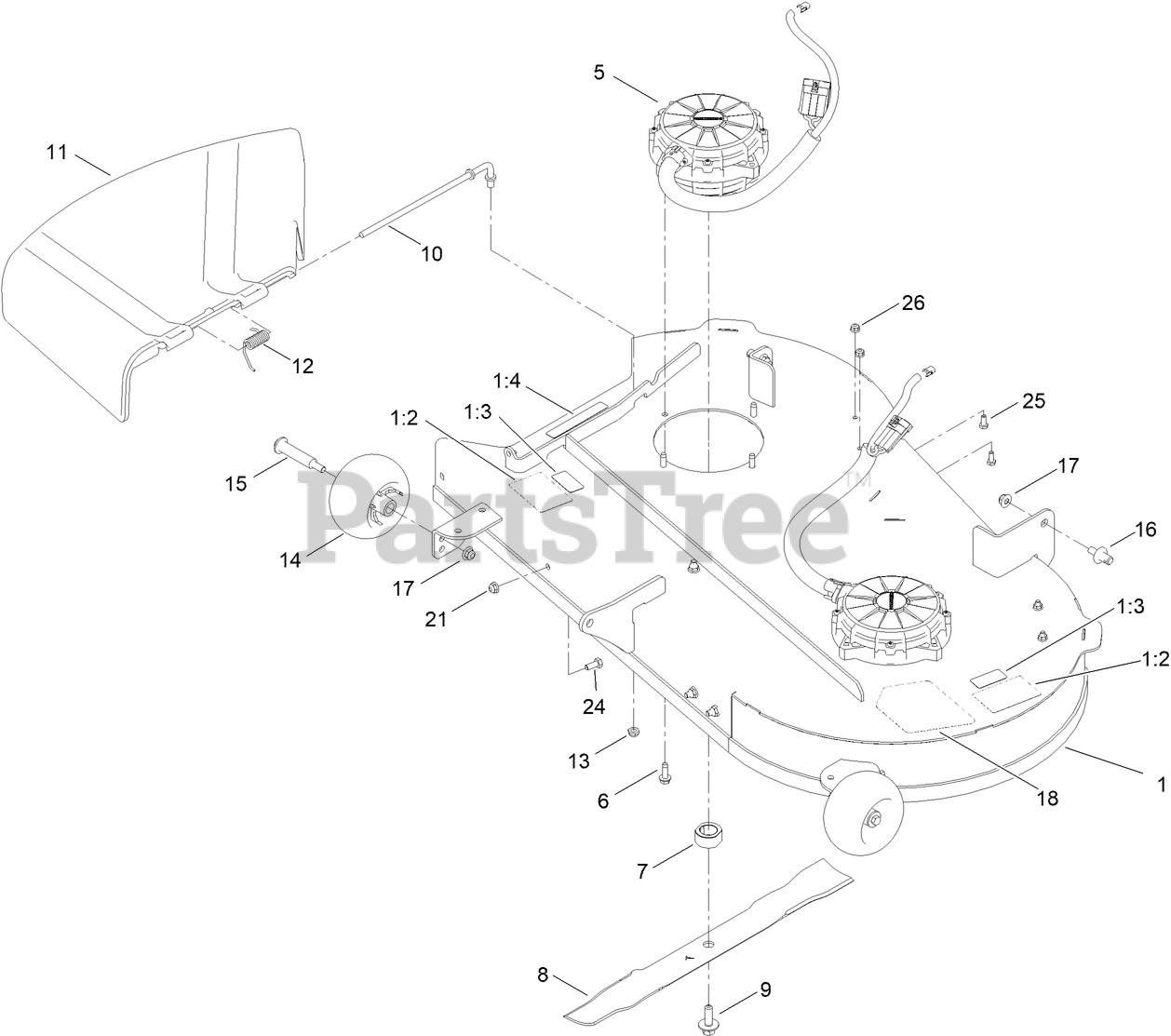

42in Deck Assembly Parts Diagram

  • Title

1

Toro 147-7654

42 IN DECK AND DECAL ASM

$800.99

$

Usually ships in 0 days

0

1:2

Toro 147-7615

DECAL-DANGER, DECK

$5.49

$

Usually ships in 0 days

0

1:3

Toro 137-8127

DECAL-NO SPRAY

$6.49

$

Usually ships in 0 days

0

1:4

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

5

Toro 140-8379

MOTOR-DECK

$533.99

$

Usually ships in 0 days

0

6

Toro 136-7174

SCREW-THD ROLL, HWH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 140-8361

DRIVER-BLADE

$12.99

$

Usually ships in 0 days

0

9

Toro 145-0411

BOLT-BLADE, SEMS

$3.99

$

In Stock, Qty 20+

0

10

Toro 137-2019

ROD-PIVOT

$13.99

$

In Stock, Qty 6

0

11

Toro 138-7502

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 20+

0

12

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

13

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

15

Toro 139-2551

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

16

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 20+

0

17

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 6

0

18

Toro 147-7562

DECAL-IRON FORGED, 42

$6.99

$

Usually ships in 0 days

0

21

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 7

0

24

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0
