759-04089 - Cub Cadet Rollback Service Kit Boom Assembly & Bearing Boxes Parts Diagram

Rollback Service Kit

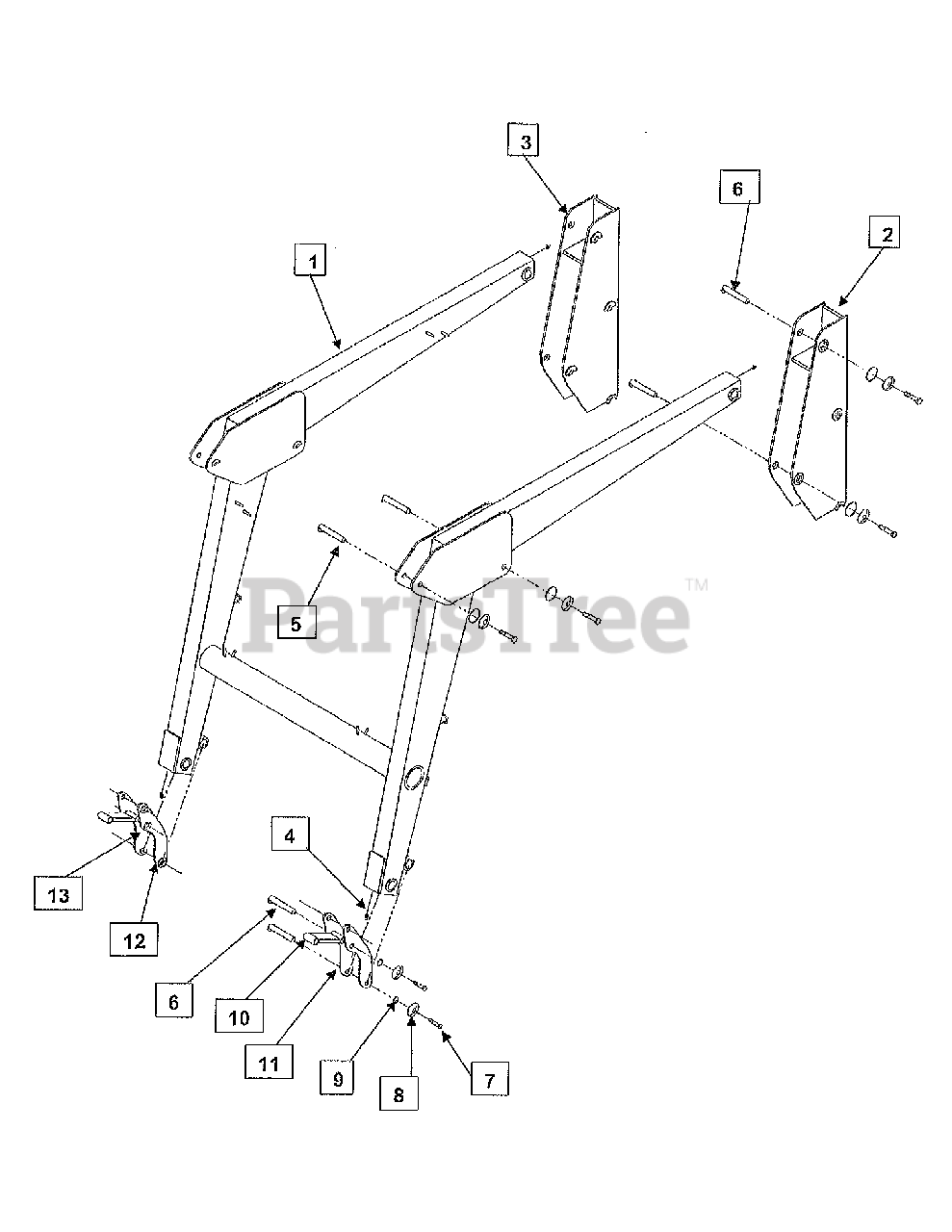

Boom Assembly & Bearing Boxes Parts Diagram

  • Title

1

Cub Cadet KD-1100-3009

Boom Assembly

$

$

Not available

2

Cub Cadet KD-1002-3017

Bearing Box, LH

$

$

Not available

3

Cub Cadet KD-1002-3018

Bearing Box, RH

$

$

Not available

4

Cub Cadet KD-0530-1038

Grease Fitting

$

$

Not available

5

Cub Cadet KD-0550-3012

Pivot Pin, 1" x 82mm

$

$

Not available

6

Cub Cadet KD-0550-3013

Pivot Pin, 1" x 99mm

$

$

Not available

7

Cub Cadet N/A

Hex Head Cap Screw, 5/16" x 3/4"

Note: Not serviced, Purchase Locally

$

$

Currently unavailable

8

Cub Cadet KD-0541-3002

Dust Cover

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KD-0520-3000

O-Ring

$

$

Not available

10

Cub Cadet KD-1108-3033

Bucket Linkage Assembly

$

$

Not available

11

Cub Cadet KD-1108-3034

Boom Linkage Assembly, LH

$

$

Not available

12

Cub Cadet KD-1108-3035

Boom Linkage Assembly, RH

$

$

Not available

13

Cub Cadet KD-1108-3036

Boom Linkage

$

$

Not available
