75969 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 403100000 - 404319999) Subframe Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

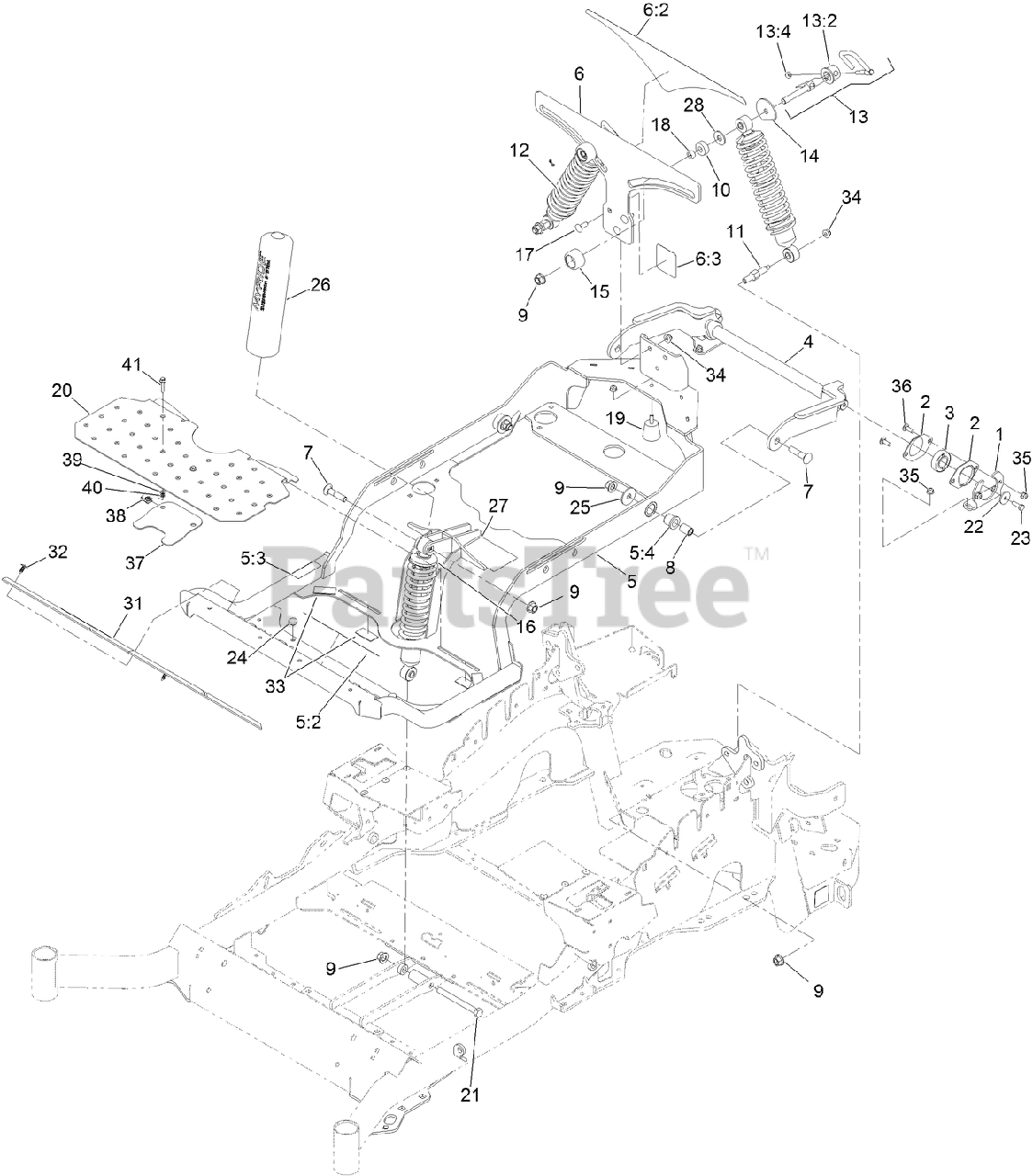

Subframe Assembly Parts Diagram

  • Title

1

Toro 127-6759-03

BRACKET-BEARING

$25.99

$

Usually ships in 3-6 days

0

2

Toro 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

3

Toro 1-653346

BEARING

$79.99

$

In Stock, Qty 14

0

4

Toro 127-6754-03

ARM-TRAILING

$298.99

$

Usually ships in 3-6 days

0

5

Toro 132-5057

SUBFRAME ASM

$1164.99

$

Usually ships in 3-6 days

0

5:2

Toro 132-0871

DECAL-DANGER

$10.99

$

In Stock, only 2 left!

0

5:3

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

5:4

Toro 127-6745

BUSHING-FLANGE

$12.99

$

Usually ships in 3-6 days

0

6

Toro 133-1808

BRACKET-MOUNTING

$214.99

$

Usually ships in 3-6 days

0

6:2

Toro 132-5067

DECAL-ADJUSTMENT, RIDE

$27.99

$

Usually ships in 3-6 days

0

6:3

Toro 132-5063

DECAL-LOCK, CAM

$5.99

$

Usually ships in 3-6 days

0

7

Toro 127-6768

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

8

Toro 127-6751

SPACER-ALUMINUM

$9.99

$

Usually ships in 3-6 days

0

9

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 11

0

10

Toro 131-8801

SPACER

$9.49

$

Usually ships in 3-6 days

0

11

Toro 131-6348

BOLT-SHOULDER

$17.99

$

Usually ships in 3-6 days

0

12

Toro 133-1815

SHOCK/SPRING ASM

$143.99

$

In Stock, only 2 left!

0

13

Toro 131-8843

CAM LOCK ASM

$37.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-1644

CAP-LOCK

$44.99

$

Usually ships in 3-6 days

0

13:4

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

14

Toro 131-4646

PLATE-STOP

$5.99

$

Usually ships in 3-6 days

0

15

Toro 131-4647

KNOB-FRONT

$19.99

$

Usually ships in 3-6 days

0

16

Toro 136-1719

SHOCK ASM-FRONT

$143.99

$

Usually ships in 3-6 days

0

16

Toro 136-8993

SHOCK/SPRING ASM

$190.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 47-7270

BEARING-NEEDLE

$34.99

$

In Stock, only 2 left!

0

19

Toro 132-5058

BUMPER-RUBBER

$13.99

$

Usually ships in 3-6 days

0

20

Toro 132-5089-01

FLOORPAN
(Superseded to 144-0381-01)

$47.99

$

Usually ships in 3-6 days

0

21

Toro 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

22

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 19

0

23

Toro 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

25

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

26

Toro 132-5068

COVER-SHOCK

$11.99

$

Usually ships in 3-6 days

0

27

Toro 125-9383

DECAL-SERVICE AID

$27.99

$

Usually ships in 3-6 days

0

28

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

31

Toro 133-1810

MAT-FLOOR

$62.99

$

Usually ships in 3-6 days

0

32

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

33

Toro 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

34

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

37

Toro 119-0395-03

ADAPTER-CAPTIVE

$25.99

$

Usually ships in 3-6 days

0

38

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

39

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

40

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

41

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
