76 (0350009) - Cub Cadet Lawn Tractor Fuel Tank & Related Parts Parts Diagram

Lawn Tractor

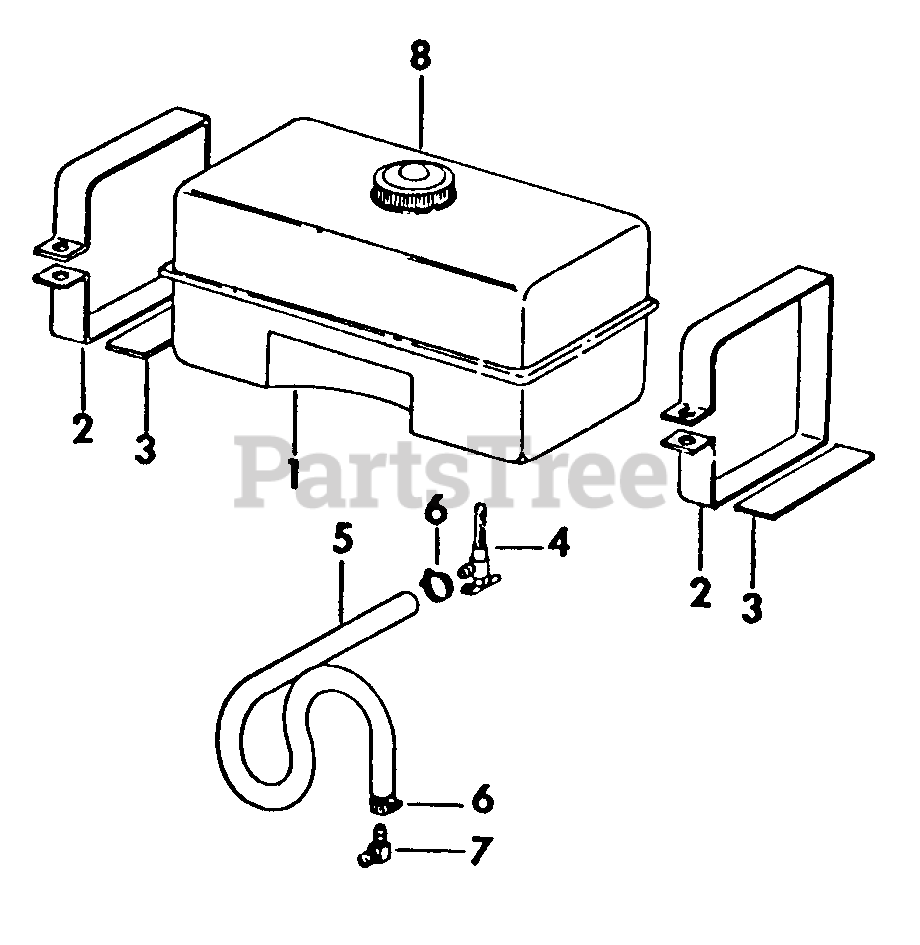

Fuel Tank & Related Parts Parts Diagram

  • Title

1

Cub Cadet 751-3025

Tank w/Cap, Fuel

$

$

Currently unavailable

2

Cub Cadet 703-0331

Strap, Gas Tank

$

$

Not available

Screw, 1/4-20 X 1-1/4 C-Z Slt Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

3

Not used in this application

$

$

Not available

4

Cub Cadet 751-3015

Valve, Shut Off
(Superseded to 951-3015)

$30.99

$

In Stock, only 4 left!

0

5

Hose

Note: (Use 18.3 inches of 1/2 hose from bulk roll marked 759-3330)

$

$

Not available

6

Cub Cadet IH-210511-R1

Clamp, No. 8 Hose

$

$

Not available

7

Cub Cadet IH-401967-1

Connector, Fuel Line

$

$

Currently unavailable

8

Cub Cadet IH-59062-C1

Cap, Fuel Tank

$

$

Currently unavailable
