76 (0350009) - Cub Cadet Lawn Tractor Starting-For Electric Start Parts Diagram

Lawn Tractor

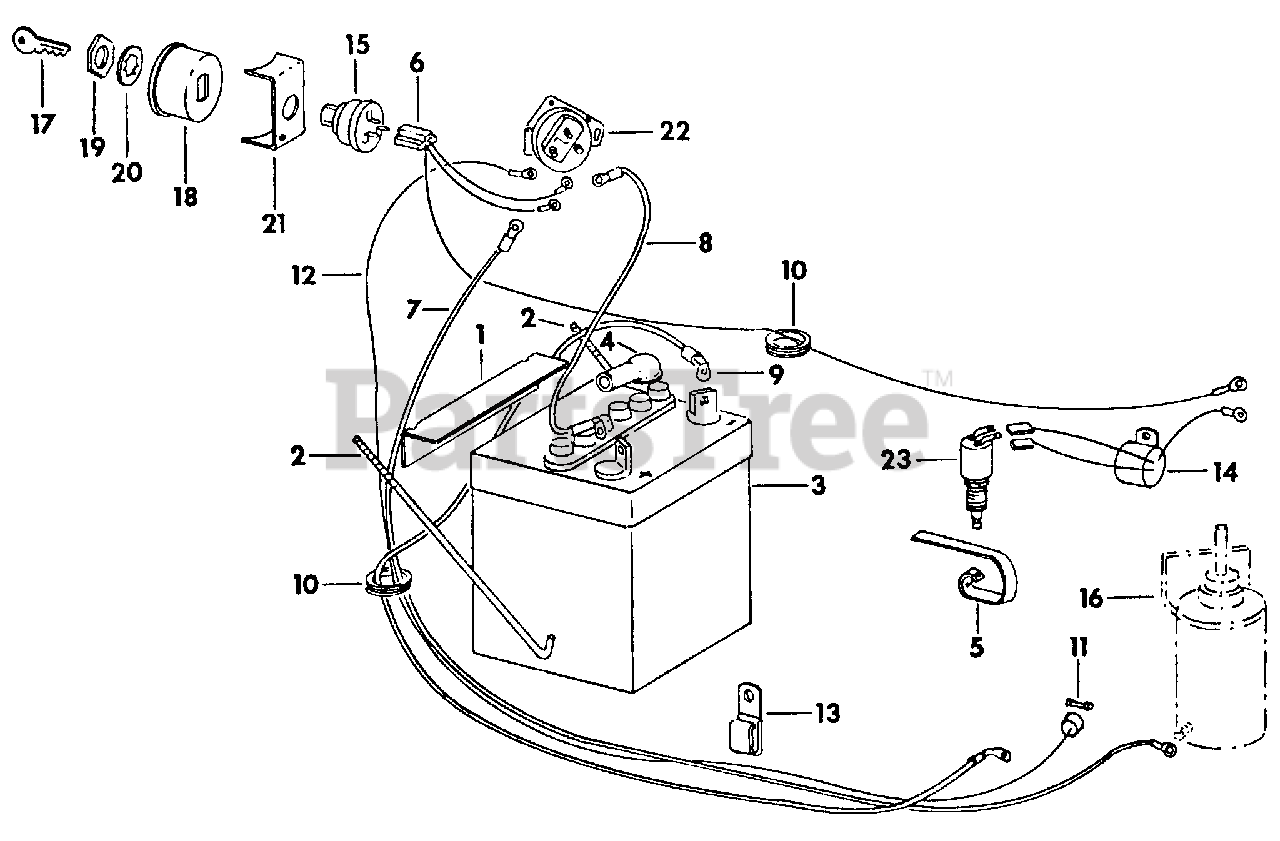

Starting-For Electric Start Parts Diagram

  • Title

1

Cub Cadet 703-0311

Clamp, Battery Hold Down

$

$

Not available

2

Cub Cadet 747-3042

Bolt, Battery Hold Down

$

$

Not available

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$6.49

$

In Stock, Qty 9

0

Cub Cadet KH-X-276-7

Nut, 1/4-20 Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

3

Cub Cadet 725-3029

Battery, IH Low Maintenance, 12 Volt

$

$

Currently unavailable

4

Cub Cadet IH-364910-R1

Cover, Battery Terminal

$

$

Currently unavailable

5

Cub Cadet 732-3024

Spring, Neutral Start

$

$

Not available

Cub Cadet 715-0247

Pin, 3/16 X 1 Med Coiled Spring
(Superseded to 915-0247)

$

$

Not available

6

~NLA

Harness Assy, Cable

Note: (Machines w/o neutral starting)

$

$

Not available

Cub Cadet 725-3030

Harness Assy, Cable

Note: (Machines w/neutral starting)

$

$

Not available

7

Cub Cadet 725-3031

Cable Assy, Magnetic Switch to Starter

$

$

Not available

8

Cub Cadet 725-3032

Cable Assy, Battery to Magnetic Switch

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16 X 3/4 Znd Short Sq Nk Crg

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-539398-R1

Cable Assy, Battery to Ground

$

$

Not available

Screw, 1/4-20 X 3/4 Znd Sq Nk Crg

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Washer, 1-7/16 X 5/8 X .049 Znd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 735-3009

Grommet

$

$

Not available

11

Cub Cadet IH-539399-R1

Fuse

$

$

Not available

12

Cub Cadet IH-539400-R1

Cable Assy, Fuse to Magnetic Switch

$

$

Not available

13

Cub Cadet 726-3019

Clip, Cable Harness

$

$

Currently unavailable

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Washer, 11/32 X 9/16 X 16 Ga C-Z

Note: (Common Hardware, Purchase Locally)

$

$

Not available

14

Cub Cadet IH-549945-R1

Module Assy, Control

$

$

Not available

Screw, 8-32 X 3/8 Znd Hex Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-607893-R1

Washer, 13/64 X 1/2 X 16 Ga C-Z

$

$

Currently unavailable

Cub Cadet 712-0142

Nut, 8-32 Znd Hex

$4.49

$

In Stock, Qty 12

0

Screw, 8-32 X 1/2 Znd Truss Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, No. 8 Int Ext Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

15

Cub Cadet IH-488509-R1

Switch, Ignition & Starting

$

$

Not available

16

Starting Motor

Note: (For components see list of parts under starter motor)

$

$

Not available

17

Cub Cadet IH-382458-R2

Key, Ignition Switch
(Superseded to IH-131313-C2)

$11.99

$

In Stock, only 2 left!

0

18

Cub Cadet IH-402238-R1

Socket, Ignition Switch

$

$

Currently unavailable

19

Cub Cadet IH-365502-R1

Nut, Ignition Switch

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-375431-R1

Washer, Ignition Switch

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet IH-402239-R1

Retainer, Ignition Switch

$

$

Not available

22

Cub Cadet 725-3001

Switch, Magnetic
(Superseded to 925-3001)

$54.99

$

In Stock, Qty 12

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0722

Washer, No. 10 Znd Reg Lock

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0349

Nut, 10-32 Znd Hex

$4.49

$

In Stock, Qty 5

0

Screw, 1/4-20 X 5/8 Znd Cr Rec Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 725-3038

Switch Assy, Neutral Starting
(Superseded to 925-3038)

$75.99

$

Usually ships in 3-6 days

0
